Removal and Cleaning of Tube Clamps

The tube clamp mechanism can be removed from the roller pump for cleaning.
To clean the tube clamp assembly:
1. Use a flat head screwdriver (provided with Accessory Kit) to loosen the two
screws that hold the tube clamp to the pump head.
2. Remove the tube clamp assembly from the pump.
3. Immerse the tube clamp in warm soapy water and cycle the knob back and forth
several times.
4. Rinse the tube clamp and allow the tube clamp to drain in the upright position.
5. Position the tube clamp so that the black rubber button in front of the occlusion
indicator arrow slides under the occlusion indicator ring.

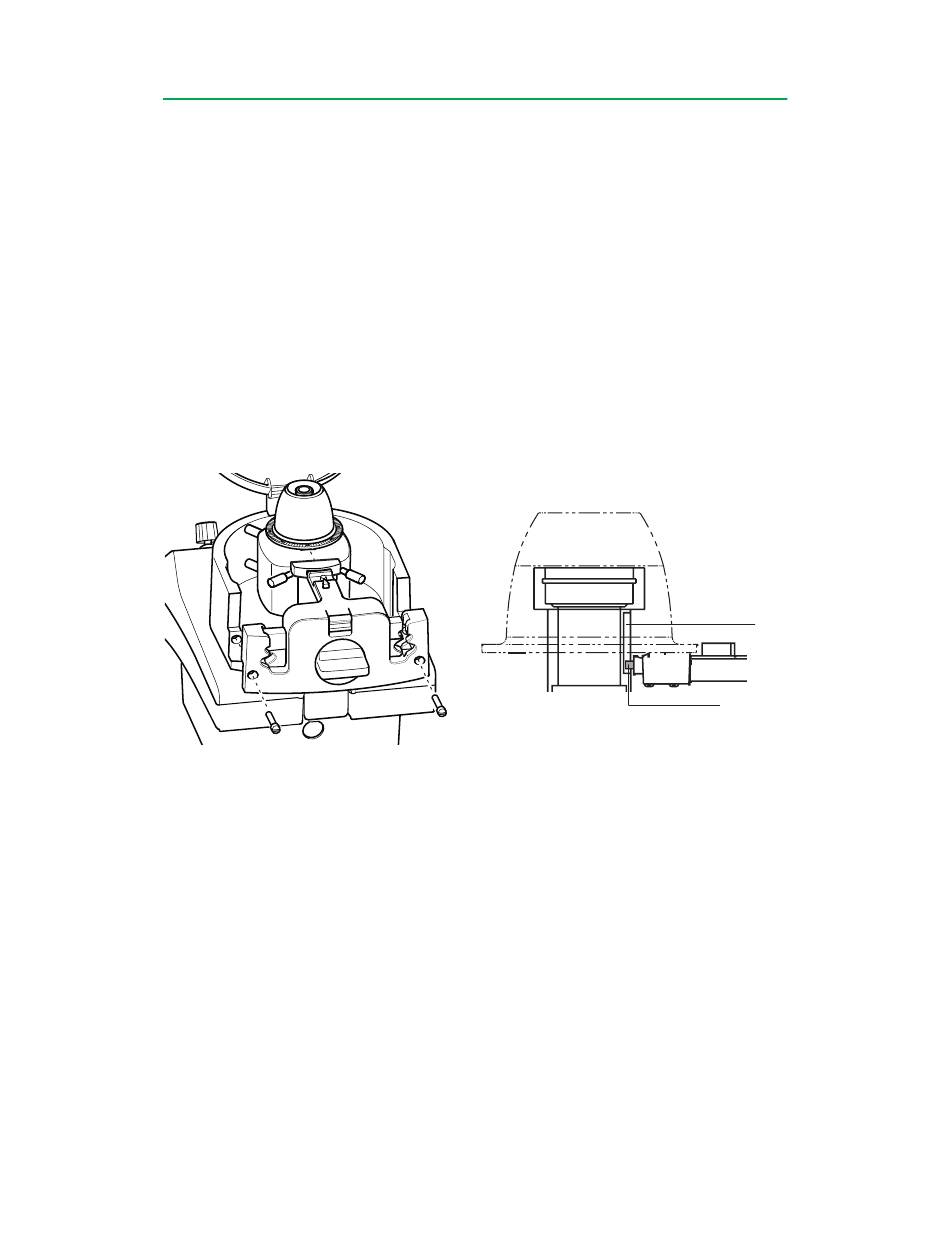

6. Rotate the occlusion knob until the metal dowel pin at the end of the tube clamp
slides into the slot of the adjustment screw.
Note: Failure to position the metal dowel pin into the slot of the adjustment
screw will result in the inability to set occlusion.
7. Seat and fasten the tube clamp onto the raceway using the two screws.

Removal and Cleaning of the Instrument Tray

The instrument tray can be removed to clean underneath the tray.
1. Remove the 2 thumbnuts from under the tray, 1 under each end.
2. Lift the tray off of the base.
3. Separate the end caps from the tray.
4. Clean and dry the 3 tray pieces and the tray mounting surface on the base.
5. Put the end caps onto the tray.
12-14
Slot
Dowel Pin
