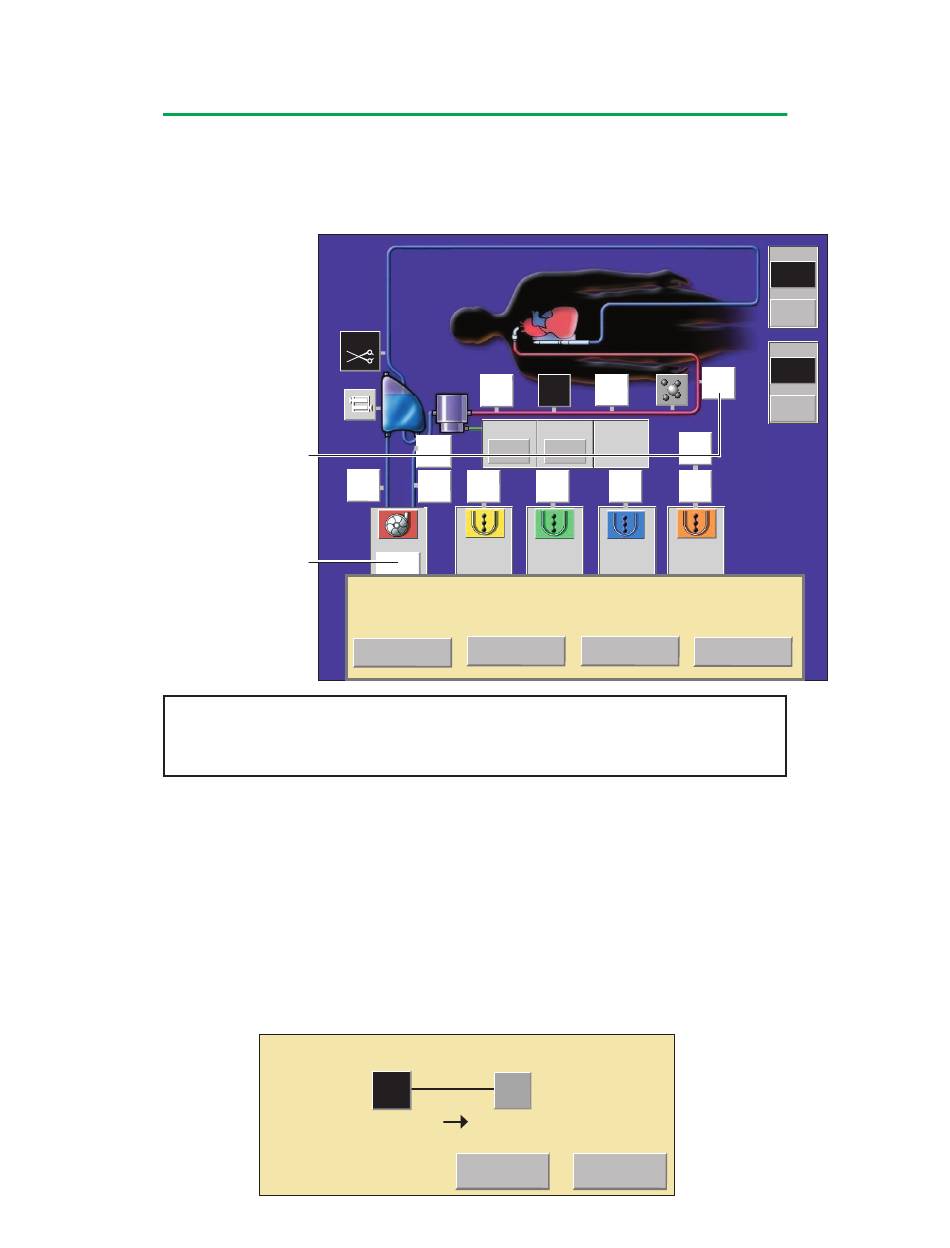

Place the Flow Sensor
Place the flow sensor by touching a white square. In order for flow information
to be displayed on a centrifugal control unit, a flow sensor must be placed on the
centrifugal pump speed/flow display area. Change the placement of the flow sensor
by touching any other white square.
Placing a device icon in this
location may interfere
with a CDI display icon.
Speed/flow display
WARNING: Always place a flow sensor on a centrifugal pump speed/flow
display area to enable the minimum flow alarm and any safety connections that
have been set for a minimum flow alarm.
Choose Next to continue.
Set Safety Connections
After a flow sensor is placed, the system automatically prompts the user to set a
safety connection.
Choose Yes to set a safety connection.
Note: If a centrifugal pump is placed in a position other than in the number 1 or
number 6 position on the CCM, the Speed/Flow Display area will be hidden from view
when in the Edit Safety Connections menu. To avoid moving the pump or flow sensor
in order to make safety connections, make the safety connections at this time.
Choose No to defer setting a safety connection.
Do you want to setup a safety connection for ART Flow?
