Terumo Advanced Perfusion System 1 Operator's Manual page 142

Central Control Monitor
Choose Next button to continue.
Configure CDI™ 100/101 Data Display
Three parameters from the CDI™ 100 or CDI™ 101 monitor are displayed on the
screen: oxygen saturation (SAT), hematocrit (HCT), and hemoglobin (HB).
Configure CDI 100 Data Display:
Select Display:
OK
Select Display
Choose Venous or Arterial as the source for the parameter values.
Touch the Venous button to change the selection to Arterial. Touch the button again
to revert to Venous.

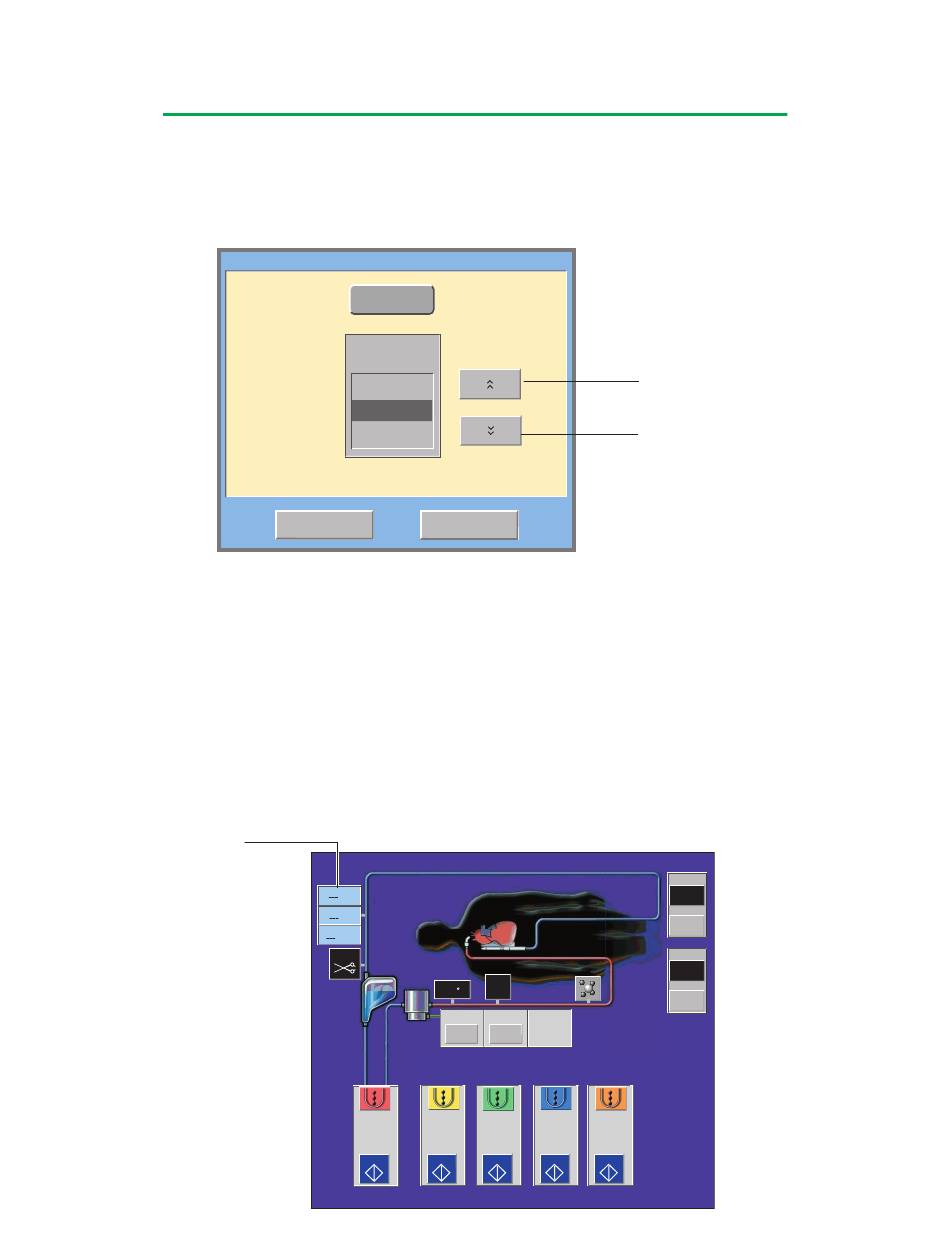

Arrange Data Values
The data values for the parameters are displayed on the screen in a stack display
box. The position of data values in the stack can be changed by selecting the
parameter and using the arrows to choose the desired position.
Touch the OK button to place the display on the Perfusion Screen or choose cancel
to cancel the addition of the display.
