System Base
2. For pump cables, route cable through the clips and attach to the pump.
3. For modules, the cable exits at the access area. Route to the appropriate
location.
4. Install module and cable covers.

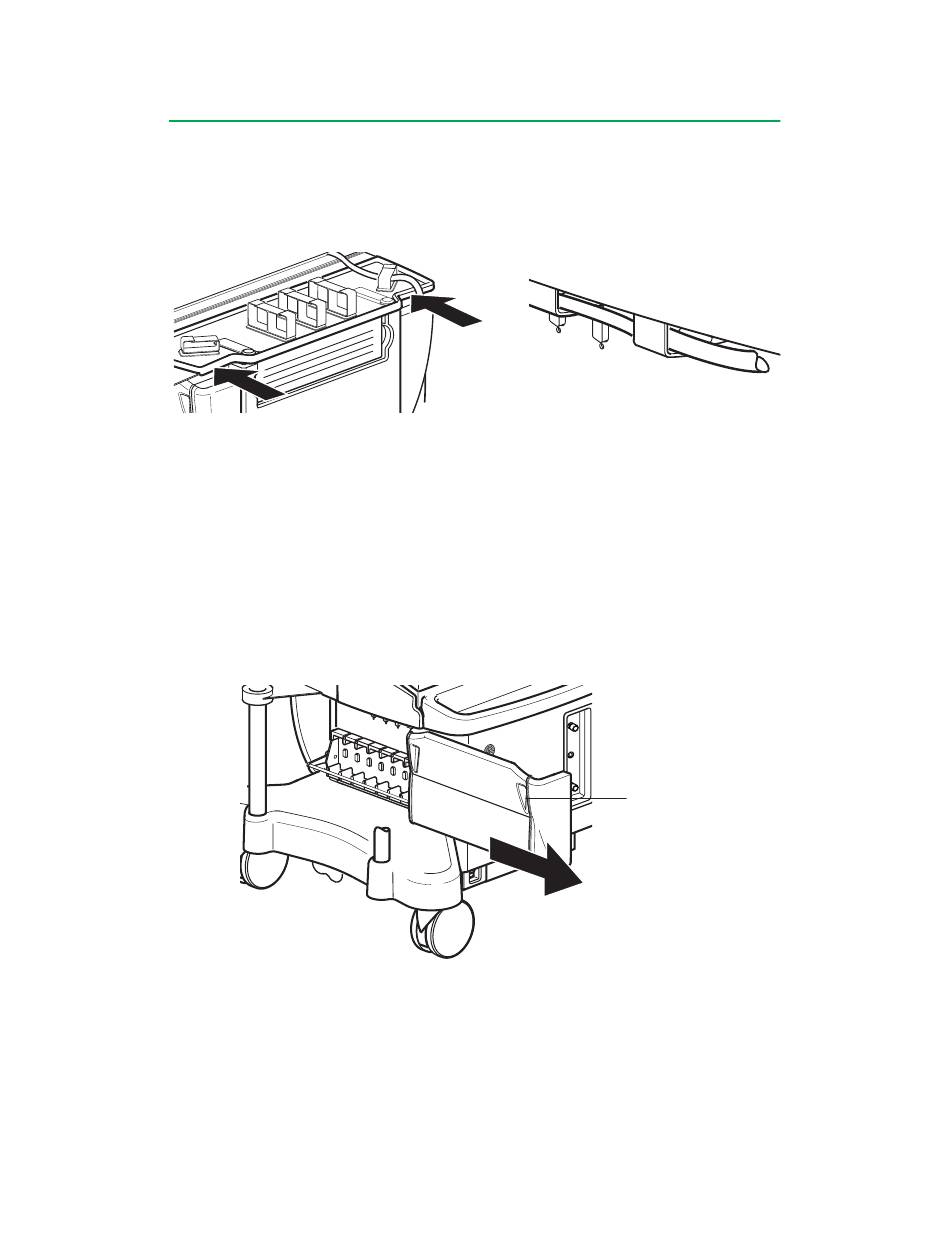

Access Area
Module Covers
The module covers are located on each side of the base and provide protection from
liquid spills. Users may view modules through the cover if required.
To Remove Module Cover:
1. Grasp the module cover handle.
2. Pull toward the front of the base.
To Replace Module Cover:
1. Align the cover on the slide rail.
2. Push into place.
Cable Cover
The cable cover is mounted on the back of the system base and provides protection
from spills.
To Install Cover:
1. Slide front part of cover under roller pumps on the base.
2. Align the latches with the holes in the pole retaining brackets and insert the
latches through the holes.
3. Push the latch lever down to close each latch and secure the cable cover to the
base.
Access Area
3-21
Handle
