Modules
Pressure Monitoring
6. Close the Safety Screen by touching the Close button.
7. Repeat steps 1-6 for each transducer assigned to the system. Once a pressure
transducer is calibrated, closed to atmospheric pressure, and open to the circuit,
it does not need to be turned on to enable pressure monitoring.
System Response to Alert Conditions
Pressure Pressure
Icon Module
Flashes LED flashes
yellow yellow
The alert limit should be set to warn of slowly changing conditions which may raise
the average pressure significantly, such as a cannula misalignment, increased
systemic resistance, etc.

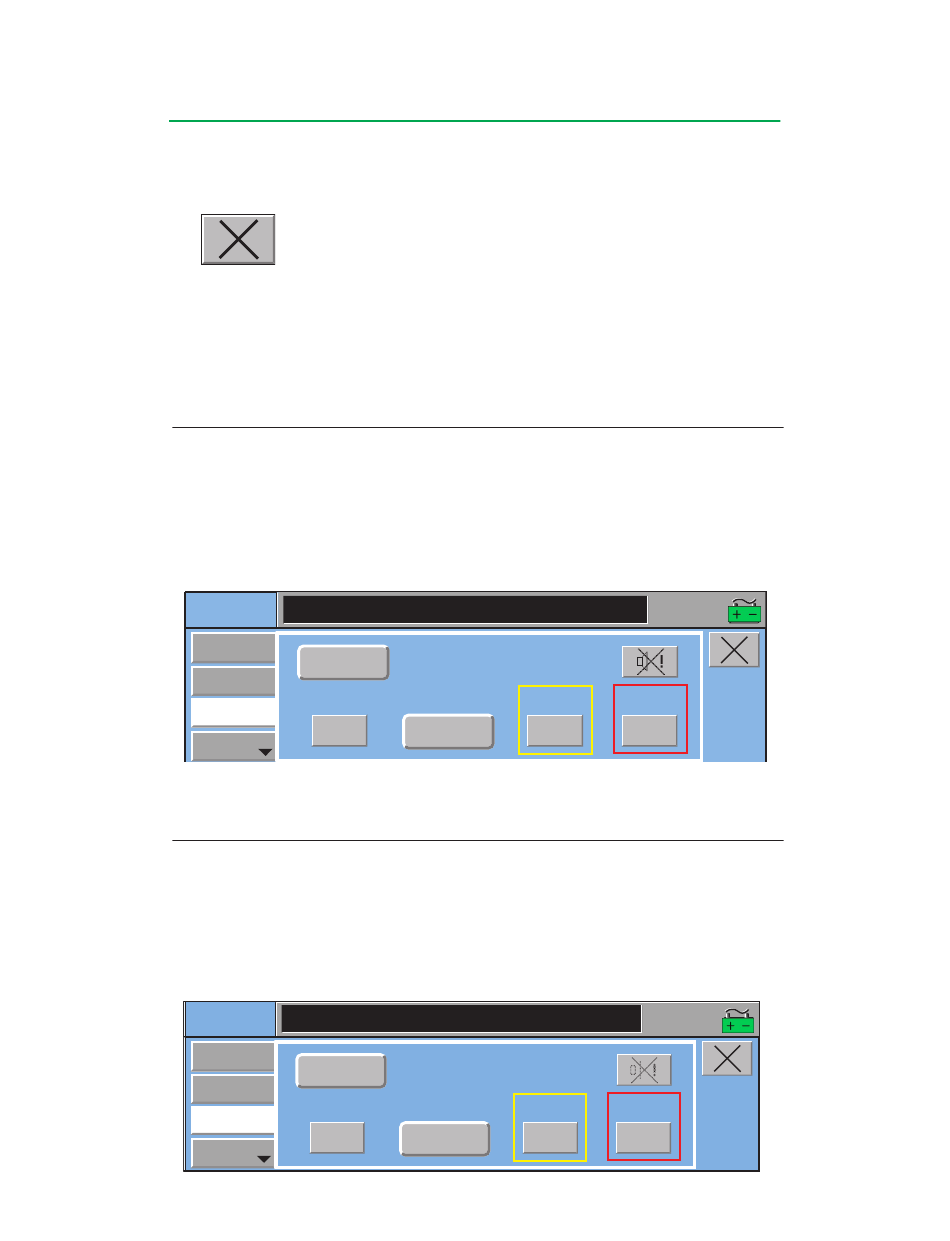

ART Pres : CHECK PRESSURE
Safety
Air
ART Pres
Level
310 mmHg
Pressures
Zero
Next
System Response to Alarm Condition
Pressure Pressure
Icon Module
Flashes red LED flashes
red
The alarm limit should be set to warn of instantaneous high pressure situations which
may rupture the tubing circuit, such as a clamped or kinked line.
OVER PRESSURE: Arterial STOPPED
Safety
Air
ART Pres
Level
398 mmHg
Pressures
Zero
Next
Message
Message with transducer name in
the CCM message area and
on the local display of any
pumps with a pressure safety
connection. Safety tab opens.
Limits (mmHg)
Display:
Alert:
300
Average
Message
Message with transducer name
in the CCM message area and
on the local display of any pumps
with a pressure safety connection.
Safety tab opens.
Limits (mmHg)
Display:
Alert:
300
Average
7-18
Connected Audible
Device(s) Tone
Respond as Single-tone
configured alert
16:07:51
Alarm:
360
Connected Audible
Device(s) Tone
Respond as Dual-tone
configured alarm
16:07:51
Alarm:
360
