Air Bubble Detection (ABD)
Enabling, Resetting, or Disabling Air Bubble Detection Alarms

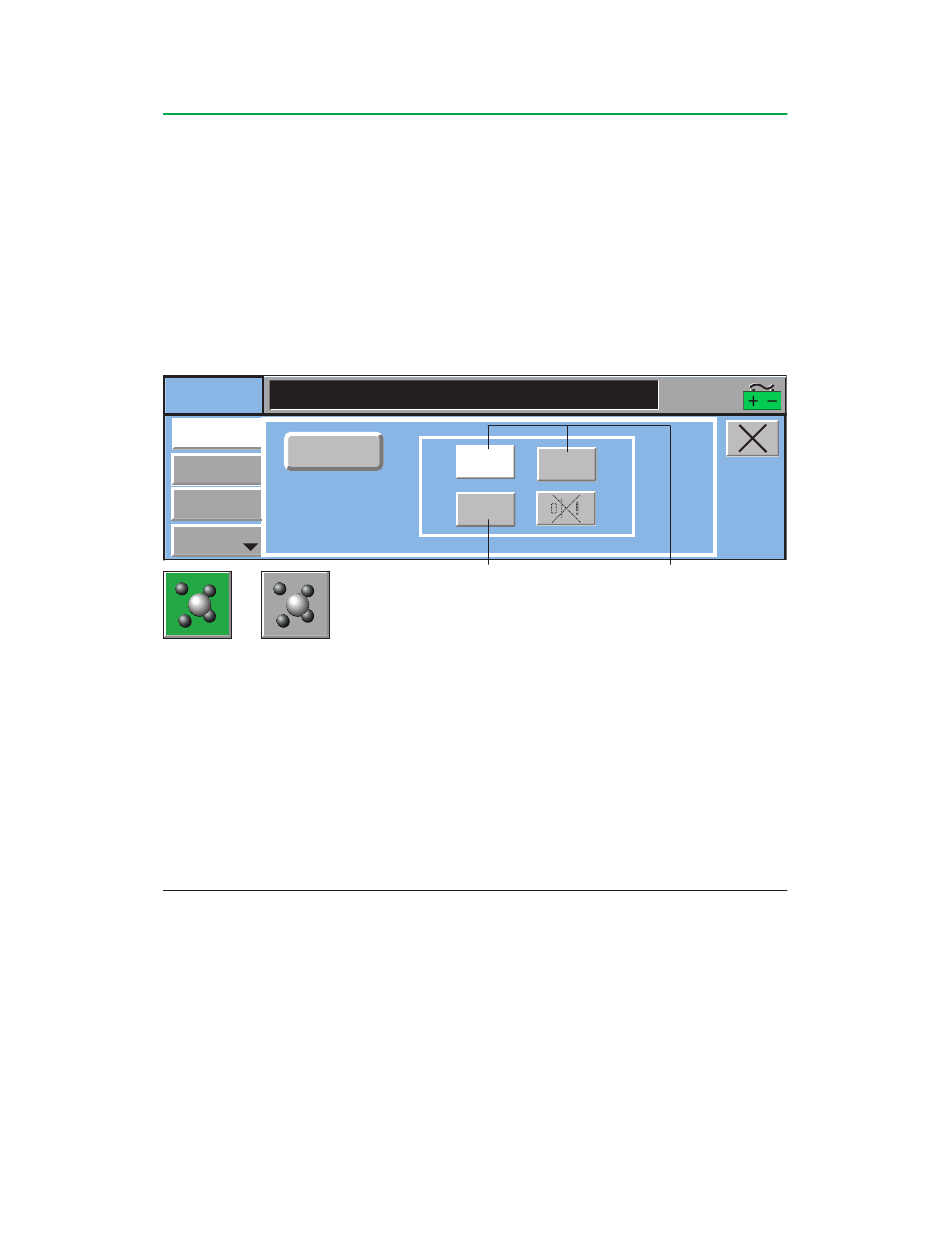

Select the Air subtab within the Safety tab on the Perfusion Screen or touch the Air
icon on the CCM.
1. Touch the air detection On button to enable the alarm capability for the air
detection system and the icon on the CCM turns green.
2. Touch the air detection Off button to disable the alarm capability for the air
detection system and the icon on the CCM turns gray.
Safety
Air
ART Air
Level
Pressures
Next
3. When air is detected, correct the condition, and then touch the Reset button
on the CCM to clear an air alarm and leave the air bubble detector enabled. If
an air detector has a safety connection to a pump, the alarm can also be reset
by touching the Select button on the pump control panel after the air has been
cleared. The ABD is the only safety device that requires a reset by the user to
confirm that the issue has been addressed. All other safety devices automatically
reset when the issue is resolved.
System Response to Air Bubble Detection Alarm
Air Air
Icon Module
Flashes red LED flashes
red
The alarm state will clear when the condition is corrected and the air bubble detection
system is Reset or turned Off.
Note: The ABD system will alarm when the air sensor is disconnected from the
module.
On
Reset
Reset Button
Message
Message with sensor name
in the CCM message area
and on the local display of any
pumps with an air safety
connection. Safety tab opens.
7-4
16:07:51
Off
On Button
Off Button
Connected Audible
Device(s) Tone
Respond as Dual-tone
configured alarm
