Central Control Monitor
PC Card Compartment
The CCM holds two PC cards: a system configuration card and a service data card.
The system configuration card is used to backup Perfusion Screens and can also
be used to transfer Perfusion Screens between systems and upgrade the CCM and
module software.
The service data card collects and stores data for use by authorized service
representatives.
The system configuration card and service data card are not interchangeable and
must be used in the appropriate slot.
To Install a PC Card:
1. Slide the door latch down to open the compartment door.
2. Insert the PC card into the appropriate slot. The release button above the card
protrudes when the card is fully seated in the slot.
3. Close the compartment door.
To Remove a PC Card:
Ensure the CCM is not accessing the card before removal.
1. Slide the door latch down to open the compartment door.
2. Depress the release button.
3. Remove the card.
4. Close the compartment door.

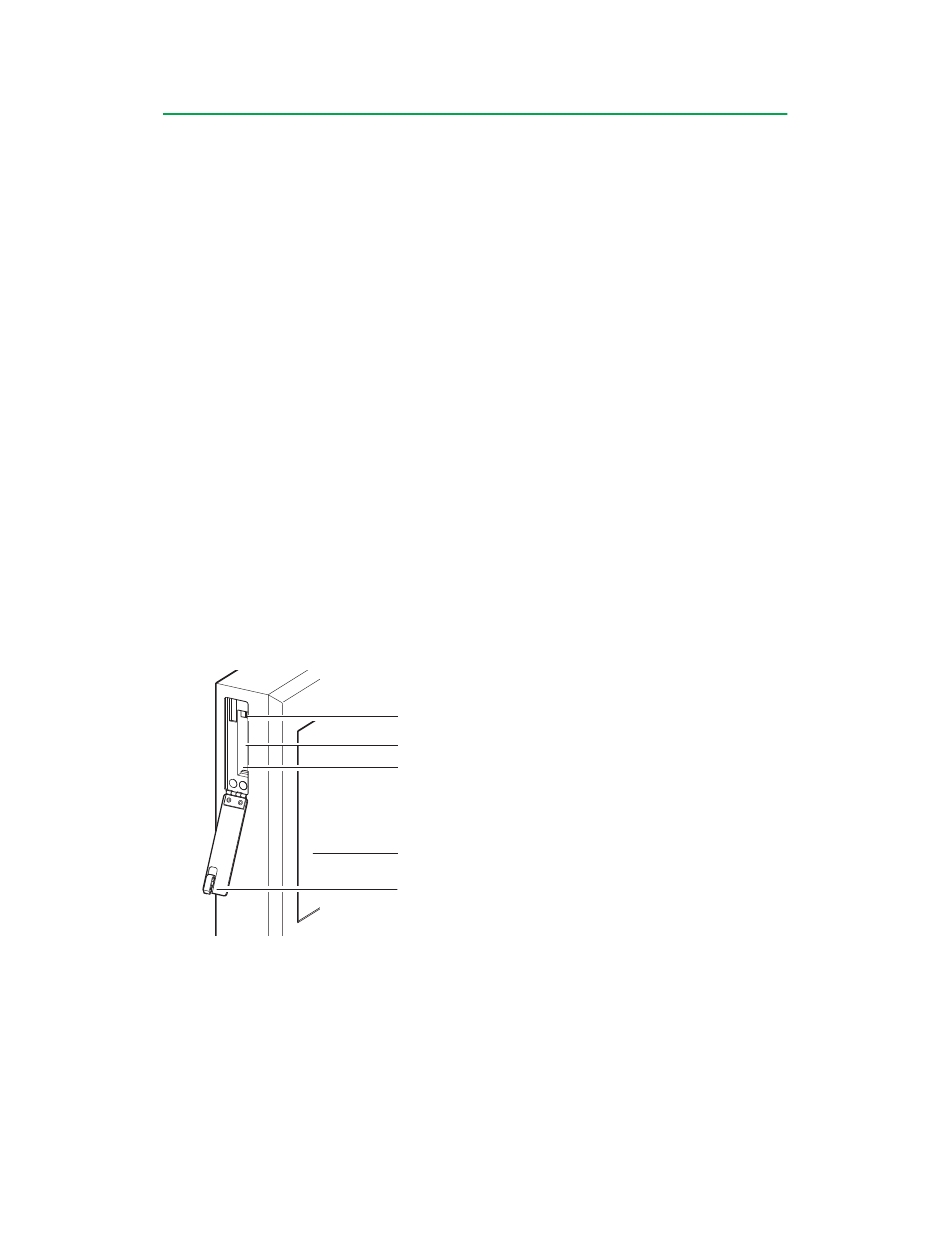

Release Button
Service Data Card Slot (Right)
System Configuration Card Slot (Left)
Front
Door Latch
