Centrifugal Control Unit
CCM.
The system provides the capability to automatically regulate the centrifugal pump
speed to maintain a desired pressure or flow set point. This is known as Servo
mode. In this mode, the user selects a pressure or flow source and initiates servo
operation on the Central Control Monitor. Once in Servo mode, the servo setpoint
can be changed by adjusting the pump speed control knob or using the pump slide
bar on the Central Control Monitor.
Safety connections such as air detection, level detection, and pressure monitoring
are configured through the Configuration area on the Central Control Monitor. Pump
responses to alerts and alarms are user selectable. Valid responses for centrifugal
pumps are Stop, Coast, Message Only, or No Response. The control unit front panel
will display a message indicating the event from a connected device.

Installation and Connection

Control Unit Cable

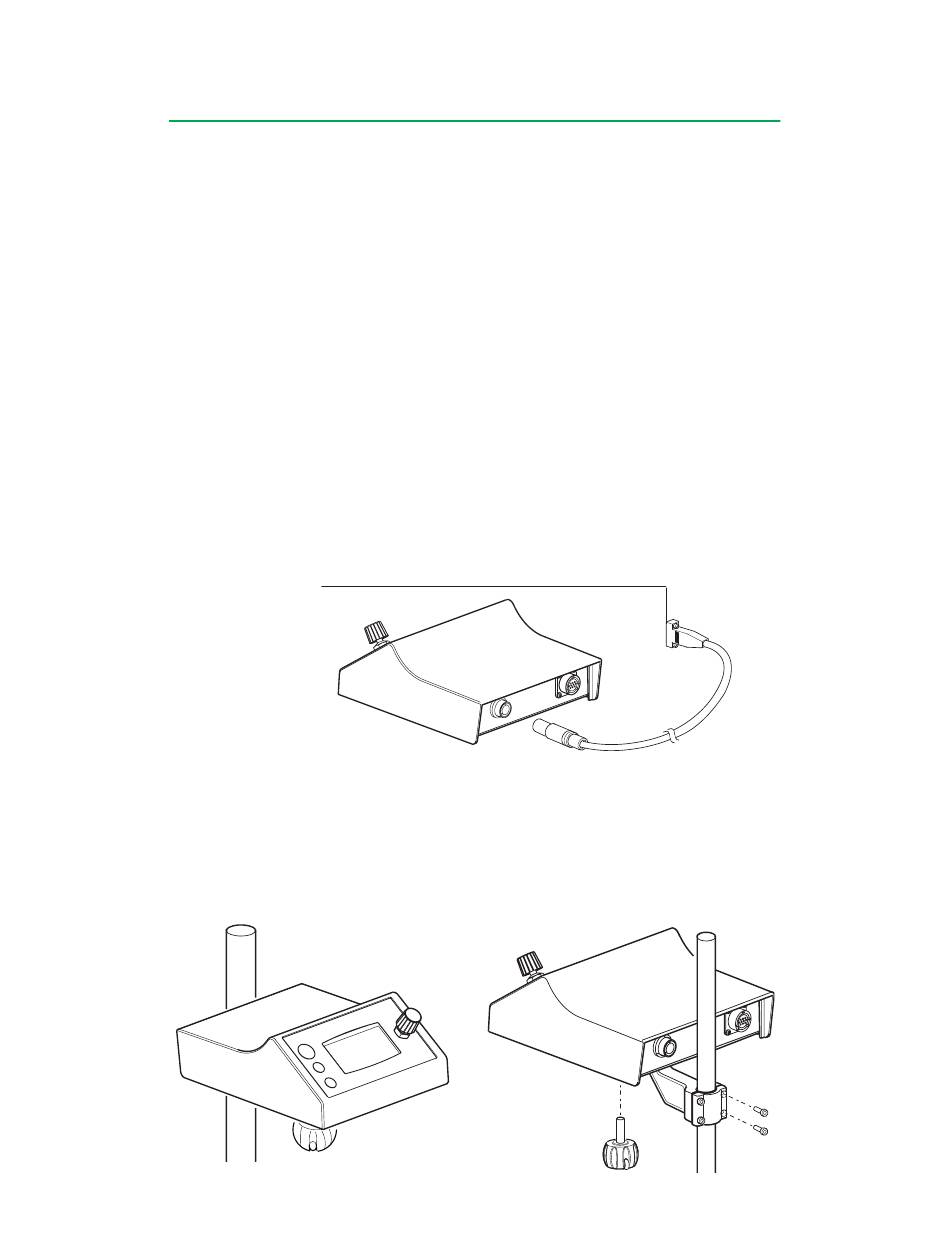

Connect the centrifugal control unit cable to the receptacle located on the back of
the control unit. Align the red dot on the control unit cable with the red dot on the
control unit receptacle. Insert the connector into the receptacle; an audible click
indicates that the connector is fully seated in the receptacle. Pull gently on the cable
to verify a secure connection
To System Base

Pole Mounting

Place the control unit on the mounting arm. Insert the threaded part of the knob
through the arm and into the control unit. Select the desired pole position and
secure the mounting arm to the pole. Tighten the knob to secure the pump in place.
Adjust the mounting arm to reposition the control unit to the desired location.
