System Overview

Occluder Module

The occluder module is used with the occluder head to provide a computer-controlled
tube clamping mechanism to regulate the flow in the venous line. The occluder head
is attached to the module with the occluder head power cable.

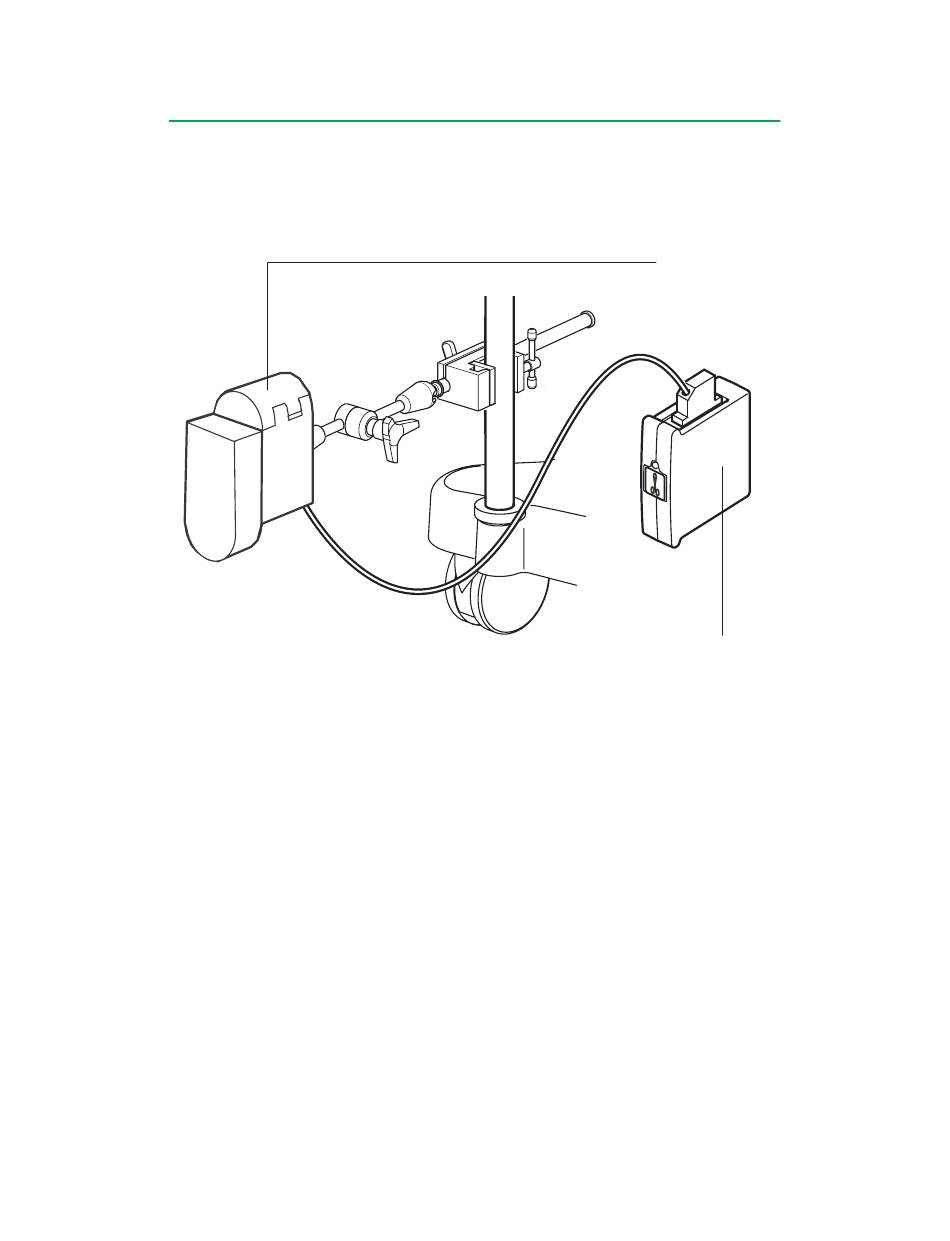

Occluder Head
Occluder Module
Only 1 occluder may be connected to the system.
Tubing is positioned in the occluder head and is compressed by a plunger. Tubing
can range in size from 1/4 in (6,4 mm) I.D. x 1/16 in (1,6 mm) wall thickness to 1/2
in (12,7 mm) I.D. x 3/32 in (2,4 mm) wall thickness with a recommended nominal
durometer range of 65-70 Shore A.
The occluder is controlled through the occluder slide bar on the Central Control
Monitor. Use the Open and Close buttons on the slide bar or choose a percentage
open by using the scroll control. There are no local controls on the occluder head.
The occluder must be calibrated prior to use. The occluder icon on the Central
Control Monitor will display "CAL" to indicate that the occluder needs calibration.
2-16
