Central Control Monitor
Occluder Responses
An Occluder responds only to events from the primary pump.
The same occluder response must be selected for these centrifugal pump events:
pump stop, pump Coast, and minimum flow. The system automatically assigns the
response chosen for stop, Coast, or minimum flow to the remaining two events.
Occluder responses are Full Close, Full Open, Go to % Flow, and No Response.
A Full Close response causes the occluder to fully occlude the venous line. The
occluder will remain fully closed until the event is cleared, unless the event is a pump
start or pump stop. If the event is a pump start or pump stop, the occluder can still be
adjusted through the control slide bar on the CCM.
A Full Open response causes the occluder to fully unocclude the venous line. The
occluder will remain fully open until the event is cleared, unless the event is a pump
start or pump stop. If the event is a pump start or pump stop, the occluder can still be
adjusted through the control slide bar on the CCM.
A Go to % Flow response causes the occluder to move to a position to provide the
percentage of tube opening selected by the user. The occluder will remain in this
position until the event is cleared, unless the event is a pump start or pump stop. If
the event is a pump start or pump stop, the occluder can still be adjusted through the
control slide bar on the CCM.
If No Response is selected, then no safety connection is established between the
primary pump and the occluder.
Add/Edit Safety Connections
When Edit Safety Connections is selected, a list of the names of devices that can be
set up to respond to an event through a safety connection appear.

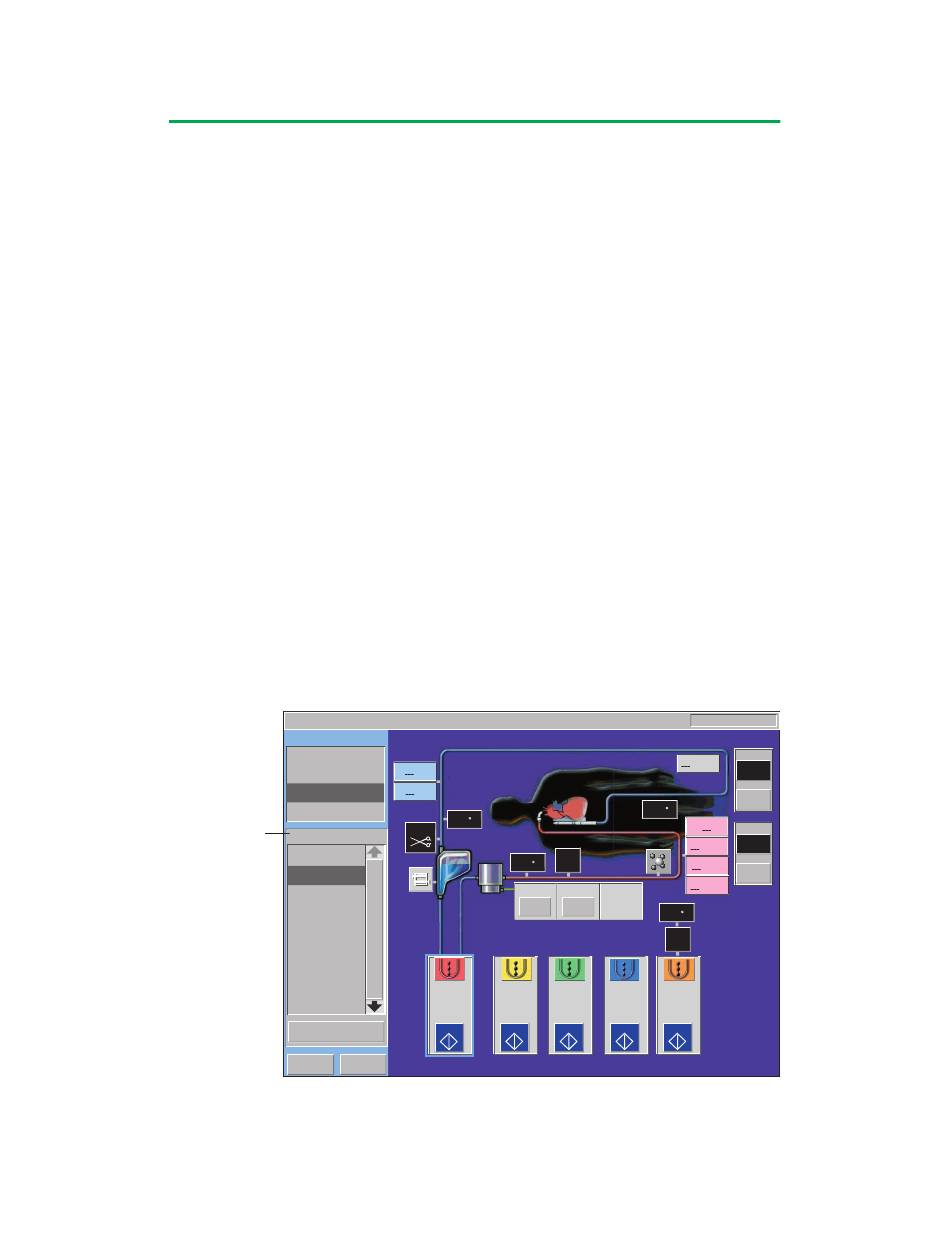

Configure Perfusion Screen > Edit Safety Connections
Menu
Configure Pumps
Configure Other Devices
Edit Safety Connections
Assign Devices to Modules
List of names of
Devices:
responding devices
Occluder
Arterial
Vent
Sucker1
Sucker2
CPG
Add/Edit Connections >
Save As >
1. Touch the name of the device on the list, or the device icon on the graphic display
to add or edit safety connections for that device.
• The name will be highlighted. The device chosen and any existing safety
connected devices will be highlighted with a blue border.
SO2
%
HCT
%
C
Gas
