Terumo Advanced Perfusion System 1 Operator's Manual page 152

Central Control Monitor

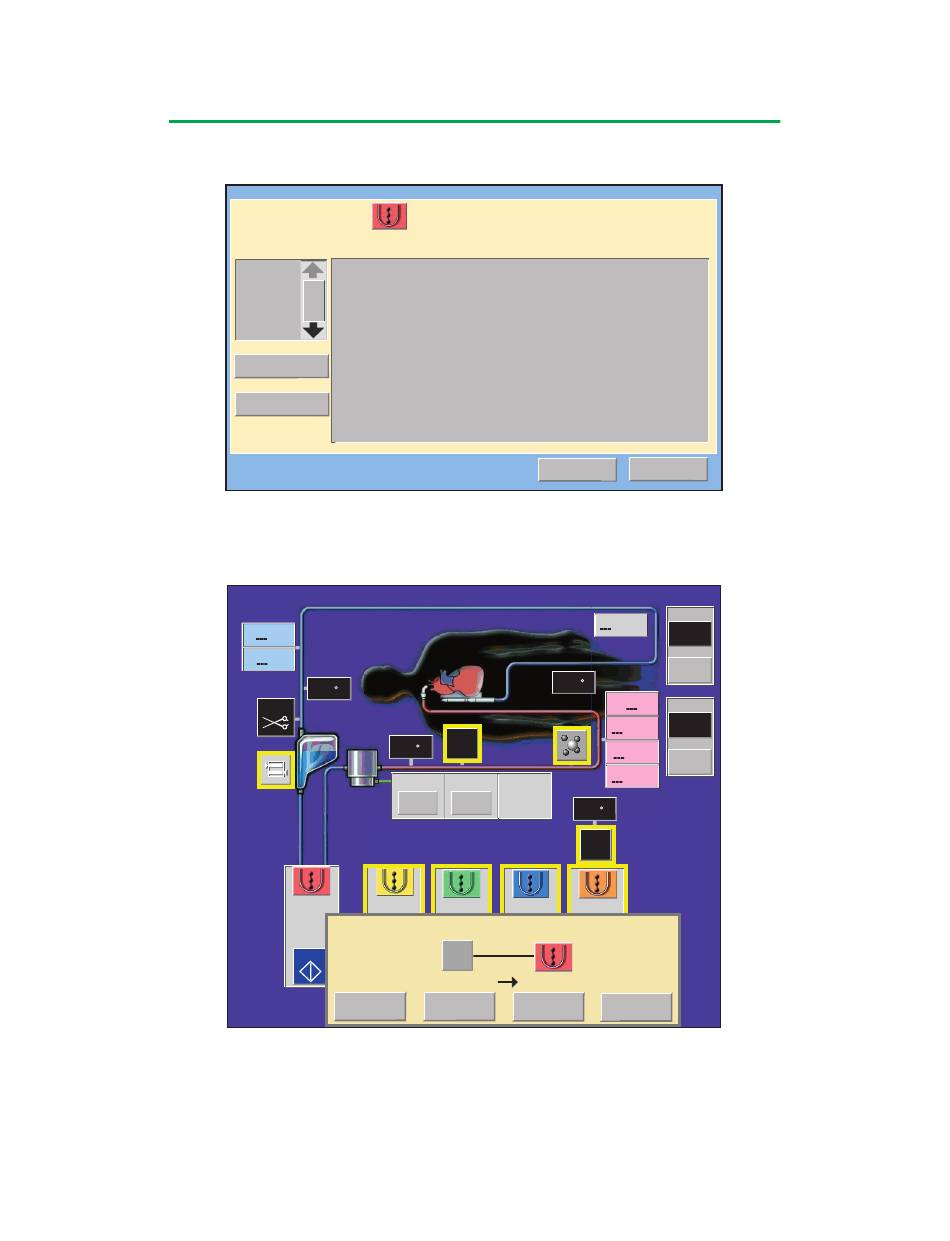

2. Touch the Add/Edit Connections button to add or edit the safety connections to
the device selected.
Safety Connections Arterial
Connected Device:
Add Connection >
Remove Connection Remove Connection
• A screen appears which shows the safety connections for the selected device.
A blank screen indicates that no safety connections are currently set.
3. Touch the Add Connection button to add a safety connection.
SO2
%
HCT
%
C
Arterial
L/min
START
4. Select a device to connect to the responding device. The devices that can be
connected to the responding device are highlighted by a yellow border.
Note: Flow sensors placed on centrifugal pumps that are in the middle of the
display will be covered by the screen above. The flow icon may need to be
temporarily moved to another location on the graphic display in order to add or
edit safety connections to the flow sensor.
C
mmHg
Gas % O2 FiCO2
0
0 0
Vent
Sucker1 Sucker2
Touch a device to connect to Arterial:
L/min
L/min L/min
?
START
START START
Response
Event
Undo
Undo
< Previous
Next >
Next >
