Alarm limits must always be higher than alert limits. The system maintains a
10 mmHg pressure difference between the alert and alarm limit to ensure that the
alert is always less than the alarm.
To change the alarm or alert limit, touch the Alarm Limit or Alert Limit button and
use the arrows to set a new limit. Touch the Alarm Limit or Alert Limit button again
to store the new value.
Choose Next to continue.

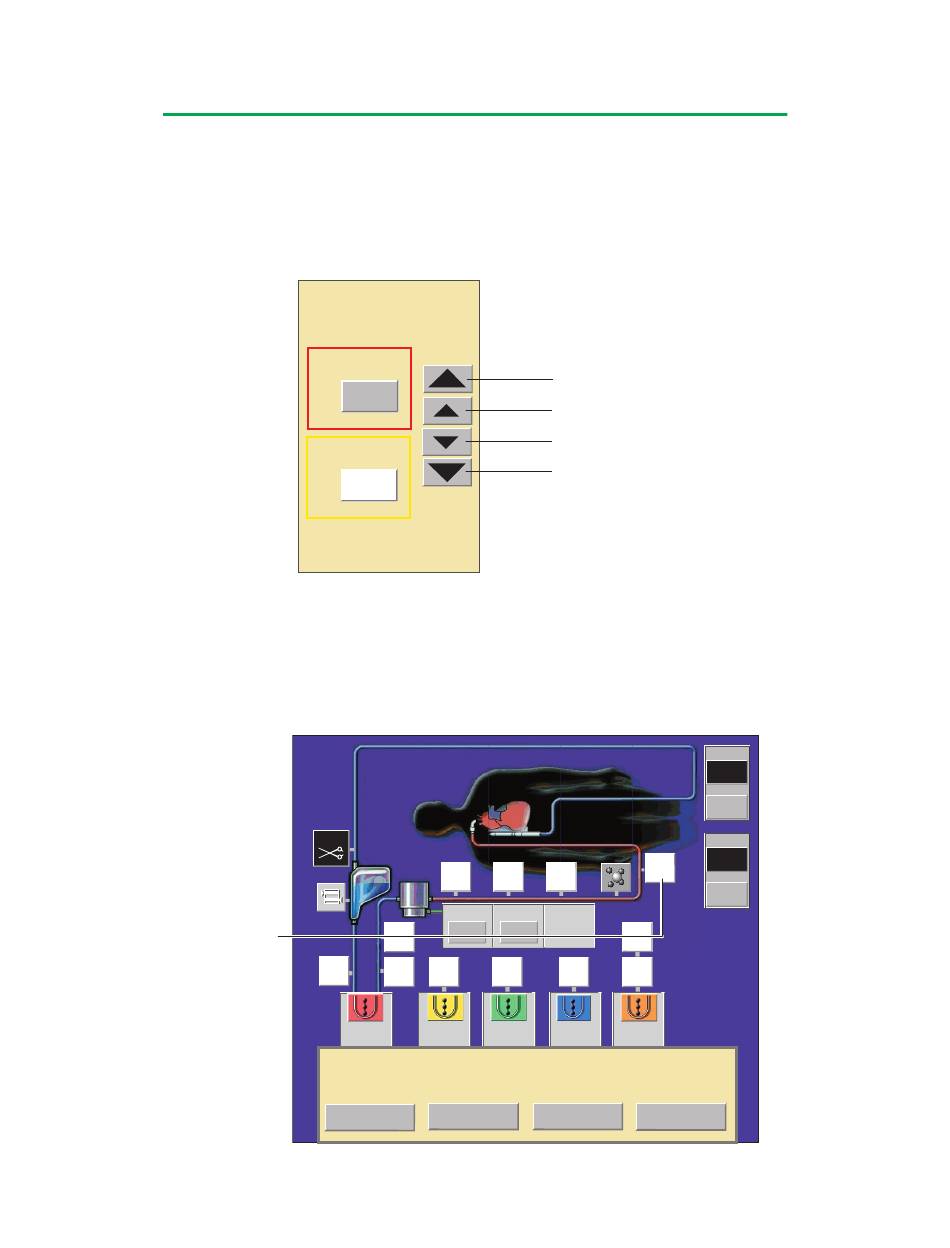

Place the Pressure Sensor
Place the pressure sensor in the location that most closely matches the actual
location of the pressure sensor in the circuit by touching the appropriate white square.
Choose Do Not Place to allow placing the sensor at a later time.
Placing a device icon in this
location may interfere
with a CDI display icon.
Change placement of the sensor by choosing any other white square.
