System Base
Module Bracket System

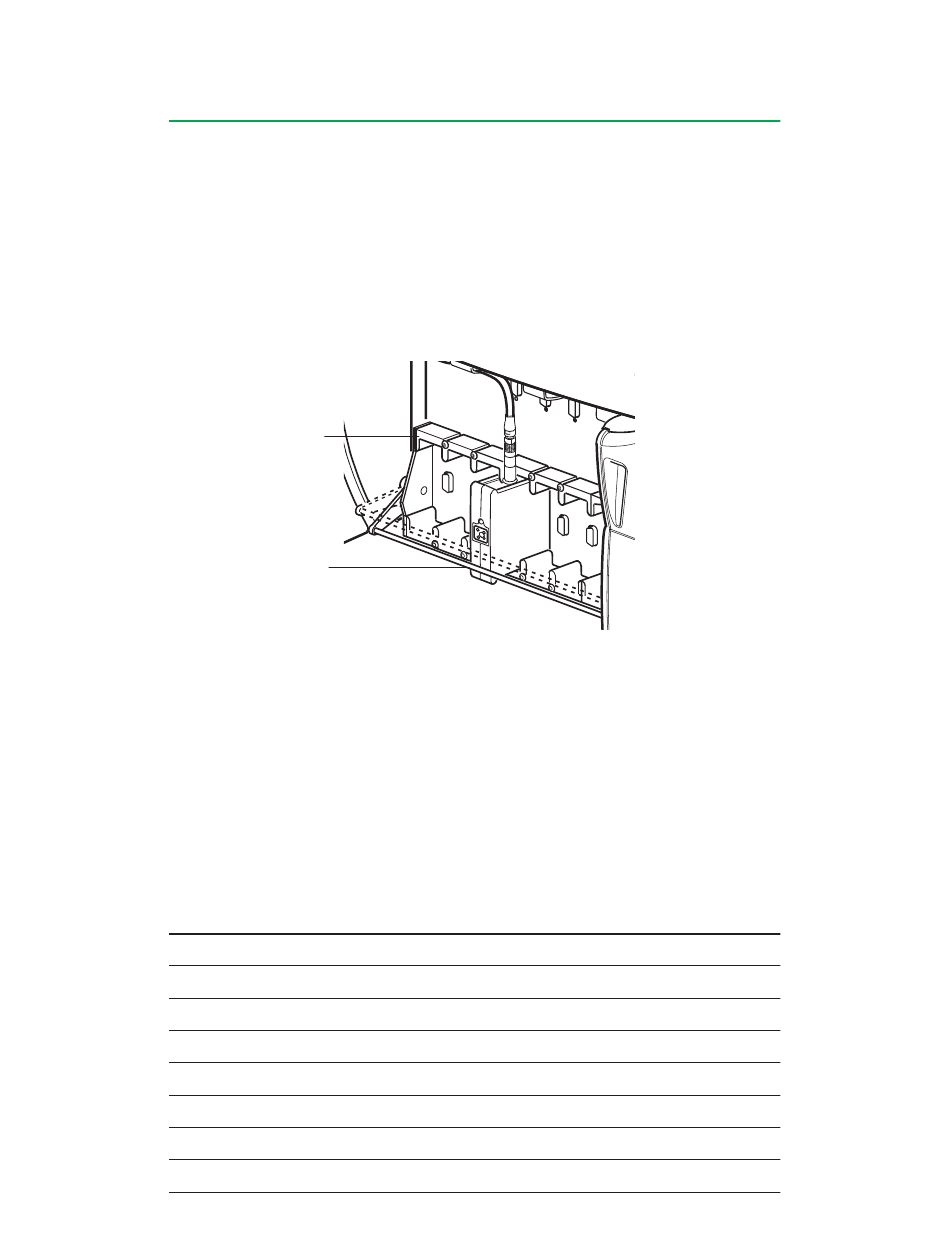

Each module receptacle is surrounded by a rectangular shaped bracket that is
mounted on the side of the base. This bracket, along with a crossbar, holds the
modules in place.
To Insert or Remove Module:
1. Pull crossbar down.
2. Insert or remove module
from receptacle.
3. Release crossbar
Bracket
Crossbar
Pump Platform
The pump platform is designed to provide adaptable mounting combinations of roller
pumps onto the system base. The platform consists of a rail, adjustable endcaps,
and extensions that are used in conjunction with the endcaps.
The chart below represents the placement of roller pumps on the platform.
L indicates a large roller pump, S indicates a small roller pump. Other roller pump
combinations require the use of a pole mount bracket.
Based on the chart, determine the size extension that is required for the pump
combination to be used. Extensions are located in the accessories kit.
No Extension
L S S
S S L
L S L
S L S
S L L
L L S
L L L
S S S
Small Extension
S S S L
L S S S
L S S L
S S L S
S L S S
S S S S
3-17
Large Extension
S S L L
S L S L
L S L S
L L S S
L S L L
L L S L
S L L S
