System Overview
System Base
Features

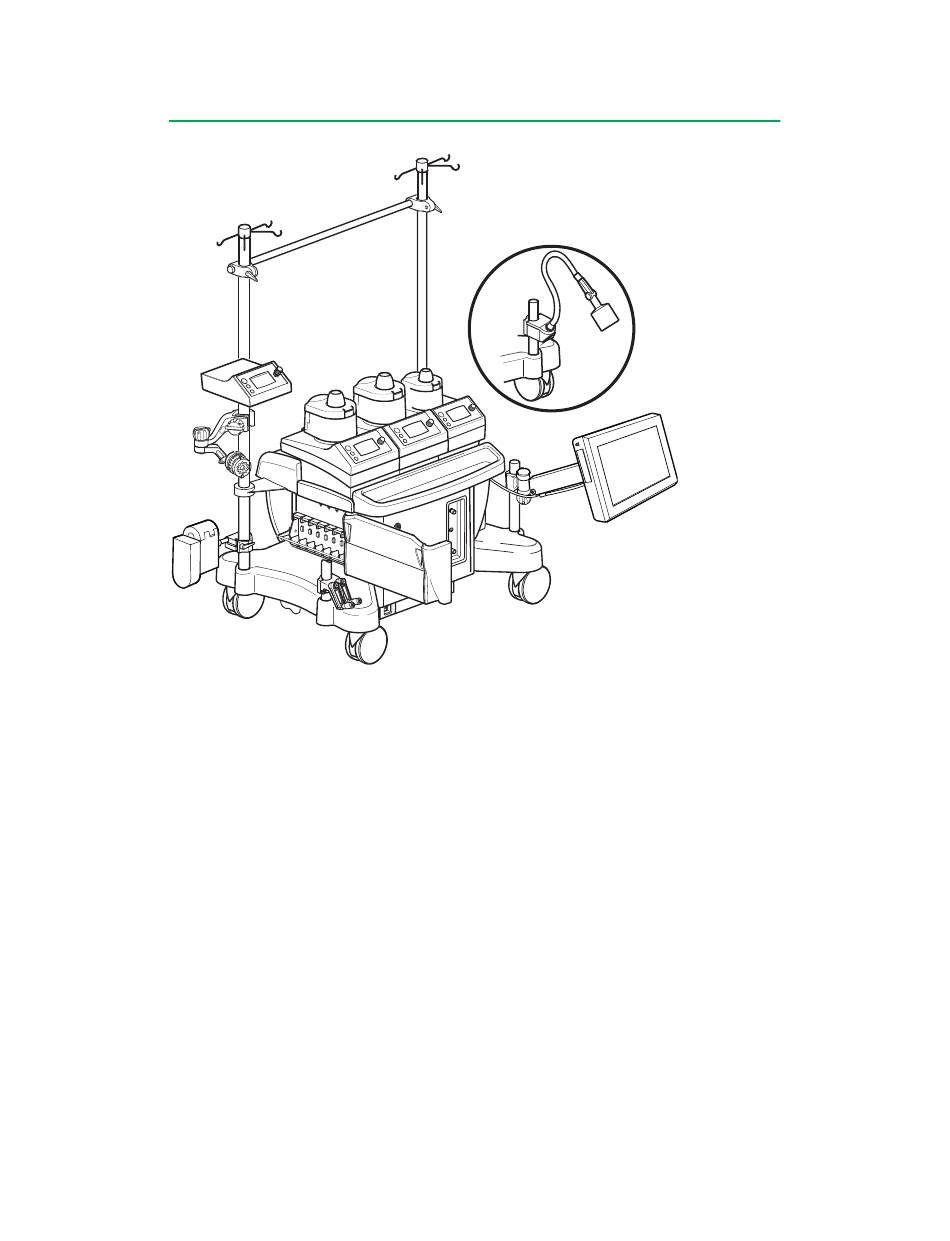

The system base houses the internal network architecture, electronics, power supply
components, batteries, communications and power connections and circuit breakers.
The base has a pair of casters on each side. Each pair of casters has a 3 position
locking lever to control the movement of the casters.
Roller pumps are mounted along a central rail on the top of the base or on the
poles with mounting brackets. There are 2 sizes of pump mounting extensions to
allow different combinations of large and small pumps to be mounted along the
central mounting area. Cable clips are built in to the mounting area to aid in cable
management. The centrifugal control unit is mounted on the system with a pole
mounting bracket.
Modules are connected to the receptacles on the sides of the base. A locking rail
protects the modules from accidental disconnection.
Protective cover panels are attached to the top and sides of the base after
components are installed to protect cables and components from liquid spills.
Long mounting poles are installed on the back corners of the base and short
mounting poles are installed on the front corners of the base. A crossbar can be
mounted between the 2 longest poles.
A pole-mountable lamp is available in 2 sizes, long or short.
A hand crank bracket, which holds 2 hand cranks, can be mounted on a pole in a
convenient location.
There is an auxiliary outlet on the back of the system base for powering additional
equipment.
