Buttons - Terumo Advanced Perfusion System 1 Operator's Manual

Central Control Monitor

Buttons

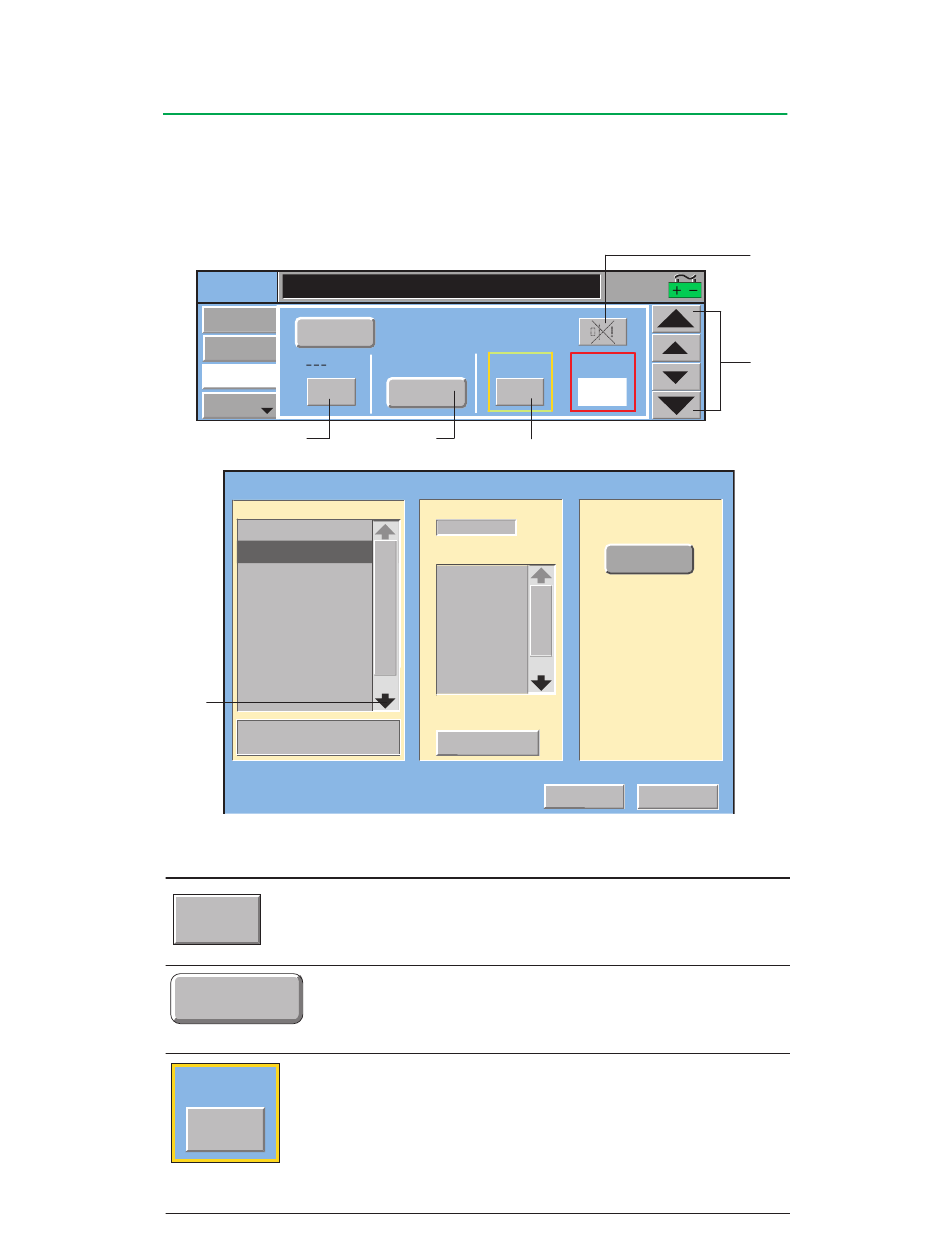

There are several types of buttons used throughout the Graphical User Interface
screens to select and display information or to accomplish specific tasks. The Safety
tab and To Add Device Screens shown below illustrate examples for a Task button,
Toggle button, Display button, arrows, Mute button, and Scroll arrows.
Safety
Air
Level
Pressures
Next
Task Button
To Add Device:
Select Device Type:
Air Detector
Level Detector
Occluder
Pressure Sensor
Flow Sensor
Temperature Sensor
CDI 100
CDI 500
Scroll Arrows
Current defined:
Maximum allowed:
Button/Display
Zero
Average
Alert:
300
ART Pres Limits (mmHg)
Display:
mmHg
Zero
Average
Toggle Button
Select Device Name:
Select From List:
Level
VENLevel
CPGLevel
LEVEL1
LEVEL2
Or Enter New Name:
0
Enter New Name >
1
Description
Task Button
Toggle Button
Display Button
4-7
16:07:51
Alert: Alarm:
300 360
Display Button
Level Detection:
Alert/Alarm
Next > Cancel
Action when Pressed
Action displayed on the button will
be taken.
Each time the button is pressed, the next
value from a selection list is displayed.
The label that is displayed is the enabled
selection.
The button background turns white and
value can be adjusted using control arrows
that appear on the right side of the subtab.
The button should be pressed again to
confirm the new value. The control
arrows disappear and other buttons may
be activated when the new value is
confirmed.
Mute
Button
Arrows
