Terumo Advanced Perfusion System 1 Operator's Manual page 88

Central Control Monitor
Deliver Mode

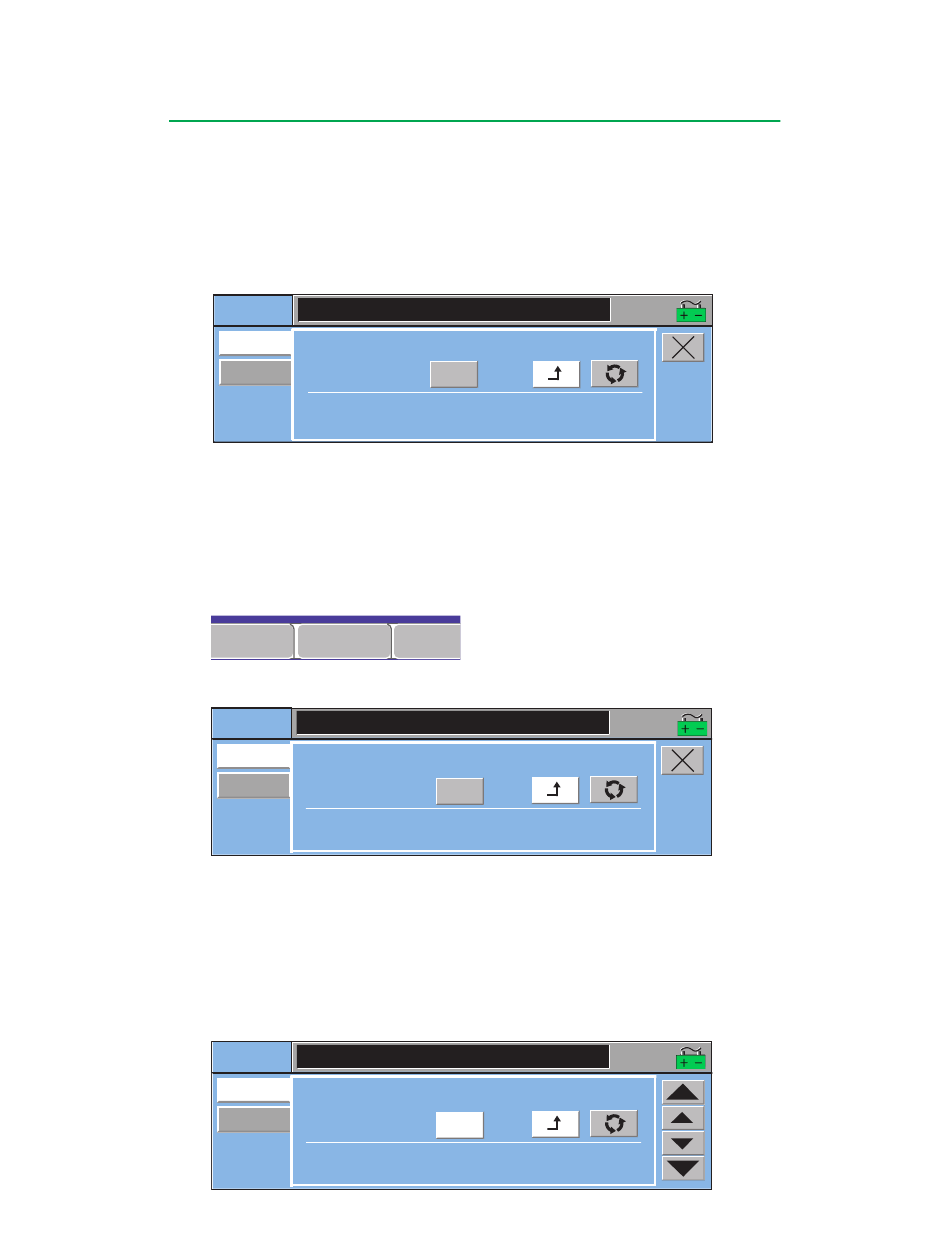

To start tracking cardioplegia delivery:
1. Select Deliver mode by pressing the Deliver button.
2. Start the cardioplegia pump. The cardioplegia pump must be in L/min mode for
total flow rate to be displayed on the CCM and pump local display.
• The system tracks and displays the volume for Current Delivery and Total Delivery.
• The Total Delivery value is grayed out indicating that it cannot be modified.
CPG
Time Since Last Delivery:
Delivery
Auto Dose
Setup
To stop cardioplegia delivery:
1. Touch the cardioplegia pump Stop button.
• Volume tracking stops.
• Time Since Last Delivery is set to 0 and the timer starts counting the time since
last delivery.
• If the subtab is closed while the timer is active, the time since last delivery is
displayed on the CPG tab on the CCM.
Setup Safety
• The Total Delivery value is displayed in black indicating that it can be modified.
CPG
Time Since Last Delivery:
Delivery
Auto Dose
Setup
To modify the Total Delivery volume:
1. Touch the Total Delivery button. The button background turns white.
2. Use the arrows to adjust the total volume. The small arrows change the volume
by 10 mL, the large arrows change the volume by 100 mL.
3. Touch the Total Delivery button again to store the new Total Delivery value.
• The adjustment arrows disappear and the Total Delivery button background turns
gray.
