Cdi™ 500 - Terumo Advanced Perfusion System 1 Operator's Manual

Modules
Interface Module for CDI™ 100/101 and CDI™ 500
CDI™ 500
The CDI™ 500 Monitor is an inline blood parameter monitoring system that is
used during cardiopulmonary bypass procedures. It monitors the blood in the
extracorporeal circuit and provides information about the blood parameters.
The Interface Module for CDI™ 500 module is the interface between the CDI™ 500
monitor and the system. The module performs the following functions:
• Communicates primary pump flow data to the CDI™ 500;
• Receives blood parameter data from the CDI™ 500 and displays it on the CCM.
Values displayed on the CCM are for information only.
CAUTION: Always refer to the CDI™ 500 monitor as the primary source for the
blood parameter information prior to taking any action during the case.
This module is used with CDI™ 500 software versions 1.4 through 1.6 while
operating in standard mode and versions 1.65 and above while operating in either
standard or graphical mode.
Data Values
Parameter
Arterial and Venous PO
2
Arterial and Venous PCO
Arterial and Venous pH
Arterial and Venous Temperature
Arterial and Venous Oxygen saturation (SO
Potassium concentration (K+)
Arterial Bicarbonate (HCO
Arterial Base Excess (BE)
Venous Hemoglobin (Hb)
Venous Hematocrit (Hct)
O Consumption (VO )
2 2
To Connect CDI™ 500 System:
1. Attach the serial cable to the Interface Module for CDI™ 500.

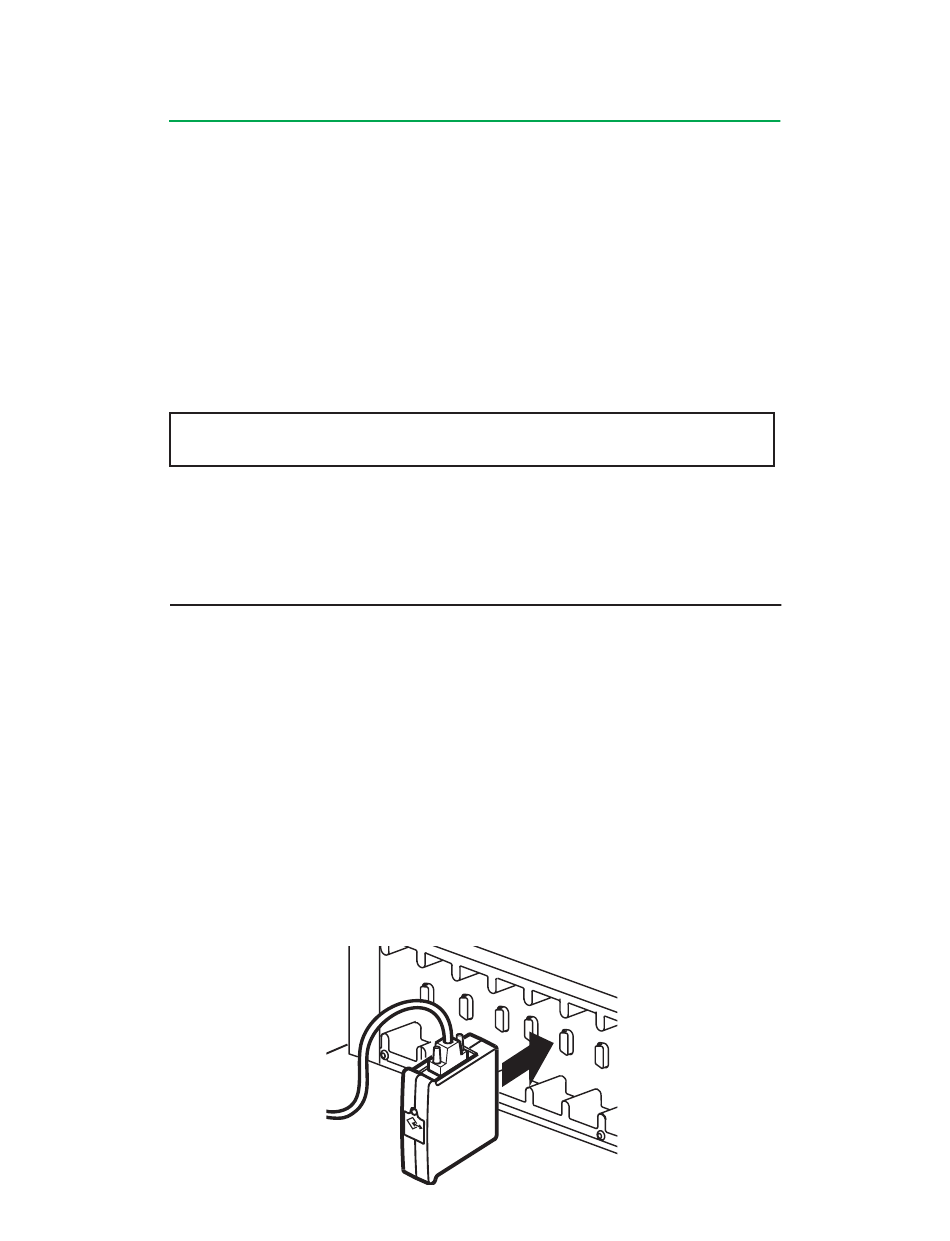

2. Insert module into base receptacle as close as possible to the location where the
monitor is located.
2
)
2
)
3
C D
I 5
0 0
7-35
Range of displayed values on
the CCM
10 to 500 mmHg
10 to 80 mmHg
6.8 to 8.0
10 to 45°C
60 to 100%
1.0 to 8.0 mmol/L
0 to 50 meq/L
-25 to 25 meq/L
5 to 15 g/dL
15 to 45 %
10 to 400 mL/min
