Terumo Advanced Perfusion System 1 Operator's Manual page 128

Central Control Monitor
Configure Perfusion Screen > Configure Pumps
Menu
Configure Pumps
Configure Other Devices
Edit Safety Connections
Assign Devices to Modules
Pumps:
Arterial
Vent
Sucker1
Sucker2
CPG
Edit >
Add >
Remove >
Place >
Save As >
Close
Add, Edit, Place,
Add, Edit, Place
and Remove buttons
and Remove buttons
Edit, Place, and Remove

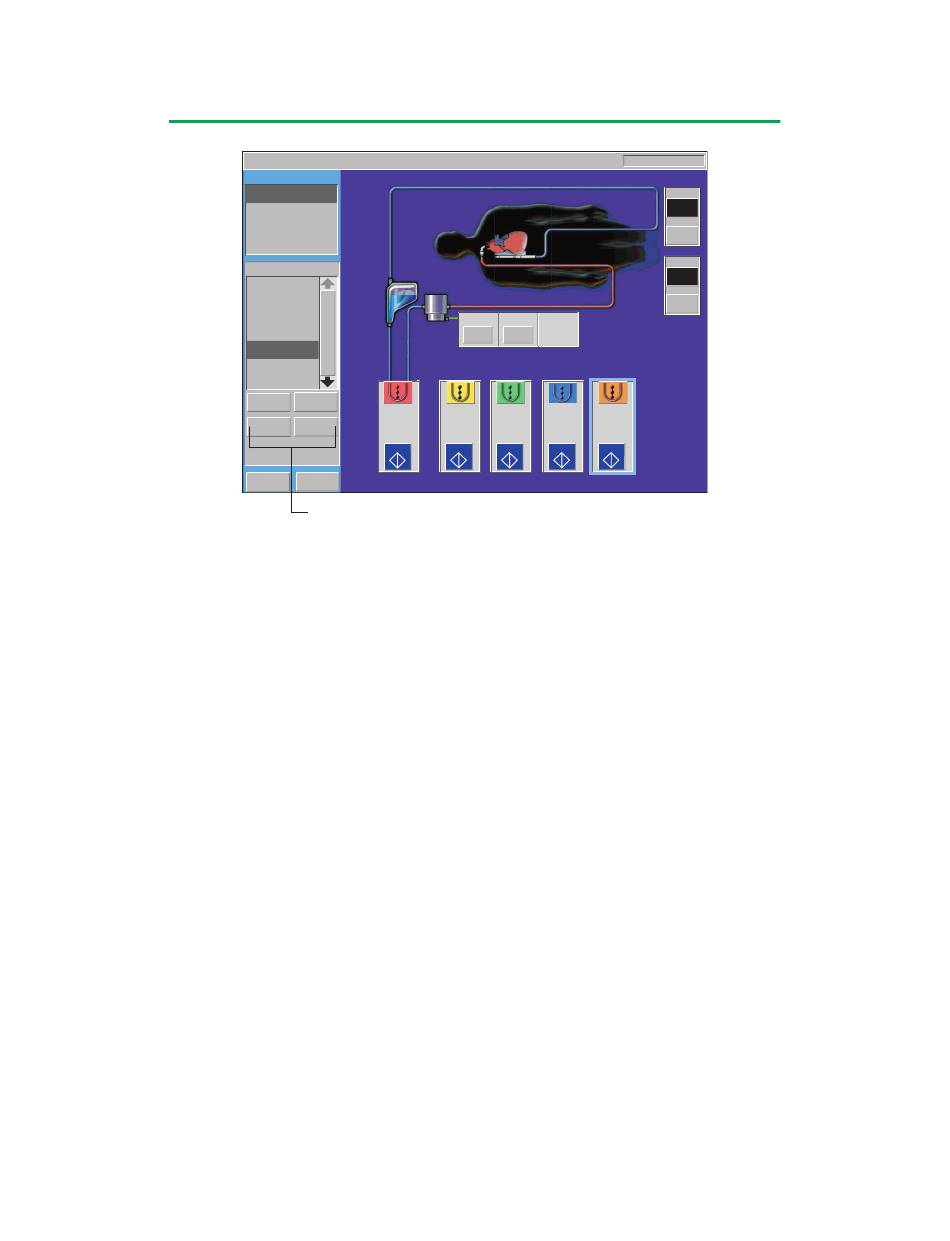

Use the Edit, Place and Remove buttons to change or revise the placement and
configuration of the pumps. Select the pump by touching its name on the list or its
icon on the screen.
Note: The primary pump may not be removed or relocated, nor can the pump type
be changed. The display units, name, and color chosen for the primary pump may be
edited.
Use the Edit button to change the designation, name, or color of a pump.
If the pump designation is edited, make sure to edit and then verify any safety
connections that may have been made to the pump. The safety connections must be
set up for the newly designated cardioplegia pump and removed from the previously
designated cardioplegia pump.
Use the Place button to change the location of the pump on the graphic display.
Use the Remove button to remove a pump from the graphic display.
