Safety Tab; Cpg Tab - Terumo Advanced Perfusion System 1 Operator's Manual

Central Control Monitor

Safety Tab

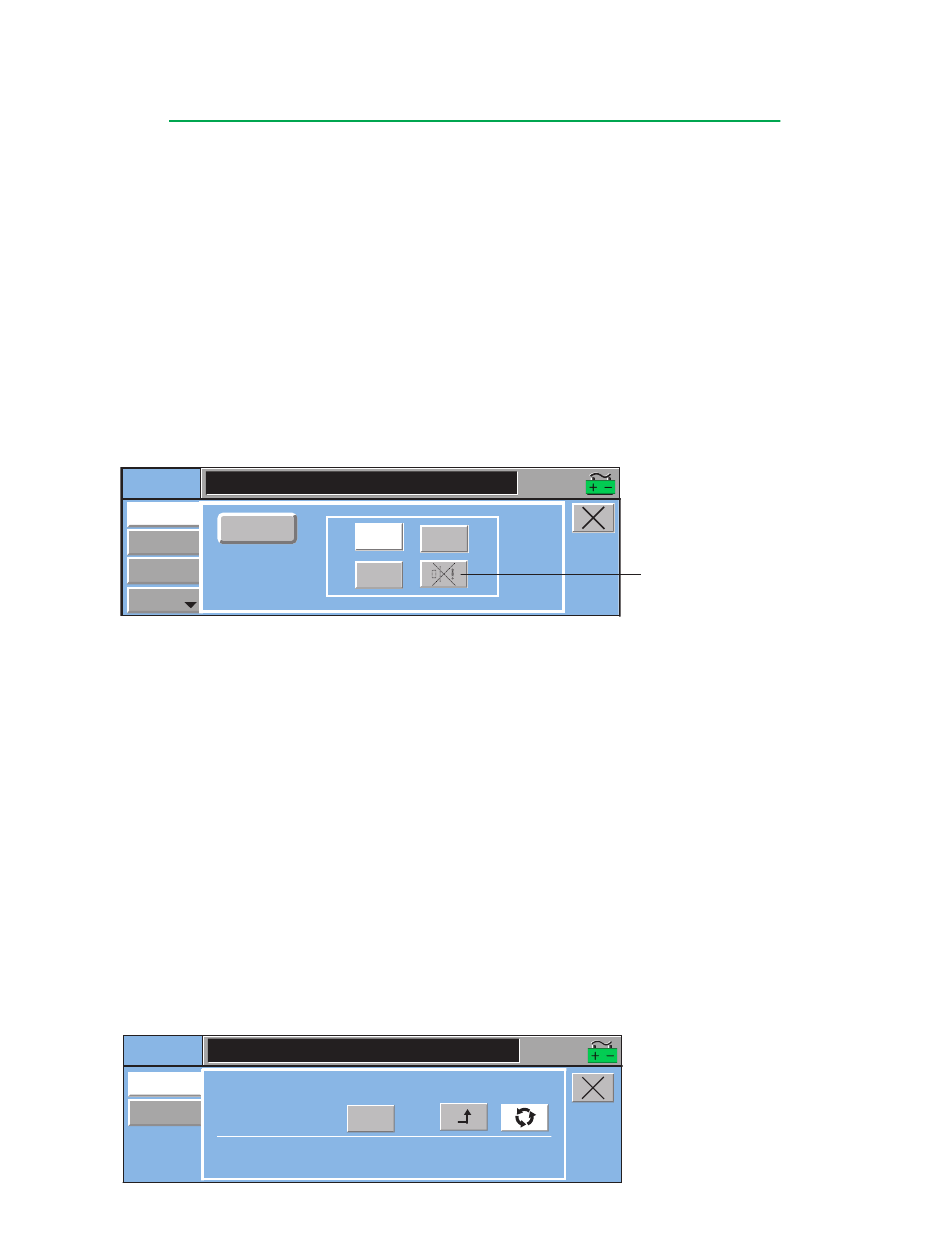

There are 5 subtabs within the Safety tab: Air, Level, Pressure, Temperature, and
Flow. If a device type was not configured for the Perfusion Screen, the name on the
subtab for that type of module cannot be selected. Use the Previous or Next buttons
to scroll through the subtabs.
Access an area by touching the subtab or by touching the device icon on the
Perfusion Screen.
If more than one sensor for a device type is assigned to a Perfusion Screen, toggle
through the sensor names by touching the button.
A Mute button appears in all the Safety subtabs. The Mute button becomes available
when the selected safety device has an active alarm or alert and will silence the
audible tone when pressed. If there is no active alarm or alert, the Mute button is
unavailable.
Safety
Air
ART Air
Level
Pressures
Next
For detailed information about operating safety systems from the CCM, see the
module chapters:
• Air Bubble Detection
Level Monitoring
•
Pressure Monitoring
•
• Temperature Monitoring
Flow Monitoring
•

CPG Tab

If a pump was identified as the cardioplegia pump during perfusion screen
configuration, this tab can be used to track cardioplegia volume delivery and can be
set up to deliver up to three separate cardioplegia doses based on delivery volume or
delivery time.
Delivery Subtab
The Delivery subtab calculates the current and total accumulated volume delivered
by the cardioplegia pump, based on the pump speed and tube size. A timer displays
the time since last delivery between cardioplegia doses. The Deliver and Recirculate
mode buttons enable and disable the cardioplegia volume tracking.
CPG
Time Since Last Delivery:
Delivery
Current Delivery:
Auto Dose
Setup
Total Delivery:
16:07:51
On
Off
Reset
16:07:51
000:00
Recirculate:
Deliver:
0
mL
0 mL
4-25
Touch the Mute Button to
silence an active alert or alarm
