Add Cdi™ Devices; Add A Cdi™ 500 - Terumo Advanced Perfusion System 1 Operator's Manual

Central Control Monitor

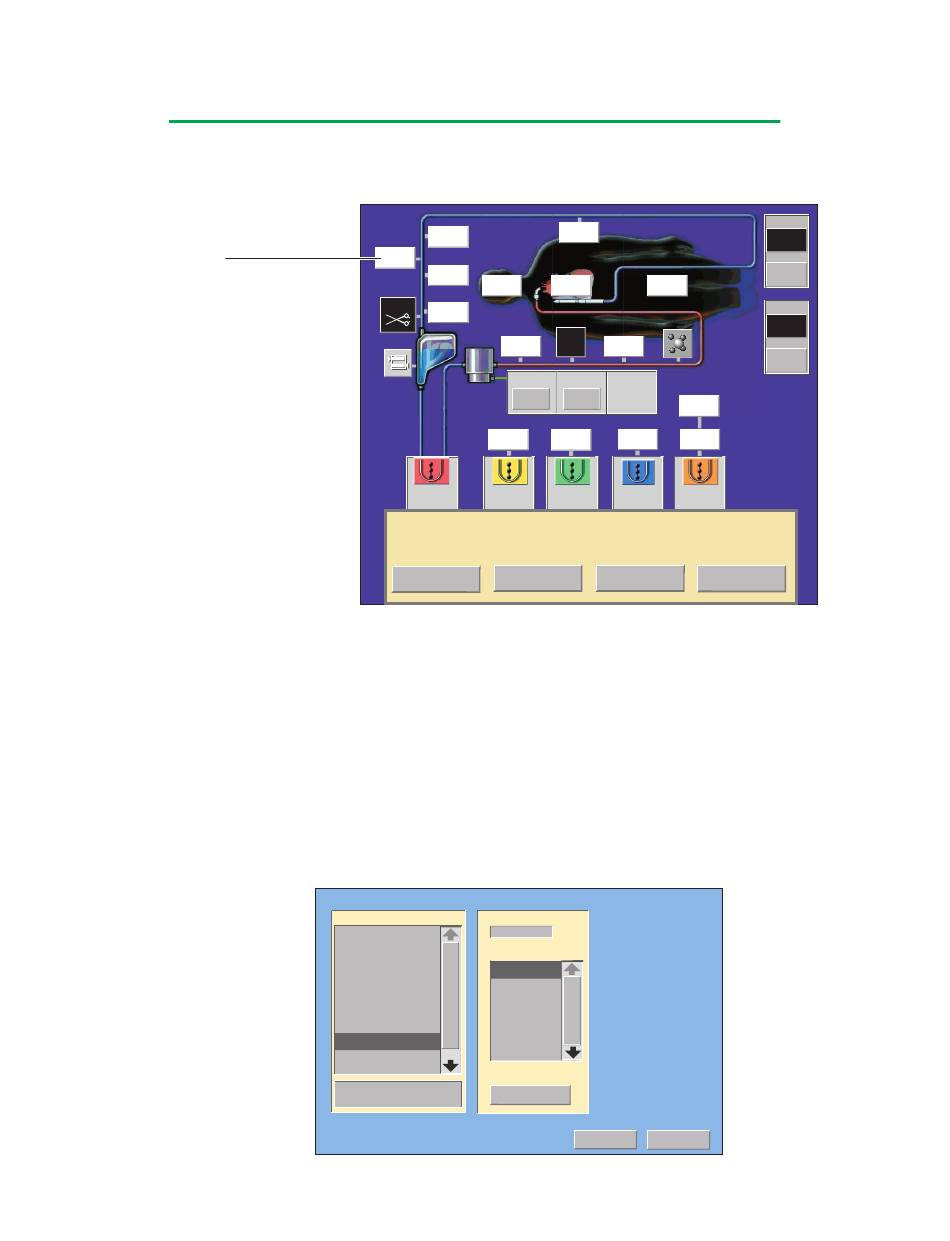

Place the Temperature Sensor
Place the temperature sensor by touching a white square. Change the placement of
the temperature sensor by touching any other white square.
Placing a device icon in
this location may interfere
with a CDI display icon.
Add CDI™ Devices
A CDI™ 100, CDI™ 101, or a CDI™ 500 monitor can be added to a Perfusion
Screen. If a CDI device is added, information from the CDI monitor will be displayed
on the CCM.
Add a CDI™ 100/101
Choose CDI™ 100/101 from the Select Device Type list.
Select Device Name
The device name CDI™ 100/101 is automatically chosen as only one monitor of
this type is allowed in a Perfusion Screen. This name is used in status and error
messages displayed by the system.
