Central Control Monitor
Automatic Dose Delivery
The Automatic Dose Delivery feature is used to select one of three cardioplegia
doses that automatically stop the pump once the dose has been delivered. This
feature is set up and enabled using the Auto Dose Setup subtab.
Refer to the Roller Pumps chapter, Roller Pump Messages section for details on
messages which will display in the display area on the front panel of the cardioplegia
pump.
Auto Dose Setup Subtab
View and Hide Buttons
Enable the Auto Dose Delivery feature:
1. Touch the View button (default is Hide).
• View button background turns white. The Hide button background turns gray.
• Auto Dose Screen appears on the lower half of the Delivery subtab.
Disable the Auto Dose delivery feature:
1. Touch the Hide button (default is Hide).
• Hide button background turns white. The View button background turns gray.
• Lower half of the Delivery subtab is blank.
Dose Setup
For each selection, Induction Dose, Maintenance Dose, and Other Dose:
1. Touch the Dose toggle button to display the desired units – mL or time (minutes
and seconds).
2. Touch the Dose Value button.
• The Dose Value button turns white. Adjustment arrows appear.
3. Use the arrows to modify the Dose Value. For mL, the small arrows change the
volume by 10 mL and the large arrows by 100 mL. For time, the small arrows
change the time by 1 sec and the large arrows change the value by 1 min.
4. Touch the Dose Value button again to confirm the value.
• The adjustment arrows disappear. The Dose Value button background turns gray.
• If the View button has been pressed, the value corresponding to the Auto Dose
selection appears on the Delivery subtab.
CPG
Delivery
Automatic Dose Delivery:
Auto Dose
Setup
Induction Dose:
1000

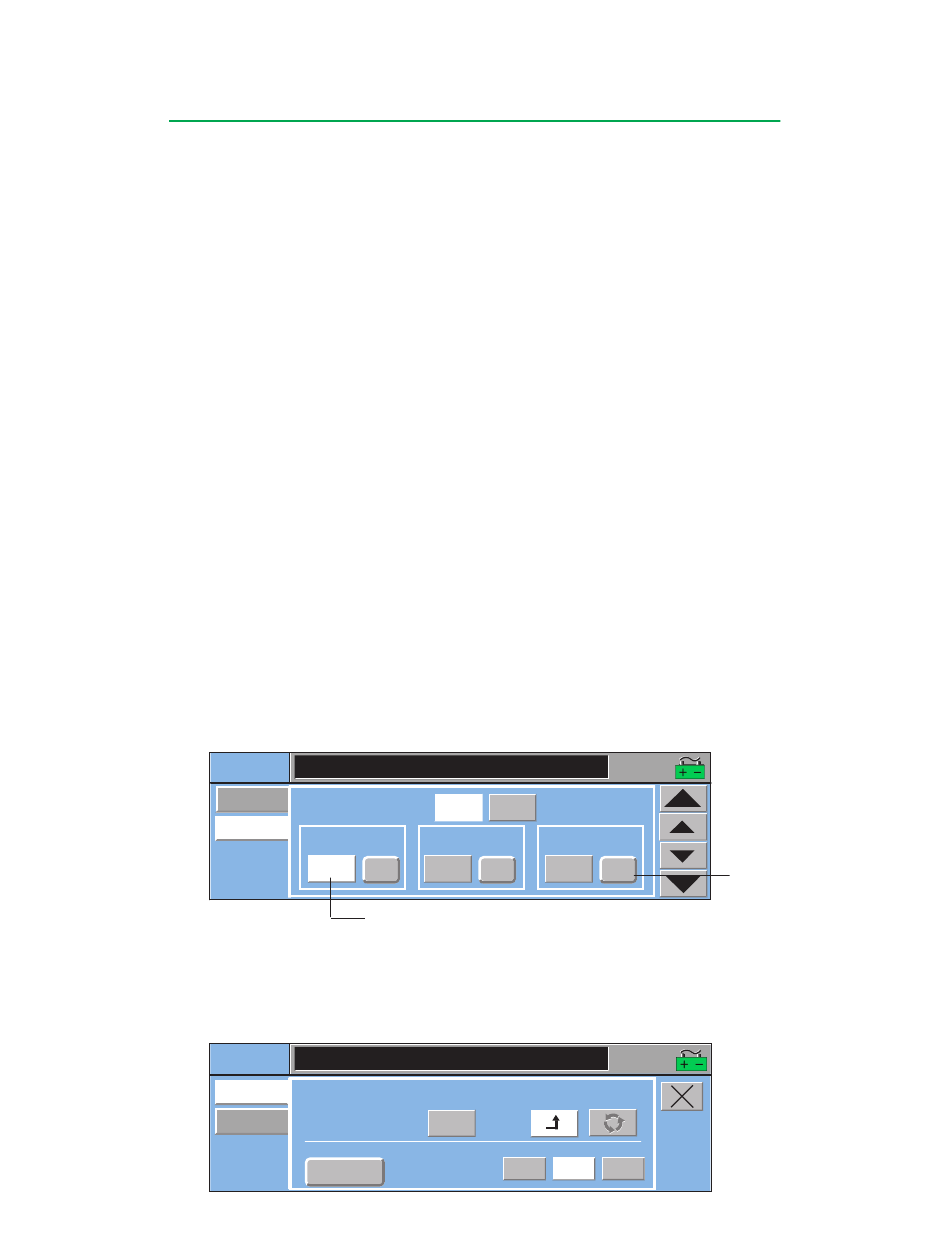

When Automatic Dose Delivery is enabled, the lower half of the Delivery subtab
displays a toggle button for selecting the auto dose, a Reset button to reset the dose
value after the automatic dose has been delivered, and two mode buttons - Auto
and Manual - used to initiate and stop auto dose delivery. The dose value cannot be
changed while the dose is being delivered.
CPG
Time Since Last Delivery:
Delivery
Current Delivery:
Auto Dose
Setup
Auto Dose Select:
Maintenance Maintenance
View Hide
Maintenance Dose:
mL
mL 0
Dose Value Button
11:48
63
mL
1614 1614 mL
Total Delivery:
137 mL
Reset Reset
4-28
16:07:51
Other Dose:
0
mL
16:07:51
Recirculate:
Deliver:
Auto Manual
Dose Toggle
Button
• mL
• Time
