Primary Pump - Terumo Advanced Perfusion System 1 Operator's Manual

Central Control Monitor
To Open a Perfusion Screen:
1. Touch the Perfusion Screen name. The selected screen will be highlighted.
2. Touch the Open button.
3. Enter password if the screen is password protected. The CCM will open and
display the Perfusion Screen. When a Perfusion Screen is opened, the status
of all devices that are a part of the Perfusion Screen will change from offline to
online. Online pumps display the pump name and the LED of online modules is
constant green.
Arterial
0.000
L/min
SO2
%
HCT
%
10.78
Arterial
L/min
START
0
Setup

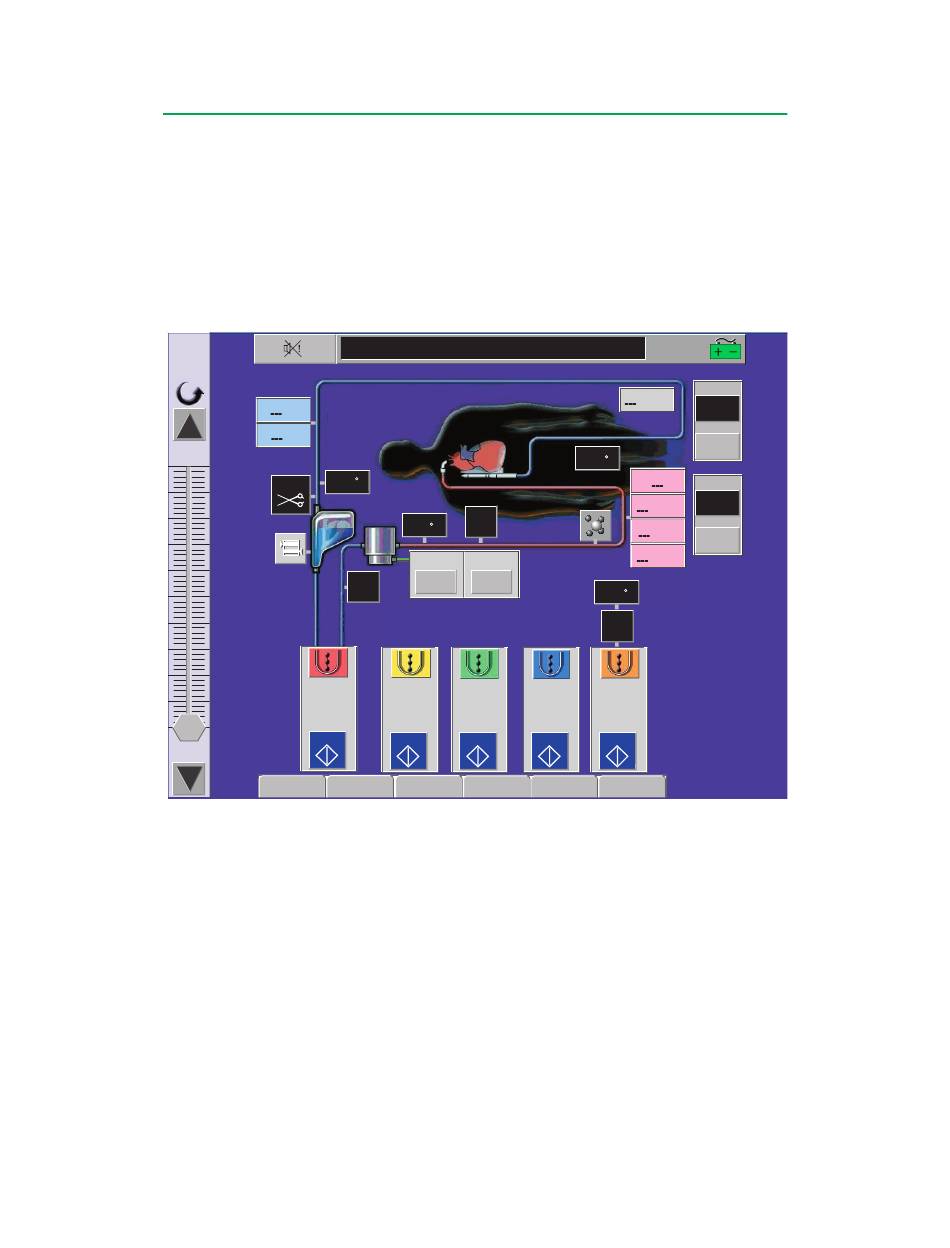

Perfusion Screen
Although a Perfusion Screen can be customized to accommodate many different
perfusion setups, all Perfusion Screens share some common characteristics including
the patient and perfusion circuit graphics, message area, system time, power source/
battery status icon, primary pump, pump and clamp timers, pump control area, tabs,
control slide bars, and device icons.

Primary Pump

A Perfusion Screen must have a primary pump, usually the arterial pump, designated
in the Configuration area. The controls and displays for this pump are always
displayed on the right or left side of the Perfusion Screen.
