Central Control Monitor
Functional Areas

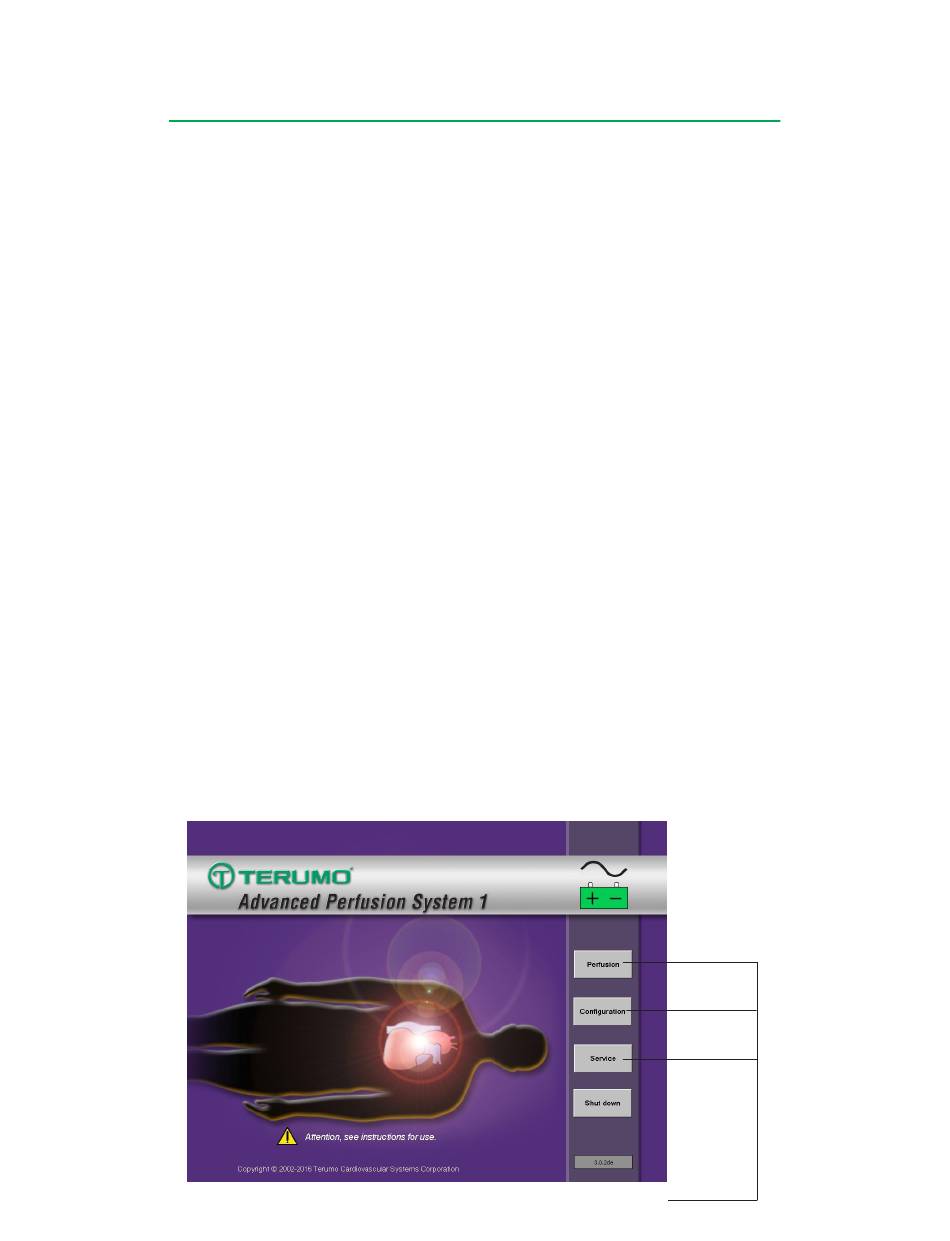

The CCM has 3 functional areas: Perfusion, Configuration, and Service.
The main screen allows access to these functional areas and provides access to
initiate a controlled system shut down.
The Perfusion area allows the user to select a Perfusion Screen and run a case.
In preparation to run a case, patient information can be entered, calibrations can
be performed, and safety system limits can be checked, modified if needed, and
activated. During use, the CCM can be used to control and monitor all system
modules and devices. The CCM monitors the system for any alert, alarm, error, or
status messages and displays the highest priority message in a dedicated message
area. The user can also initiate advanced functionality such as primary pump
Pulse mode, flow and pressure servo regulation, cardioplegia volume tracking, and
automatic cardioplegia time or volume delivery.
The Configuration area of the CCM is used to define Perfusion Screens including
number and names of modules and devices, assignment of screen icons to physical
devices, safety system connections, and selection of alert and alarm limits. The
displays are organized around a patient graphic representation for identification of
system data.
The Service area is password protected and allows an authorized user to:
• View system log
• Export system logs, module logs, and Perfusion Screens to an external computer
via the service data card
• View module error event data
• Manage security access controls
• View system software version control area
• Upgrade CCM and/or module software
• Calibrate the touch screen.
The Shut down button provides a controlled system shut down and must be used
before turning power off to the system base. Failure to follow the controlled shut
down procedure may result in improper start-up at the next power-on.
