Configure Other Devices

Configure and add other devices to the Perfusion Screen through the Configure
Other Devices menu selection.
Air Detector
Level Detector
Occluder
Pressure Sensor
Flow Sensor
Temperature Sensor
CDI™ 100/101 or CDI™ 500
Timers
Note: Two of the 4 timers are designated as Pump and Clamp timers.

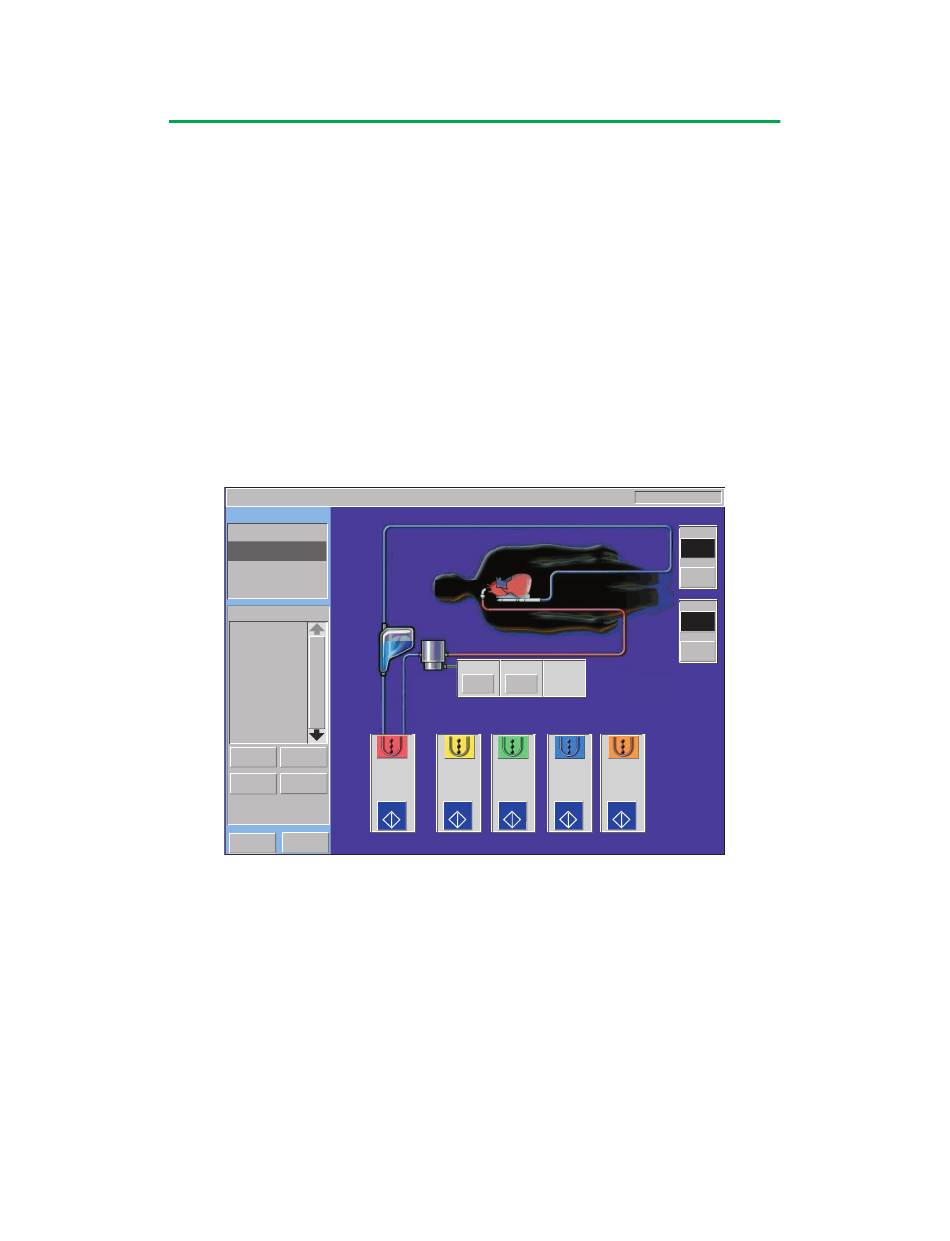

Configure Perfusion Screen > Configure Other Devices
Menu
Configure Pumps
Configure Other Devices
Edit Safety Connections
Assign Devices to Modules
Devices:
Add > Edit > Edit >
Remove >
Place > Place > Remove >
Save As > Close
When placing devices, consider the appropriate location for the device currently
being placed, and also appropriate locations for devices yet to be placed as devices
cannot share locations. The Do Not Place button can be used to move devices on the
graphic display. All devices except timers and the backup pump will be removed from
the Perfusion Screen if they are not placed before the screen is closed.
If using a CDI monitor, it is recommended to add the CDI device before adding
other devices. The CDI icons have fixed locations on the screen. Placement of the
pressure, flow, and temperature icons in certain areas can interfere with the CDI icon
placement.
Maximum allowed
4
1
1
8
4
8
1
4
