Roller Pumps

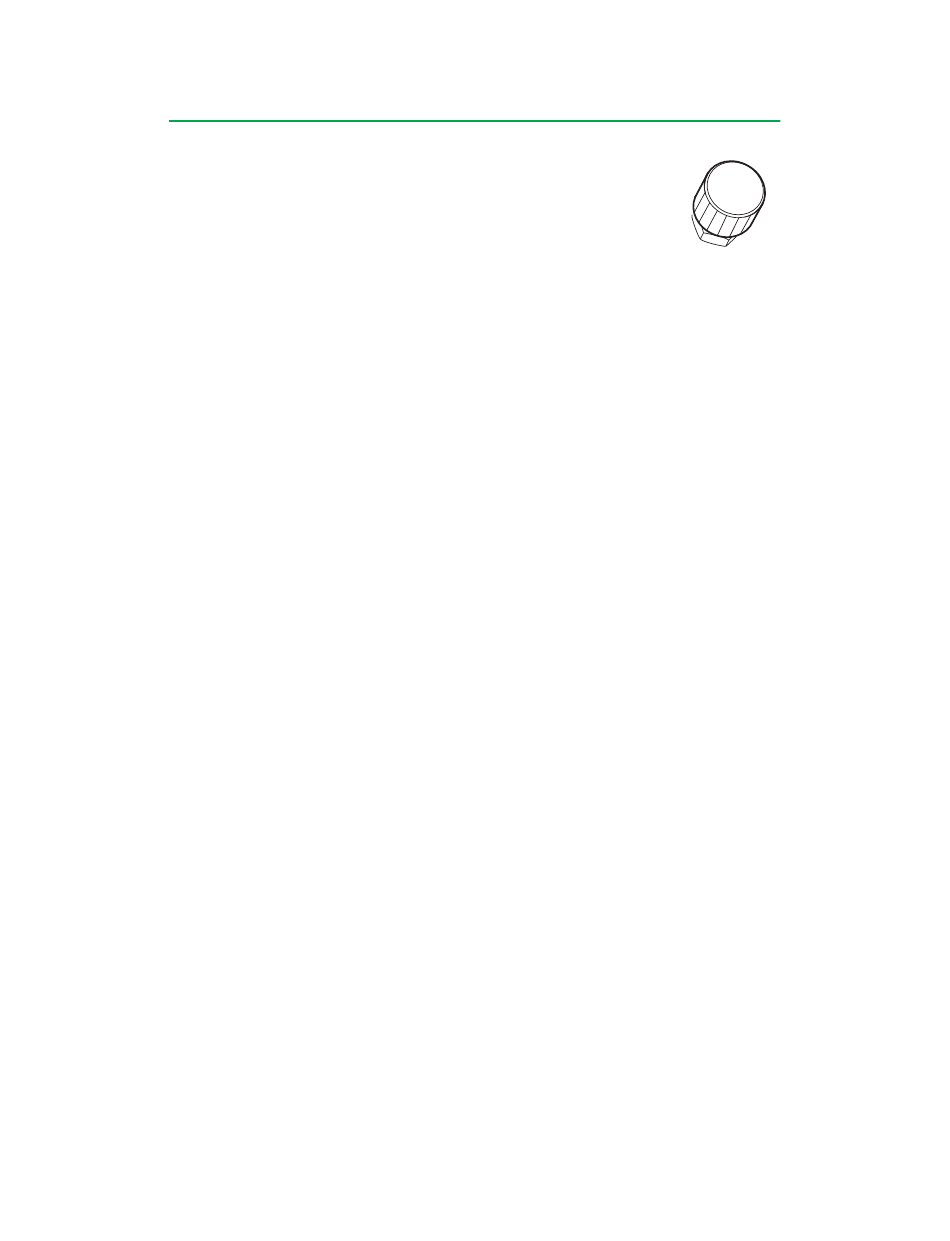

Pump Speed Control Knob
Use the pump speed control knob to set the pump speed. Turning the
knob clockwise increases the speed, counterclockwise decreases the
speed. Always use the Start/Stop button to stop the pump.
Note: The roller pump does not deactivate at 0 RPM or a flow of 0.000
L/min. This is different than the centrifugal pump behavior which does
stop and deactivate at 0 RPM.
Primary Display
This area displays the pump speed in RPMs or the flow rate in L/min according to the
following operating parameters:
• Liters/min
Small Pump Range: 0-4.0 L/min
Resolution: 0.001 at 0-1 L/min
0.01 at 1-4 L/min
Large Pump Range: 0-10.0 L/min
Resolution: 0.001 at 0-1 L/min
0.01 at 1-10 L/min
• RPM
Pump Range: 0-250 RPM
Resolution: 1 RPM
Secondary Display
This area displays various information depending on the pump mode.
• Servo Source setpoint in Servo mode
• Total flow in Master Mode
• Master/Follower percentage or ratio in Follower mode
Pump Direction
Circular arrow symbol indicates the pump default forward direction.
Message Area
• Internal alert, alarm, status, and error messages are displayed here.
• External messages related to safety connection alerts and alarms, including the
external event, are also displayed.
Mode Symbol
Appears to the left of the primary display to indicate current operating mode:
Pulse, Master, Follower, and Servo.
Bar Graph
Indicates the demand from the pump speed control knob relative to the maximum
speed or flow or, if the pump is configured as a follower, the percentage of the master
pump flow.
Tube Size
Displays tube size or flow constant selected to calculate pump flow.
Pump Name
This area displays the pump name. During the start-up self-test, the pump's Module
ID is displayed.
