Temperature Monitoring

A Perfusion Screen can be configured to monitor up to 8
temperature locations through the use of 4 modules with
each module having 2 channels. The temperature monitoring
system provides high temperature alarm monitoring for each
temperature channel. The system measures temperature in
the range of 0.0 to 50.0°C with an accuracy of ± 0.3°C and
display resolution of 0.1°C.
For temperatures below this range or if a probe is
disconnected, the temperature icon will display "– – – °C".
For temperatures above this range or if a probe is partially
connected, the temperature icon will display "999 °C".
The temperature icon is blank if the temperature system malfunctions. Once a
temperature probe is connected to the circuit, it does not need to be calibrated or
turned on to enable temperature monitoring.
In order to maintain electrical isolation in accordance with applicable standards,
insulated temperature probes must be used.
YSI Series 400 compatible probes, with the exception of Model 416, must be used in
order to monitor temperature properly with System 1.
WARNING: Use only the specified temperature probes and pressure transducers
to ensure that the temperature and pressure monitoring function properly.

Label Probe

Mark both ends of each temperature probe cable with identical codes, using the
correct size of marker from the accessories kit.

Connect Probe and Module

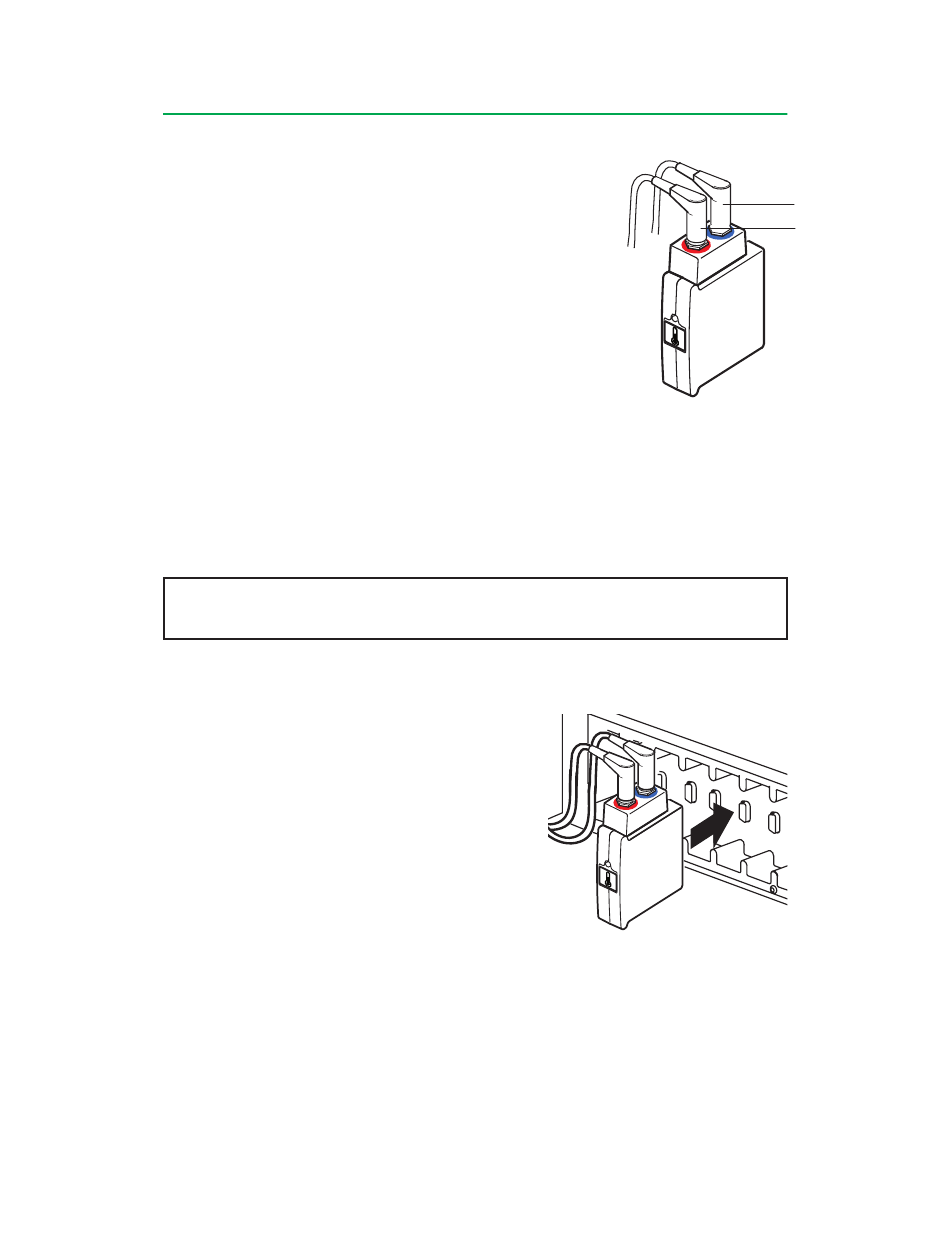

1. Connect the temperature probe to the correct
channel on the temperature module.
• Each temperature channel is assigned
separately during configuration. Temperature
cables must be attached to the proper
channel for the temperature reading to
display in the correct location on the
Perfusion Screen.
2. Insert temperature module into any base
receptacle as close as possible to the
location where the probe will be used.
Arrange cables to minimize exposure to
spills.
7-21
Channel 1
Channel 2
