Slide Bars - Terumo Advanced Perfusion System 1 Operator's Manual

Central Control Monitor
Pump Icon
The symbol on the pump icon button indicates whether a pump is a roller or
centrifugal pump. When the pump is running, the icon will spin in relation to the pump
speed. The roller pump icon also reflects the direction of rotation. Touching the pump
icon button opens the Pump tab. See the Perfusion Screen Tabs, Pumps subtab
section for more details.

Slide Bars

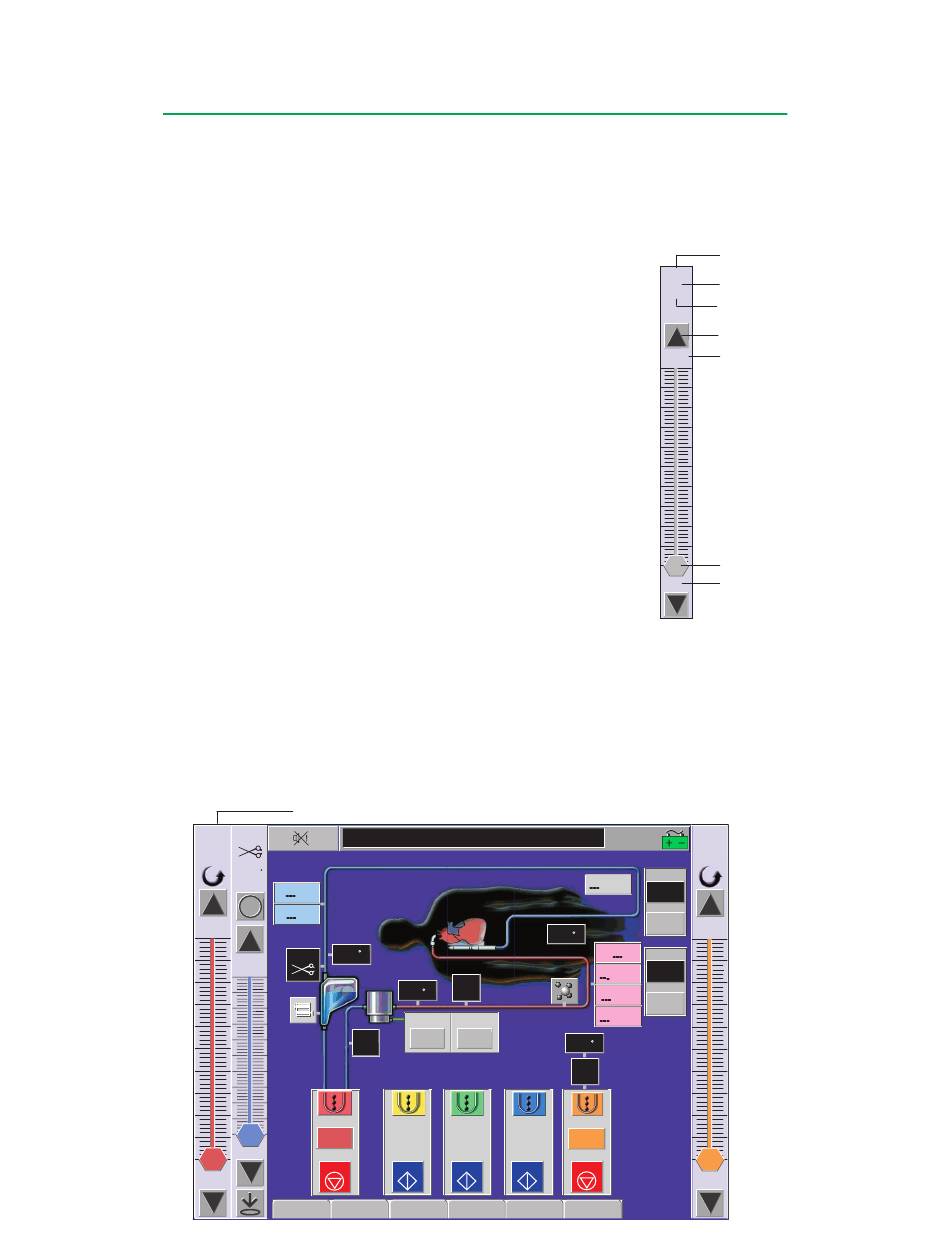

Slide bars are vertical bars located on either side of the Perfusion
Screen that are used to control roller and centrifugal pump
speeds, occluder position, total gas flow rate, and the FiO
All slide bars include a device name, set point display, display
units, adjustment arrows, maximum and minimum value labels,
and a scroll control. The central strip and scroll control are color
coded to match the device color. When operating a slide bar from
a shared location, ensure that the slide bar displayed is for the
device you intend to operate.
To adjust an active slide bar:
1. Touch and hold the slide bar scroll control.
2. Slide the scroll control to the desired slide bar position. The
set point display should display the new setting.
3. Use the adjustment arrows to make fine adjustments.
Each pump has a corresponding slide bar which is used to adjust
its speed on the CCM. While in a Perfusion Screen, the primary
pump slide bar is always displayed and is configured to appear
on the right or left side of the Perfusion Screen. All other pumps share a slide bar
location on the side opposite the primary pump slide bar.
Primary Pump Slide Bar
While in a Perfusion Screen, the primary pump slide bar is always displayed on the
same side as the primary pump. All other pump slide bars appear one at a time in a
single location on the side opposite the primary pump slide bar when the pump speed/
flow display button is pressed.
Primary Pump Slide Bar
