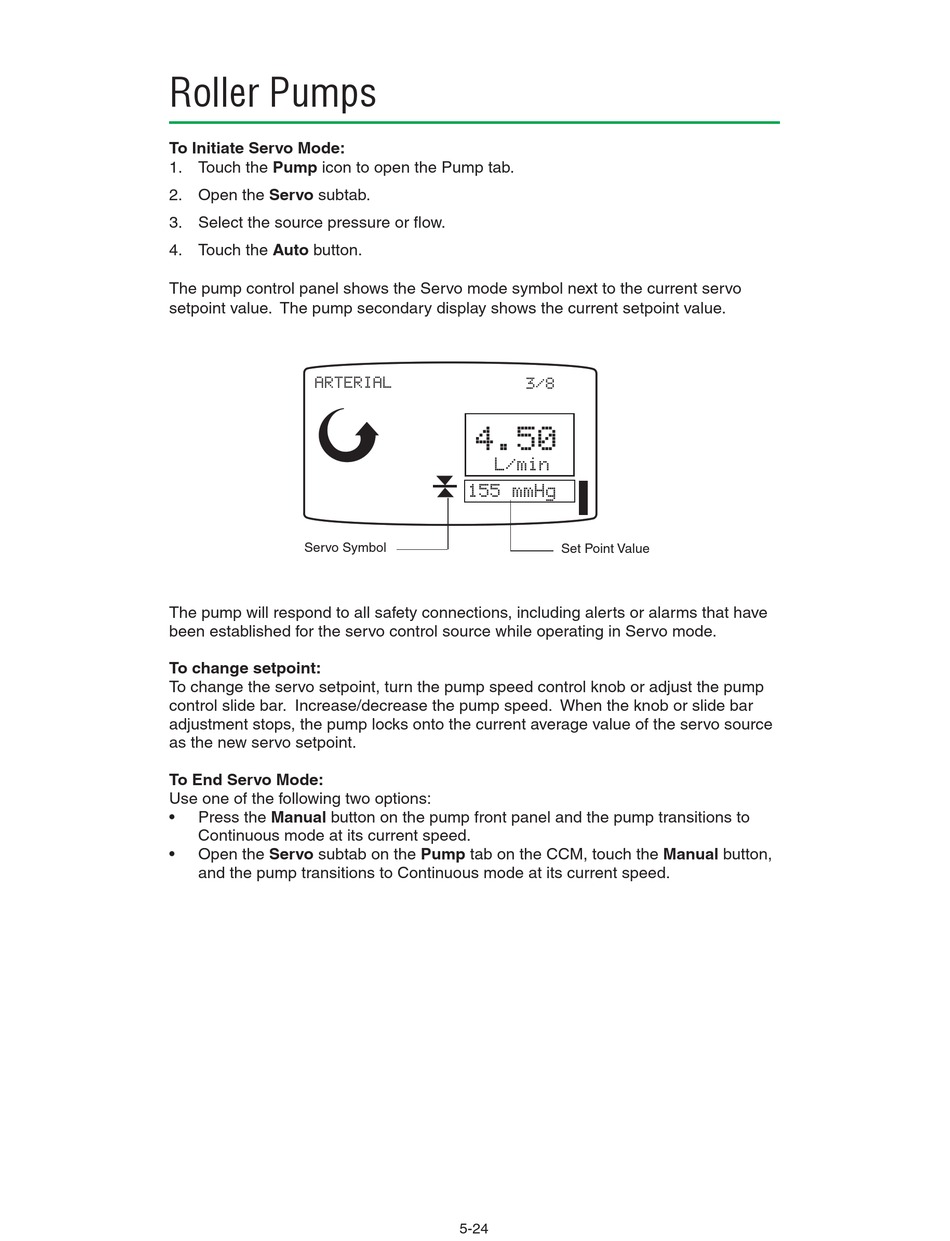

Roller Pumps
To Initiate Servo Mode:
1. Touch the Pump icon to open the Pump tab.
2. Open the Servo subtab.
3. Select the source pressure or flow.
4. Touch the Auto button.
The pump control panel shows the Servo mode symbol next to the current servo
setpoint value. The pump secondary display shows the current setpoint value.
ARTERIAL
Servo Symbol
The pump will respond to all safety connections, including alerts or alarms that have
been established for the servo control source while operating in Servo mode.
To change setpoint:
To change the servo setpoint, turn the pump speed control knob or adjust the pump
control slide bar. Increase/decrease the pump speed. When the knob or slide bar
adjustment stops, the pump locks onto the current average value of the servo source
as the new servo setpoint.
To End Servo Mode:
Use one of the following two options:
• Press the Manual button on the pump front panel and the pump transitions to
Continuous mode at its current speed.
Open the Servo subtab on the Pump tab on the CCM, touch the Manual button,
•
and the pump transitions to Continuous mode at its current speed.
3/8
4.50
L/min
155 mmHg
Set Point Value
5-24
