Terumo Advanced Perfusion System 1 Operator's Manual page 289

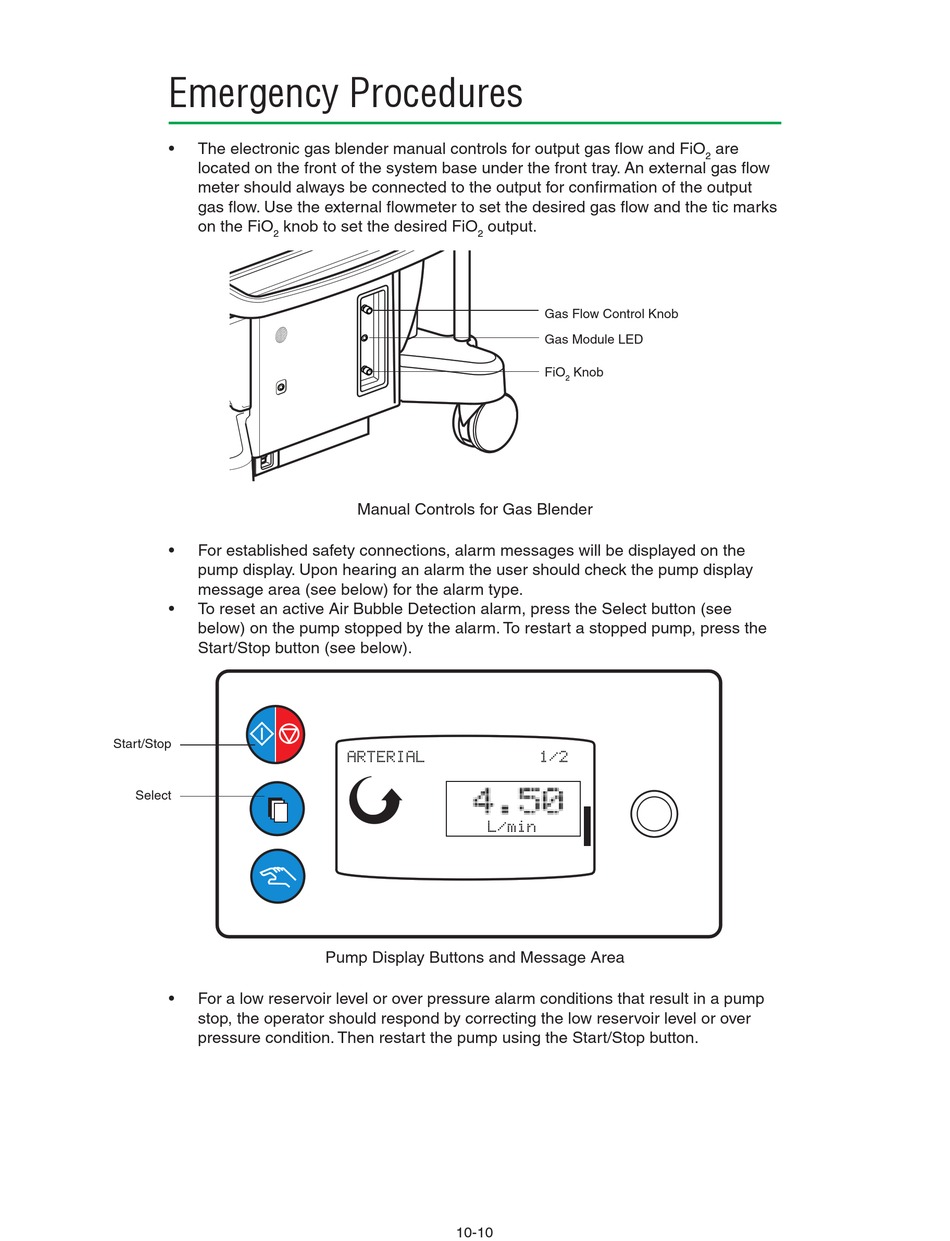

Emergency Procedures
• The electronic gas blender manual controls for output gas flow and FiO
located on the front of the system base under the front tray. An external gas flow
meter should always be connected to the output for confirmation of the output
gas flow. Use the external flowmeter to set the desired gas flow and the tic marks
on the FiO knob to set the desired FiO
2
• For established safety connections, alarm messages will be displayed on the
pump display. Upon hearing an alarm the user should check the pump display
message area (see below) for the alarm type.
• To reset an active Air Bubble Detection alarm, press the Select button (see
below) on the pump stopped by the alarm. To restart a stopped pump, press the
Start/Stop button (see below).
Start/Stop
Select
• For a low reservoir level or over pressure alarm conditions that result in a pump
stop, the operator should respond by correcting the low reservoir level or over
pressure condition. Then restart the pump using the Start/Stop button.
output.
2
Manual Controls for Gas Blender
ARTERIAL
L/min
READY: PRESS START
Pump Display Buttons and Message Area
10-10
are
2
Gas Flow Control Knob
Gas Module LED
FiO Knob
2
1/2
