6.6

Control Terminals

The control and software functionality can be configured as required to ensure a
reliable and economical operation. The operating instructions describe the factory
settings of the standard connections in the relevant
software parameters to be set up.
CAUTION
The unit may only be connected with the power supply switched off.
Verify that the frequency inverter is discharged.
Switch off power supply before connecting or disconnecting the control inputs and
outputs. Verify that the keyed control inputs and outputs are deenergized before
connecting or disconnecting them. Otherwise, components may be damaged.
70

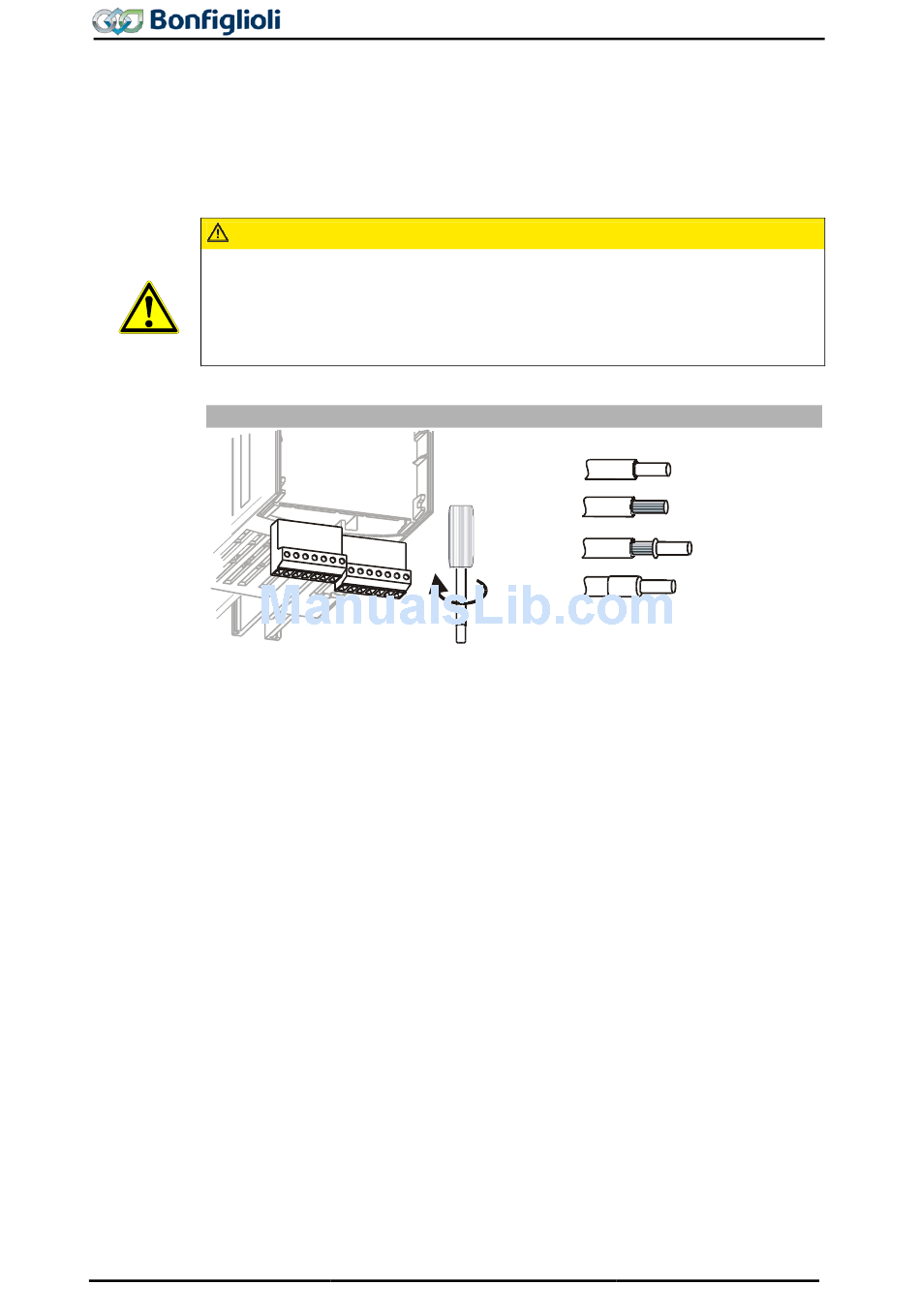

Control Terminals
0.2 ... 0.3 Nm
1.8 ... 2.7 lb-in
Operating Instructions ACU
30 as well as the
Configuration
Wieland DST85 / RM3,5
0.14 ... 1.5 mm
AWG 30 ... 16
0.14 ... 1.5 mm
AWG 30 ... 16
0.25 ... 1.0 mm
AWG 22 ... 18
0.25 ... 0.75 mm
AWG 22 ... 20
2
2
2
2
06/13
