6.7.9 Configuration 510 – FOC of Synchronous Machine, Speed Controlled
An expansion module EM-RES for evaluation of resolver signals is required for opera-
tion of a synchronous machine (control method 5xx).
An expansion module EM-ABS is required for evaluation of Absolute encoders (Hiper-
face, EnDat2.1, SSI).
Comply with the operating instructions for the expansion module for the connection of
the resolver or absolute encoder.
Configuration 510 contains the functions for speed-controlled, field-oriented control
of a synchronous machine with resolver feedback. The separate control of torque and
flux-forming current enables high drive dynamics with a high load moment. The nec-
essary resolver feedback results in a precise speed and torque performance.

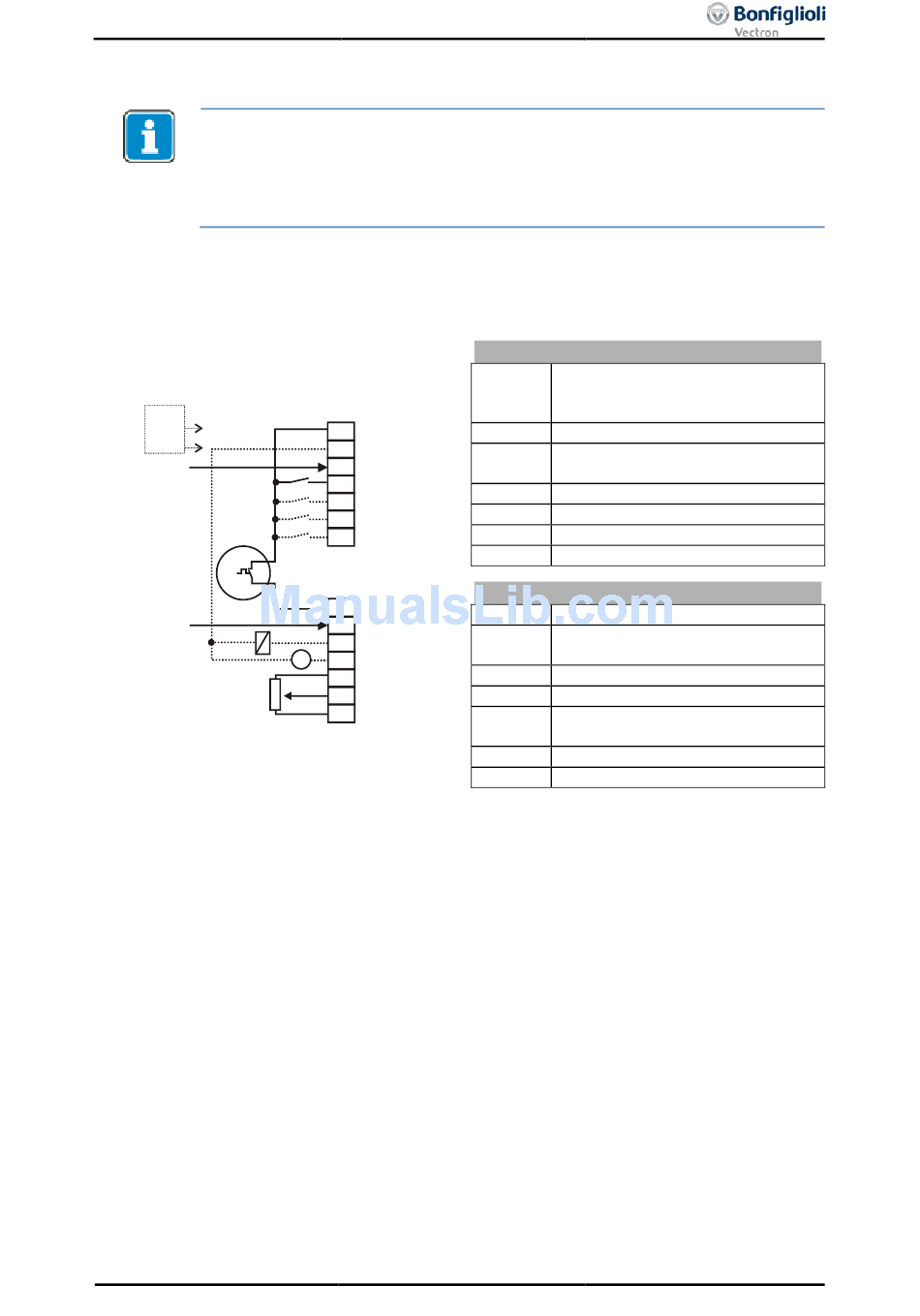

24 V
ext.
STOA
M
STOB
-
06/13
X210A
1 +20 V/180 mA
GND 20 V
2
3
S1IND
S2IND
4
5
S3IND
6
S4IND
7
S5IND
X210B
1 S6IND
S7IND
2
+
S1OUT
3
-
+
MFO1A
V
4
+10 V/4 mA
5
6 MFI1A
GND 10 V
7
Operating Instructions ACU
Control terminal X210A
X210A.1 Voltage output +20 V or input for
external power supply DC 24 V
±10%
X210A.2 GND 20 V/ GND 24 V (ext.)
X210A.3 Digital input STOA (1st shutdown
path of safety function STO)
X210A.4 Start of clockwise operation
X210A.5 Start of anticlockwise operation
X210A.6 Data set change-over 1
X210A.7 Data set change-over 2
Control terminal X210B
X210B.1 Motor thermal contact
X210B.2 Digital input STOB (2
path of safety function STO)
X210B.3 Run Signal
X210B.4 Analog signal of actual frequency
X210B.5 Supply voltage +10V for reference
value potentiometer
X210B.6 Reference speed 0 ...+10V
X210B.7 Ground 10 V
nd
shutdown
81
