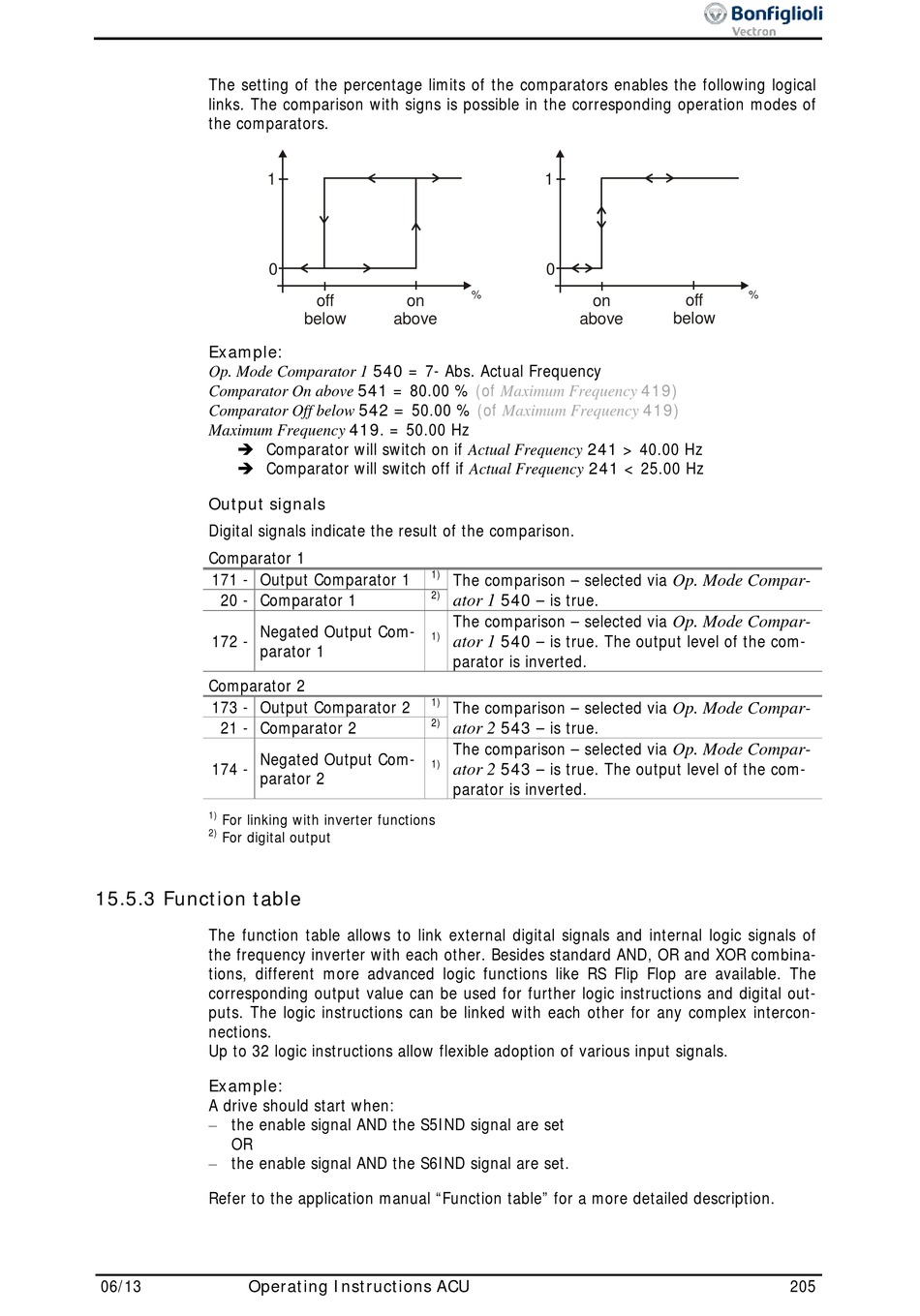

The setting of the percentage limits of the comparators enables the following logical
links. The comparison with signs is possible in the corresponding operation modes of
the comparators.
1
Example:
Op. Mode Comparator 1 540 = 7- Abs. Actual Frequency
Comparator On above 541 = 80.00 %
Comparator Off below 542 = 50.00 %
Maximum Frequency 419. = 50.00 Hz
 Comparator will switch on if Actual Frequency 241 > 40.00 Hz
 Comparator will switch off if Actual Frequency 241 < 25.00 Hz
Output signals
Digital signals indicate the result of the comparison.
Comparator 1
171 - Output Comparator 1
20 - Comparator 1
Negated Output Com-
172 -
parator 1
Comparator 2
173 - Output Comparator 2
21 - Comparator 2
Negated Output Com-
174 -
parator 2
1)
For linking with inverter functions
2)
For digital output

15.5.3 Function table

The function table allows to link external digital signals and internal logic signals of
the frequency inverter with each other. Besides standard AND, OR and XOR combina-
tions, different more advanced logic functions like RS Flip Flop are available. The
corresponding output value can be used for further logic instructions and digital out-
puts. The logic instructions can be linked with each other for any complex intercon-
nections.
Up to 32 logic instructions allow flexible adoption of various input signals.
Example:
A drive should start when:
− the enable signal AND the S5IND signal are set
OR
− the enable signal AND the S6IND signal are set.
Refer to the application manual "Function table" for a more detailed description.
Operating Instructions ACU
06/13
0
off
on
below
above
1)
2)
1)
1)
2)
1)
1
0
%
on
above
(of Maximum Frequency 419)
(of Maximum Frequency 419)
The comparison – selected via
540 – is true.
ator 1
The comparison – selected via
540 – is true. The output level of the com-
ator 1
parator is inverted.
The comparison – selected via
543 – is true.
ator 2
The comparison – selected via
543 – is true. The output level of the com-
ator 2
parator is inverted.
%
off
below
Op. Mode Compar-
Op. Mode Compar-
Op. Mode Compar-
Op. Mode Compar-
205
