15.5.1.1 Timer – Time Constant
The logic sequence of input and output signals is to be set separately for both timer
functions via the time constants. The default parameter values result in a direct link
of the input and output signal without a delay.
Before starting the timer, select the operation mode and set the time constants in or-
der to avoid non-defined states.
Select operation mode for:
Operation Mode Timer 1
Operation Mode Timer 2
No.
791 Time 1 Timer 1, signal delay
792 Time 2 Timer 1, signal duration
794 Time 1 Timer 2, signal delay
795 Time 2 Timer 2, signal duration

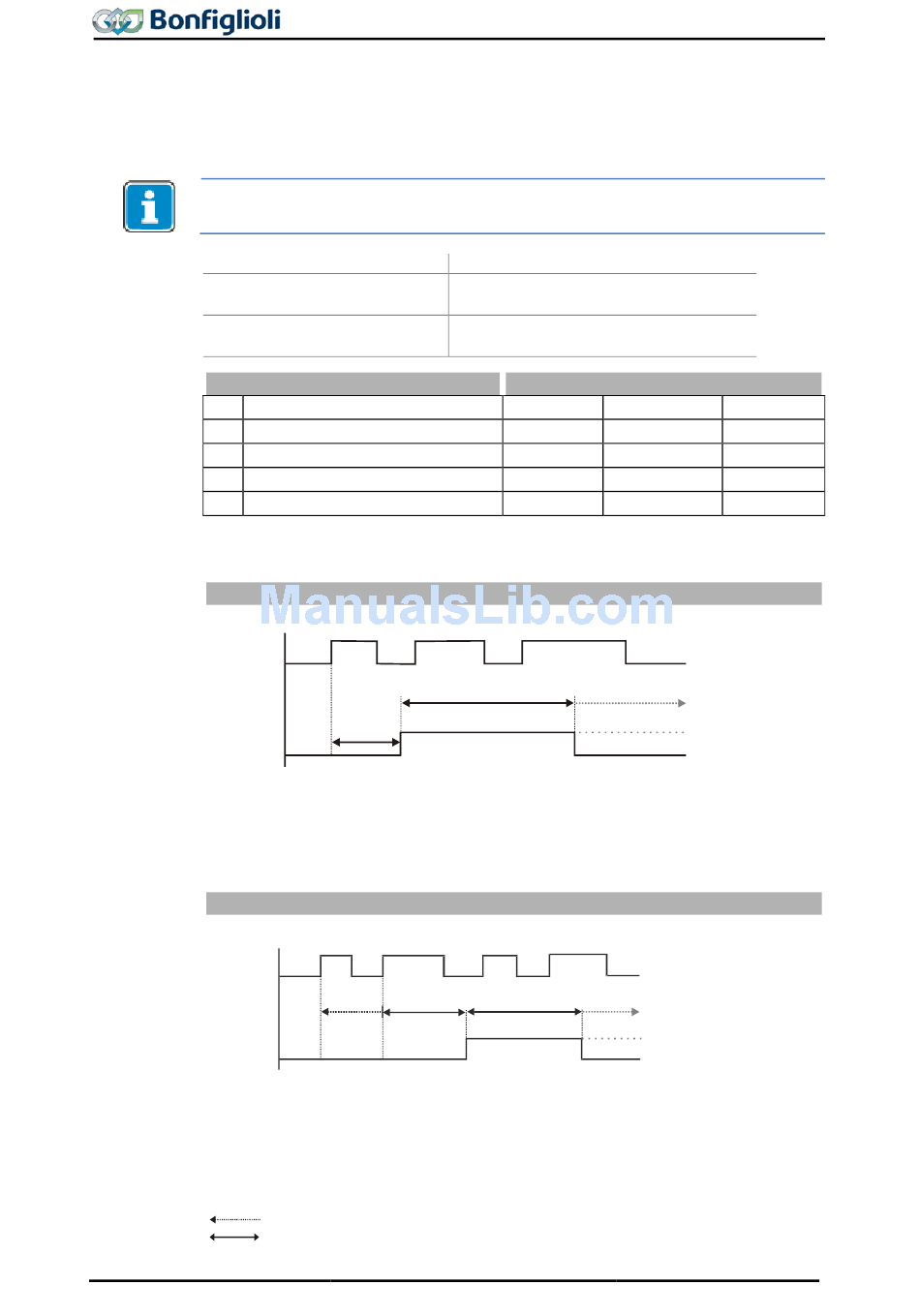

Examples of the timer function depending on the selected operation mode and the
input signal:
Parameter
Input
Output
As soon as the positive signal edge is received at the input, time 1 (signal delay)
starts. After the expiry of time 1 (signal delay), the output signal is switched on for
time 2 (signal duration).
In the settings of signal duration (
= 0) the timer does not reset the output signal.
Parameter
Input
Output
As soon as the positive signal edge is received at the input, time 1 (signal delay) is
started. If a positive signal edge is detected within time 1(signal delay), time 1 starts
again. After the expiry of time 1 (signal delay), the output signal is switched on for
time 2 (signal duration).
In the settings of signal duration (
= 0) the timer does not reset the output signal.
: Time not run out completely
: Time run out completely
202
Set time constants in:
790
Time 1 Timer 1
Time 2 Timer 1
793
Time 1 Timer 2
Time 2 Timer 2
Parameter
Description
Normal, positive edge
Operation Mode Timer 1
Time 2
Time 1
Time 2 Timer 1
Retrigger, positive edge
Operation Mode Timer 1
Time 1 Time 1
Time 2 Timer 1
Operating Instructions ACU
791 (signal delay)
792 (signal duration)
794 (signal delay)
795 (signal duration)
Settings
Min. Max.
0.00 s/m/h 650.00 s/m/h
0.00 s/m/h 650.00 s/m/h
0.00 s/m/h 650.00 s/m/h
0.00 s/m/h 650.00 s/m/h
790 or
Operation Mode Timer 2
Factory setting (Time 2 = 0)
792 = 0 and
790 or
Operation Mode Timer 2
Facory setting (Time 2 = 0)
Time 2
792 = 0 and
Fact. sett.
0.00 s/m/h
0.00 s/m/h
0.00 s/m/h
0.00 s/m/h
793 = 1
795
Time 2 Timer 2
793 = 2
795
Time 2 Timer 2
