7.1

Menu Structure

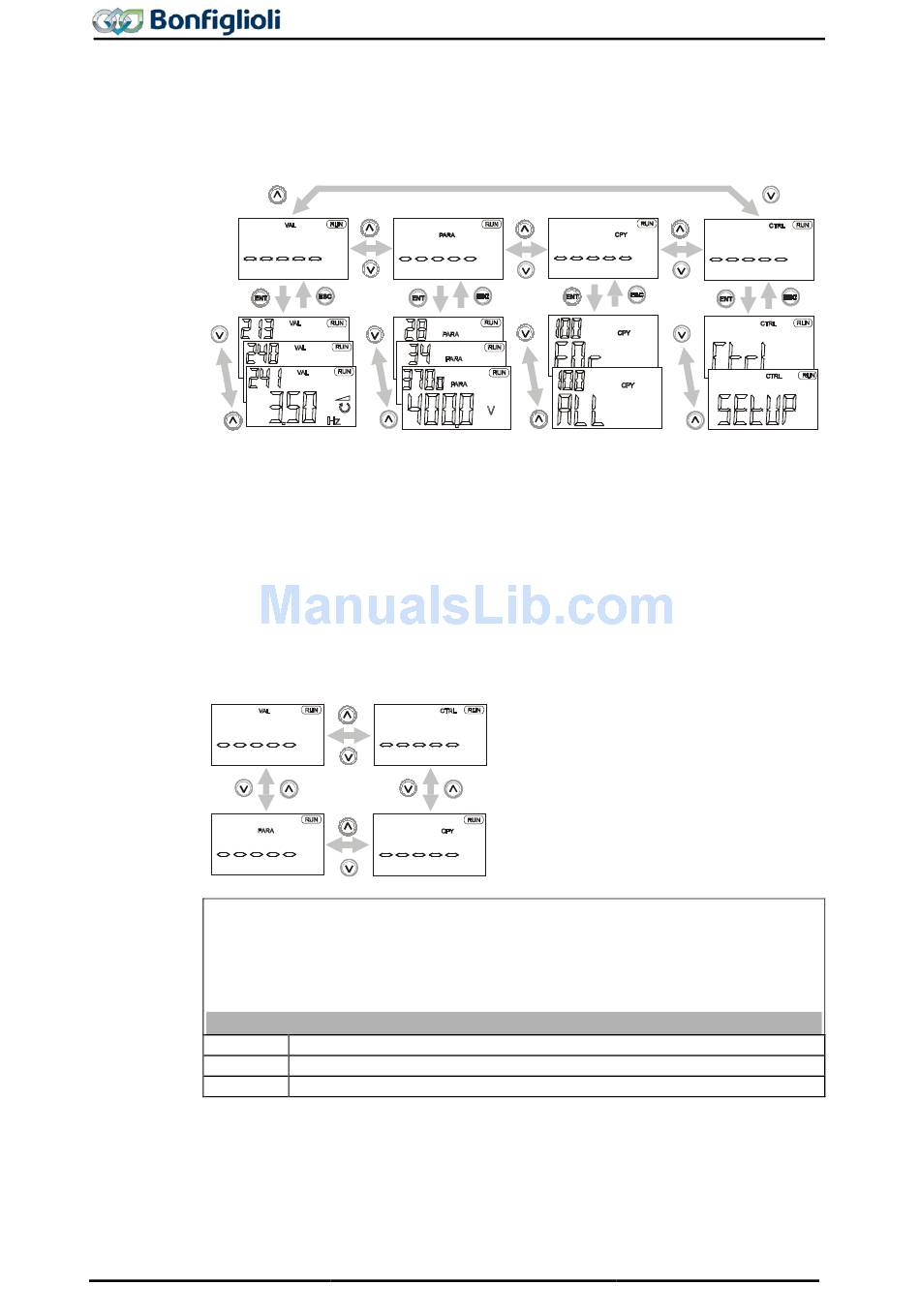

The menu structure of the control unit is arranged as shown in the following illustra-
tion. Use the arrow keys as well as ESC and ENT to navigate through the menu. The
software contains the full set of information and enables a flexible use of the parame-
ter setting and control options.
7.2

Main Menu

The various parameters and information of the frequency inverter can be displayed
by means of the control unit. The different functions and parameters are grouped
together in four menu branches. From any point in the menu structure you can re-
turn to the main menu by pressing the ESC key either continuously or repeatedly.
Note:
Use the arrow keys to select the required menu branch. The selected menu branch is
displayed (flashing).
Select the menu branch by pressing the ENT key. The first parameter or the first
function in the selected menu branch will be displayed.
If you press the ESC key you will return to the main menu of the control unit.
▲ ▼
ENT
ESC
88
In the following description of the key functions, a plus (+) between the
key symbols indicates that the keys have to be pressed at the same time.
A comma (,) between the key symbols indicates that the keys have to be
pressed one after the other.
Navigate through the menu structure and select a menu branch.
Open the selected menu branch.
Cancel the current menu branch and return to the main menu.
Operating Instructions ACU
Menu branch VAL
Display of actual values
Menu branch PARA
Display and edit parameters
Menu branch CPY
Copy parameters
Menu branch CTRL
Select control and test functions
Keys
