3.4

Control inputs and outputs

NOTE
Switch off power supply before connecting or disconnecting the control inputs and outputs. Other-
wise, components may be damaged.
• The unit may only be connected with the power supply switched off.
Verify safe isolation from power supply.
•
3.4.1

Control terminals

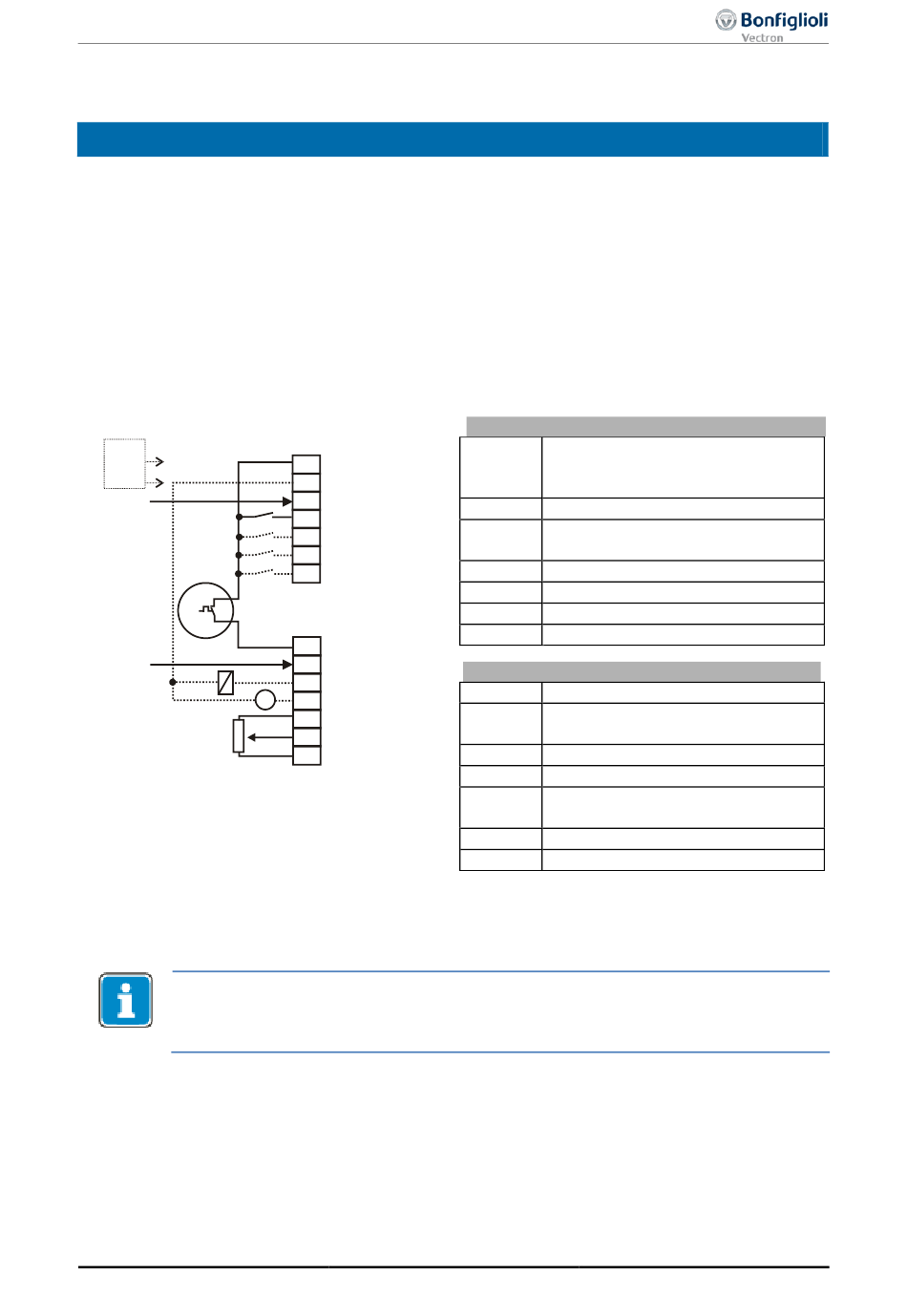

The wiring diagram describes the default assignment of control terminals and functions. According to
the requirements of the application, other functions can be assigned to the control terminals.
Without encoder:
24 V
ext.
STOA
M
STOB
-
+
-
With encoder:
A reference pulse sensor can be evaluated with the digital input S6IND of the basic unit.
In use of a speed sensor is required an additional extension module EM-xx.
Regarding the terminal assignment see the
module.
11/13
X210A
1 +20 V/180 mA
2 GND 20 V
3
S1IND
4 S2IND
5
S3IND
6
S4IND
7
S5IND
X210B
1 S6IND
S7IND
2
S1OUT
3
+
MFO1A
V 4
+10 V/4 mA
5
6 MFI1A
GND 10 V
7
ACU
Spindle Applications
Control terminal X210A
X210A.1 Voltage output +20 V or input for
external power supply DC 24 V
±10%
X210A.2 GND 20 V/ GND 24 V (ext.)
X210A.3 Digital input STOA (1st shut-down
path of STO safety function)
X210A.4 Start of clockwise operation
X210A.5 Start of anticlockwise operation
X210A.6 Data Set Change-Over 1
X210A.7 Data Set Change-Over 2
Control terminal X210B
X210B.1 Motor thermal contact
Digital Input STOB (2nd shut-down
X210B.2
path of STO safety function)
X210B.3 Run signal
X210B.4 Analog signal of actual frequency
X210B.5 Supply voltage +10 V for reference
value potentiometer
X210B.6 Reference speed 0 ...+10 V
X210B.7 Ground 10 V
operating instruction
of the concerned
