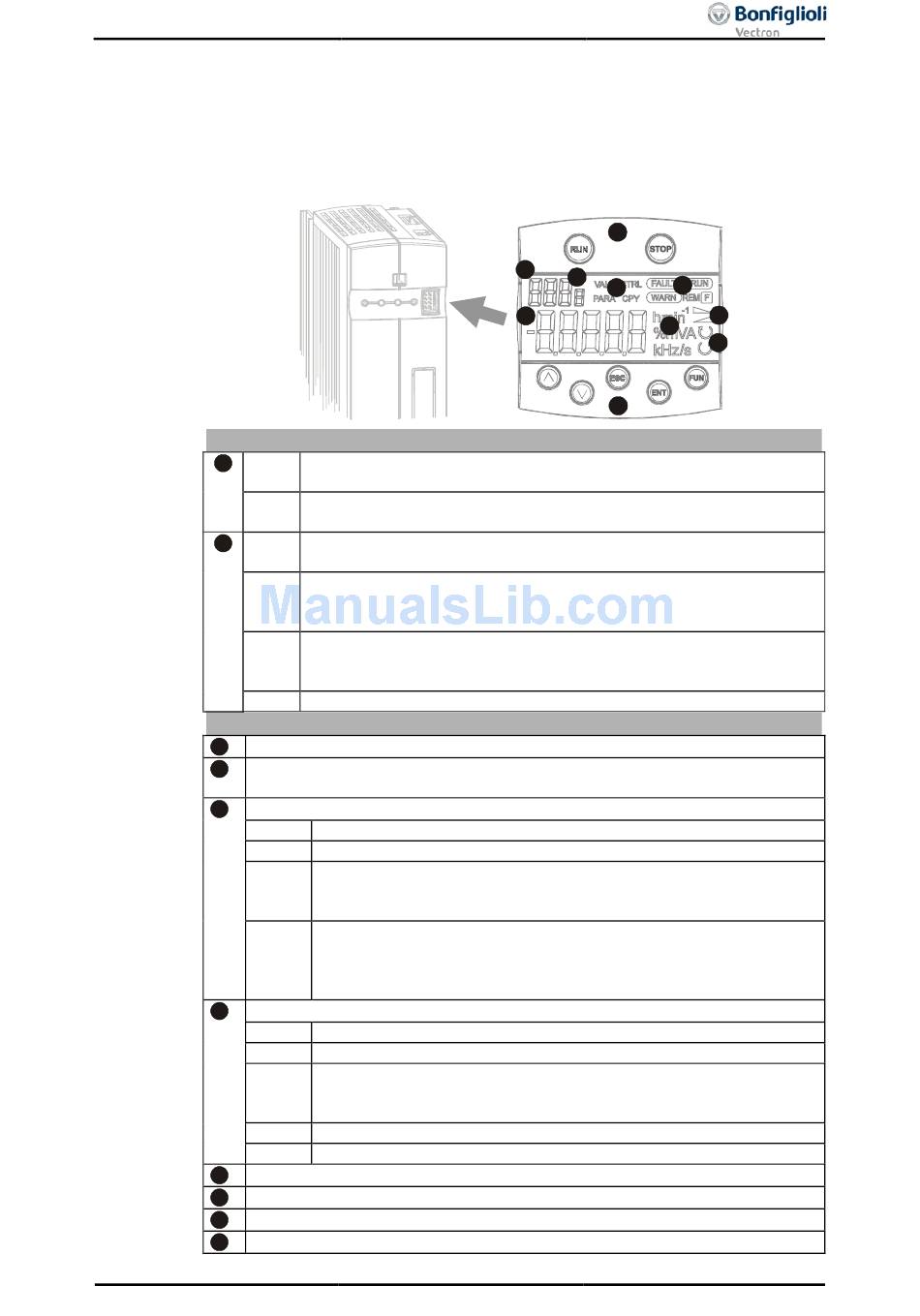

7 Control Unit KP500

The optional KP500 control unit is a practical tool for controlling the frequency invert-
er and setting and displaying the frequency inverter parameters.
The control unit is not absolutely necessary for the operation of the frequency invert-
er and can be plugged on when required.
RUN
A
STOP
▲ ▼ Used for navigating in the menu structure and selecting parameters.
J
ENT
ESC
FUN
Three-digit 7-segment display to show the parameter number.
B
One-digit 7-segment display for display of the active data record, direction of
C
rotation etc.
Display of the selected menu branch:
D
VAL
PARA
CTRL
CPY
Status and operating messages:
E
WARN
FAULT
RUN
REM
F
Five-digit 7-segment display for display of parameter value and sign.
F
Physical unit of the parameter value displayed.
G
Active acceleration or deceleration ramp.
H
Current direction of rotation of the drive.
I
06/13
Used for starting the drive and opening the CTRL menu.
Press the RUN key to open the motor potentiometer function.
Used for opening the CTRL menu, stopping the drive and acknowledg-
ing faults.
Increasing/decreasing of parameter values.
Used for opening parameters or switching to another menu within the
menu structure.
Confirmation of the selected function or the set parameter.
Used for aborting parameters or switching back to the previous menu
within the menu structure. Canceling the function or resetting the pa-
rameter value.
Used for switching over the key function, access to special functions.
Display actual values.
Select parameters and adjust parameter values.
Select a function for adjustment and/or display via the operating unit:
SEtUP guided commissioning.
CtrL motor potentiometer and jog function.
Copy parameters via the control unit:
ALL All the parameter values are copied.
Act Active parameter values are copied only.
FOr Control unit memory is formatted and deleted.
Warning about a critical operating behavior.
Message indicating that the unit was switched off due to a fault.
Flashing: signals readiness for operation.
Lights up: signals that the unit is operating and the output stage is
enabled.
Active remote control via interface connection.
Function switch-over with the FUN key.
Operating Instructions ACU
A
B
C
D
F
J
Keys
Display
E
H
G
I
