7.3

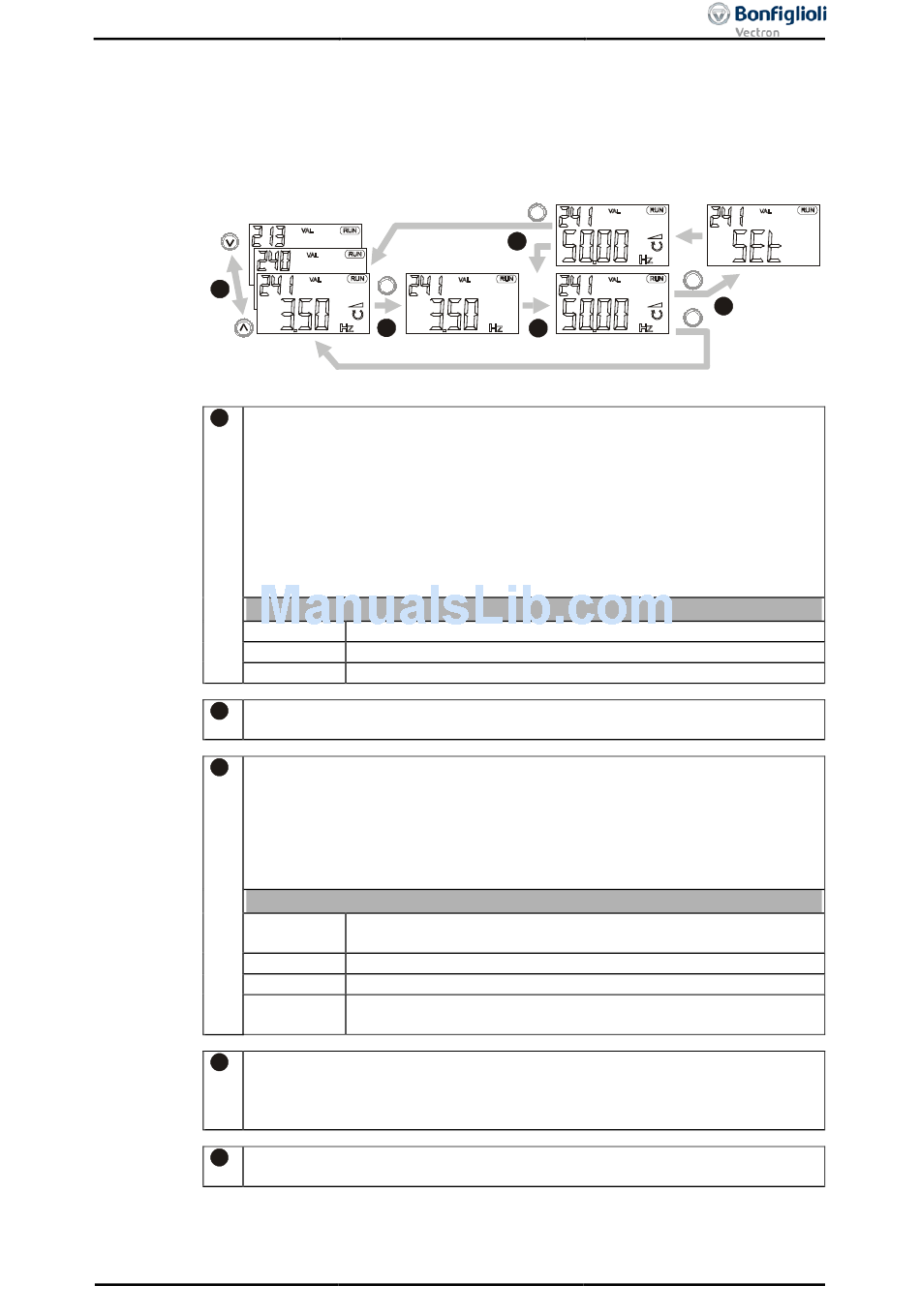

Actual Value Menu (VAL)

In the VAL menu branch, the control unit displays a variety of actual values, depend-
ing on the configuration selected and the options installed. The parameters and basic
software functions linked to the corresponding actual value are documented in the
operating instructions.
A
Use the arrow keys to select the required number from the actual values dis-
A
played in numerical order.
If the highest parameter number is achieved, actuating the ▲-key displays the
lowest parameter number.
If the lowest parameter number is achieved, actuating the ▼-key displays the
highest parameter number.
In the current data set, the data set related actual value parameters are dis-
played, including the corresponding data set number. The seven-segment dis-
play shows data record 0 if the actual values in the four data sets are
▲ + ▼
FUN , ▲
FUN , ▼
Use the ENT key to select the actual value. The parameter is displayed includ-
B
ing its current value, unit and the active data set.
During commissioning, operation and error analysis, it is possible to monitor
C
each actual value parameter specifically.
Some of the actual value parameters are arranged in the four available data
sets. If the parameter values in the four data records are identical, the actual
value is displayed in data record 0. If the actual values in the four data sets are
different, diFF is displayed in data set 0.
▲ , ▼
FUN , ▲
FUN , ▼
FUN , ENT
Use the ENT key to save the selected actual value as a parameter displayed at
D
switch-on. The message SEt (with parameter number) is displayed for a short
time. When the frequency inverter is switched on the next time, this actual
value will be displayed automatically.
After saving the parameter, you can monitor and display the value again. Use
E
the ESC key to switch to the parameter selection of the VAL menu branch.
06/13
E
ENT
B
Keys
Display the actual value parameter upon switch-on.
Display last actual value parameter (highest number).
Display first actual value parameter (lowest number).
Keys
Switch to another of the data set in the case of related actual
values.
Determine minimum value and display it permanently.
Determine and display minimum actual value permanently.
Display of mean value of the actual value during the
monitoring period.
Operating Instructions ACU
ESC
ENT
ESC
C
D
identical.
