3 Scope of Supply

Thanks to the modular hardware components, the frequency inverters can be inte-
grated in the automation concept easily. The scope of delivery described can be sup-
plemented by optional components and adapted to the customer-specific require-
ments. The plug-in type connection terminals enable a safe function and quick and
easy assembly.

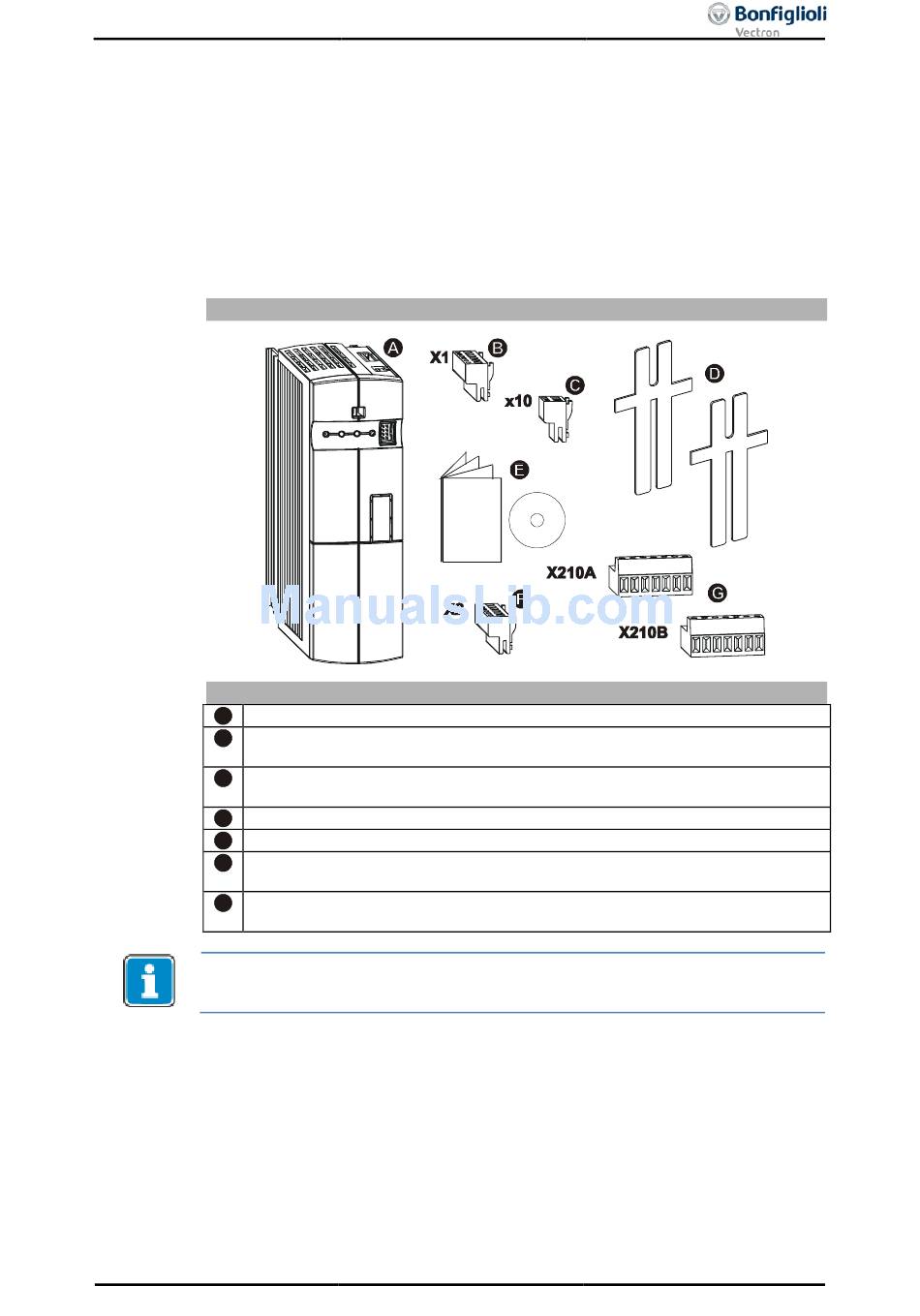

3.1

ACU 201 (up to 3.0 kW) and 401 (up to 4.0 kW)

Frequency inverter
A
Terminal strip X1 (Phoenix ZEC 1,5/ST7,5)
B
Plug-in terminals for mains connection and DC linking
Terminal strip X10 (Phoenix ZEC 1.5/3ST5.0)
C
Plug-in terminals for the relay output
Standard fixtures for vertical assembly
D
Brief Instructions and Operating Instructions on CD ROM
E
Terminal strip X2 (Phoenix ZEC 1,5/ST7,5)
F
Plug-in terminal for brake resistor and motor connection
Control terminals X210A / X210B (Wieland DST85 / RM3.5)
G
Plug-in terminal for connection of the control signals
Please check incoming goods for quality, quantity and nature without delay. Obvious
defects such as exterior damage of the packing and/or the unit must be notified to the
sender within seven days for insurance reasons.
