6.3

Optional Components

Thanks to the modular hardware components, the frequency inverters can be inte-
grated in the automation concept easily. The standard and optional modules are rec-
ognized during the initialization, and the controller functionality is adjusted automati-
cally. For the information required for installation and handling of the optional mod-
ules, refer to the corresponding documentation.
WARNING
The hardware modules at slots B and C may only be assembled and disassembled
after the frequency inverter has been disconnected safely from power supply. Wait
for some minutes until the DC link capacitors have discharged before starting the
work.
The unit may only be connected with the power supply switched off.
Make sure that the frequency inverter is discharged.
B
C
CAUTION
If two optional components with CAN-Protocol controller are installed, the system bus
interface in the EM expansion module is deactivated!
06/13

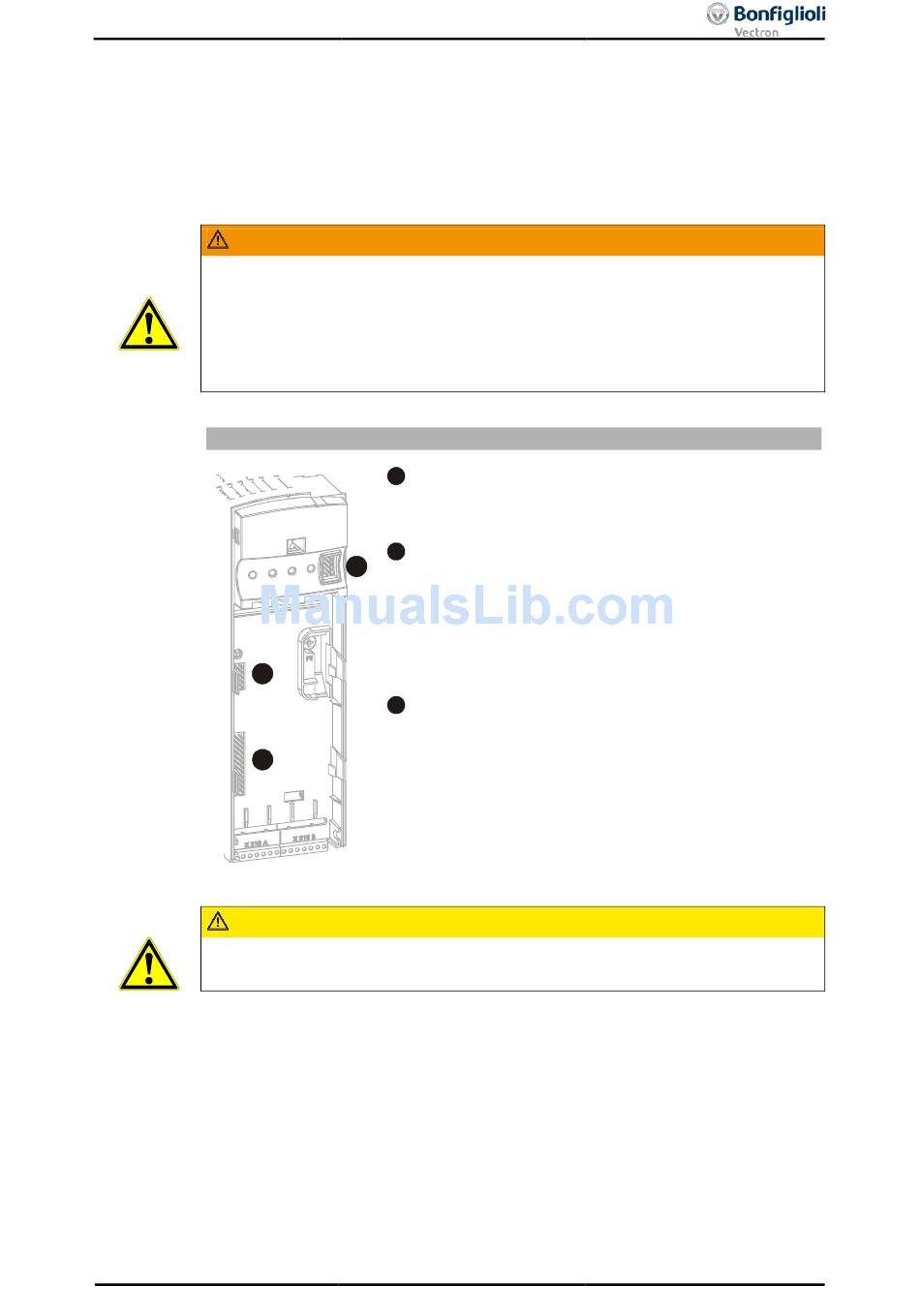

Hardware modules
Control Unit KP500
A
Connection of the optional control unit KP500 or an interface
adapter KP232.
Communication module CM
B
A
Plug-in section for connection to various communication
protocols:
CM-232: RS232 interface
−
− CM-485: RS485 interface
− CM-PDP: Profibus-DP interface
− CM-CAN: CANopen interface
Expansion module EM
C
Slot for customer-specific adaptation of the control inputs
and outputs to various applications:
EM-ENC: extended speed sensor evaluation
−
EM-RES: resolver evaluation
−
EM-IO: analog and digital inputs and outputs
−
EM-SYS: system bus
−
(system bus in combination with CM-CAN communi-
cation module upon request)
Operating Instructions ACU
53
