BONFIGLIOLI ACTIVE Cube ACU 201-01 Operating Instructions Manual page 65

18.5 kW ... 30 kW
25/ 6-15,00
18.5 kW ... 30 kW
25/ 6-15,00
06/13

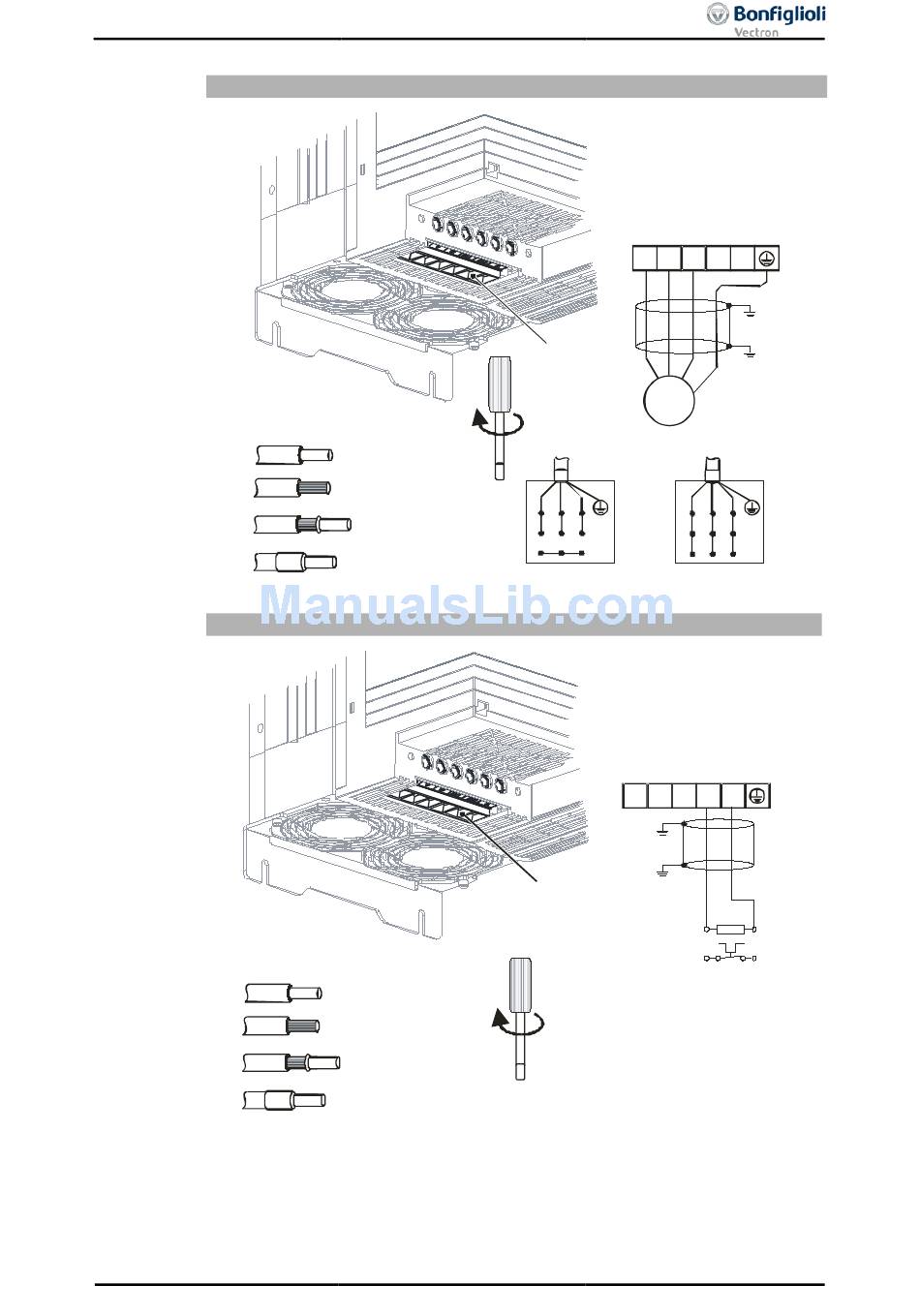

Motor connection ACU 401 (18.5 to 30.0 kW)
2
0.5 ... 35 mm
AWG 20 ... 2
2
0.5 ... 25 mm
AWG 20 ... 4
2
1.00 ... 25 mm
AWG 18 ... 4
2
1.5 ... 25 mm
AWG 16 ... 4
Connection of brake resistor with temperature switch
2
0.5 ... 35 mm
AWG 20 ... 2
2
0.5 ... 25 mm
AWG 20 ... 4
2
1.00 ... 25 mm
AWG 18 ... 4
2
1.5 ... 25 mm
AWG 16 ... 4
Operating Instructions ACU
X2
U
V W
X2
2.5 Nm
M
22.1 lb-in
3~
U V W U
Star connection Delta connection
X2
U V W
X2
Rb1
T1
2.5 Nm
22.1 lb-in
Rb1
Rb2
V W
Rb1 Rb2
R
b
Rb2
T2
65
