Attach Devices to the Server
3. To access the Oracle ILOM command-line interface (CLI) locally using the
management port, connect a serial null modem cable to the RJ-45 serial port
labeled SER MGT.
See "Back Panel Connector Locations" on page

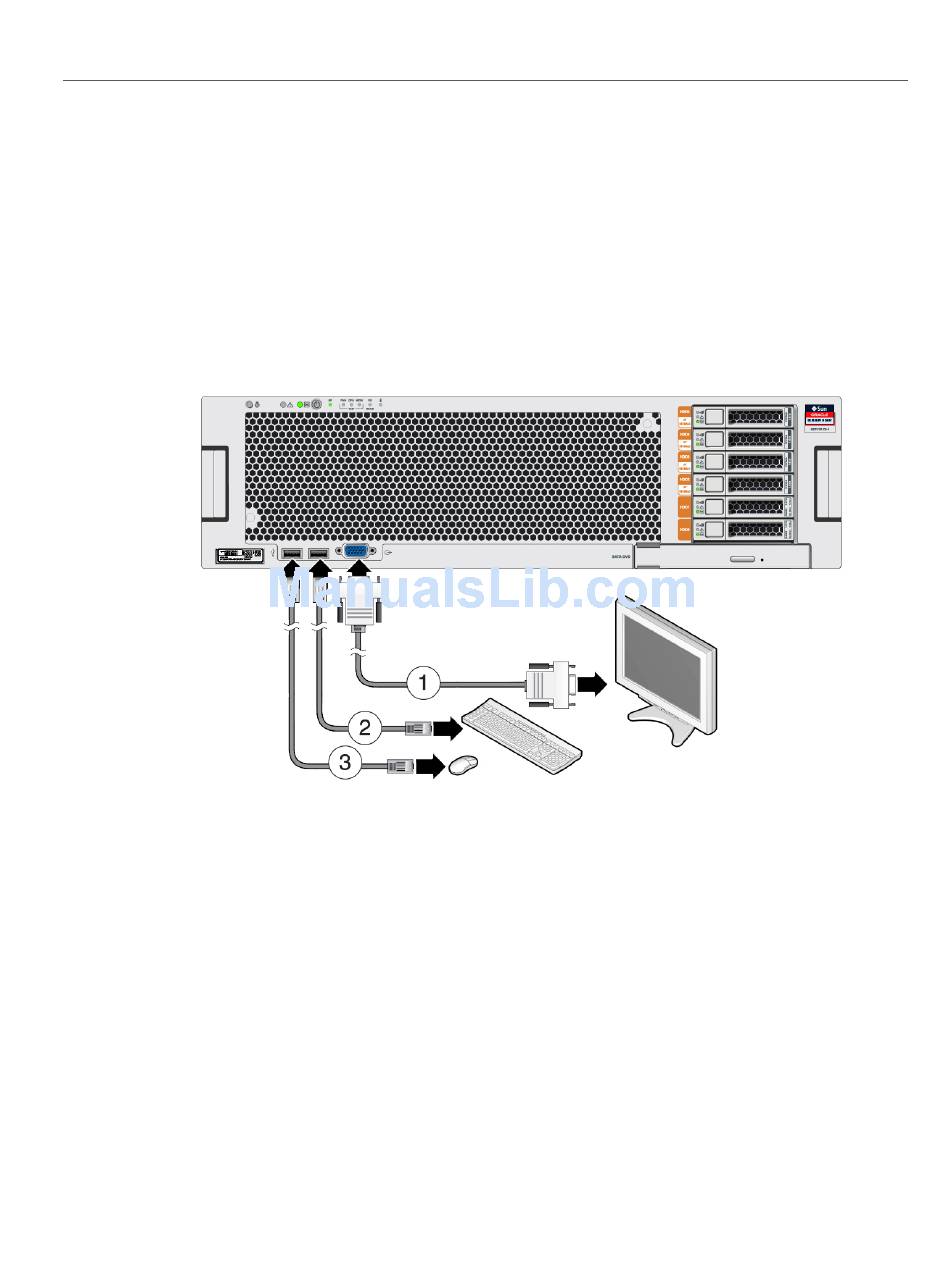

4. To interact with the system console locally, connect a monitor [1], keyboard [2]
and mouse [3] to the server front panel connectors as shown in the illustration
below.

Back Panel Connector Locations

The following illustration shows and describes the locations of the back panel connectors. Use
this information to set up the server, so you can access diagnostic tools and manage the server
during service.
