Replace the SAS 12 Gb/s Internal HBA (FRU)
Removing the card from the slot allows easy access to the connected cables. For details on
removing a card, see
"Remove a PCIe Card" on page
161.
3.

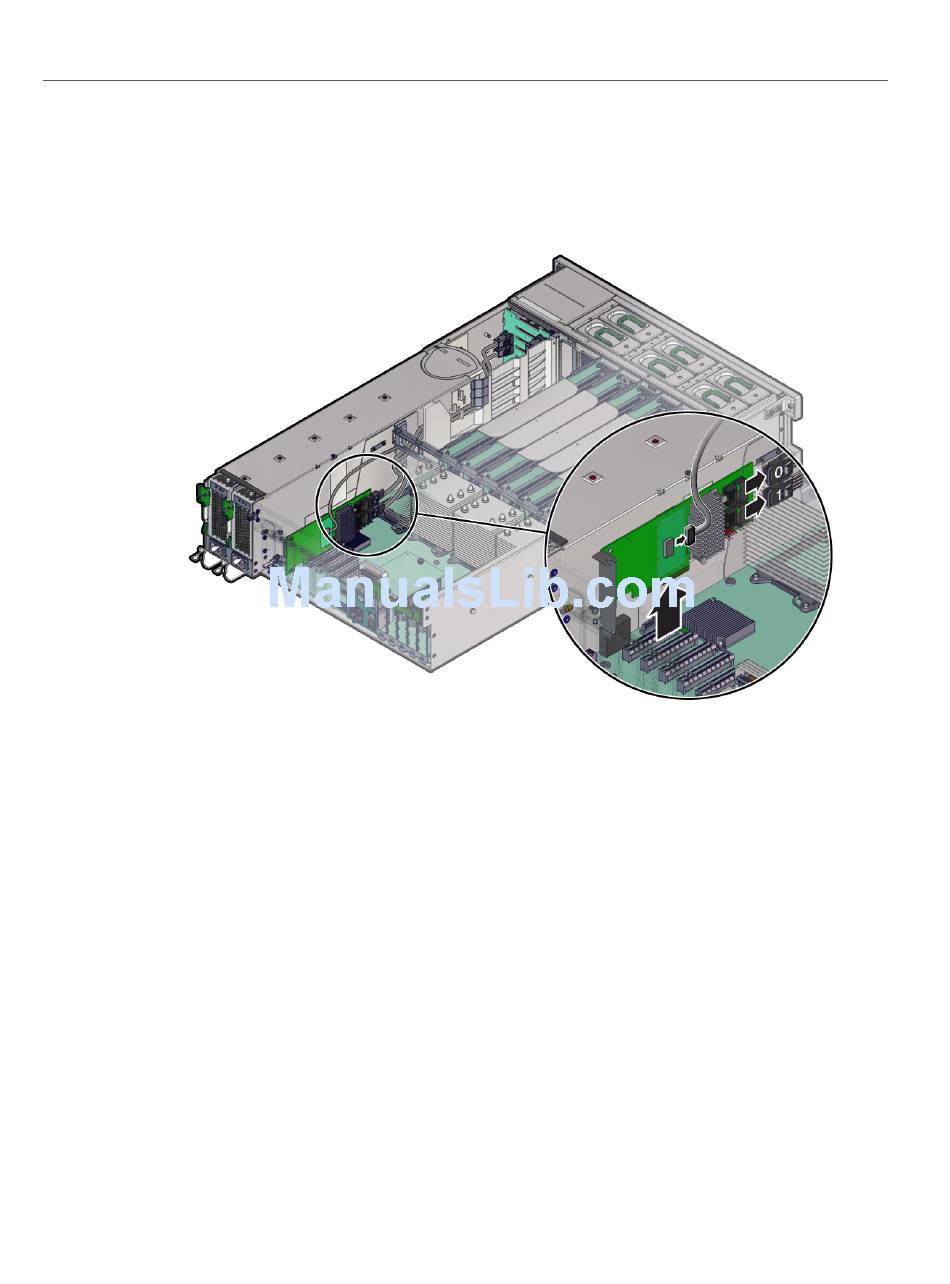

To install the replacement card, connect the cables to the replacement HBA card
and install the card in PCIe slot 2.
The HBA card has two SAS cables (the white labeled cable is 0, and the yellow labeled cable is
1) and an ESM cable that need to be connected before installing the card in the slot.
Servicing FRU Components
201
