Replace the Motherboard (FRU)

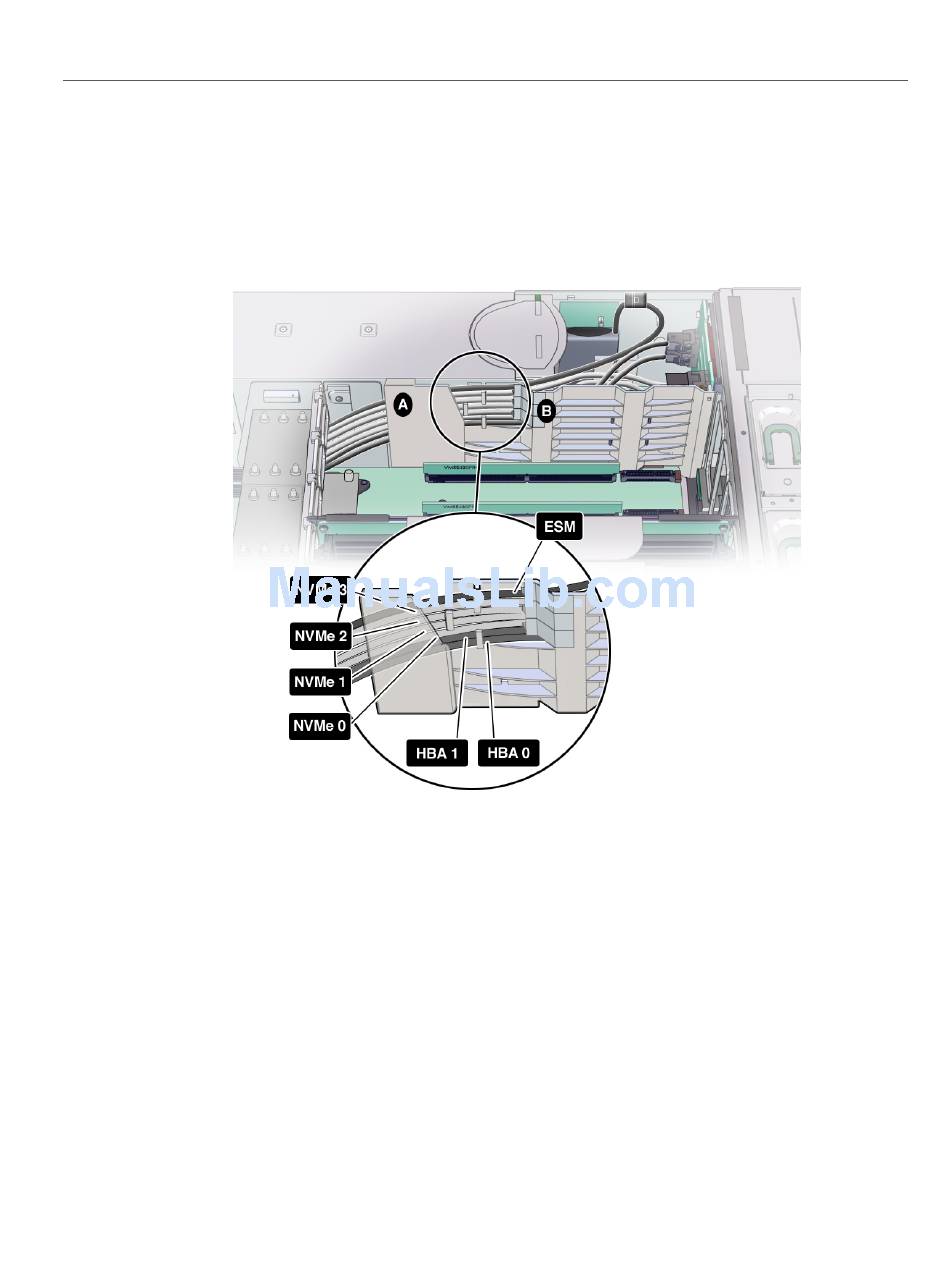

a. Lift the disconnected cables (SAS, NVMe, ESM) out of the slot in the air
divider [B in the illustration below] that routes them into the disk backplane
area.
Then slid each cable up and out of the three air divider cable clips so that
b.
they are loose, and gently place them on the memory riser side of the air
divider.
c. Slide the air divider upwards so its tabs clear the slots in the power supply
side wall.
Lift the air divider out of the system, leaving the cables (SAS, NVMe, ESM).
d.
