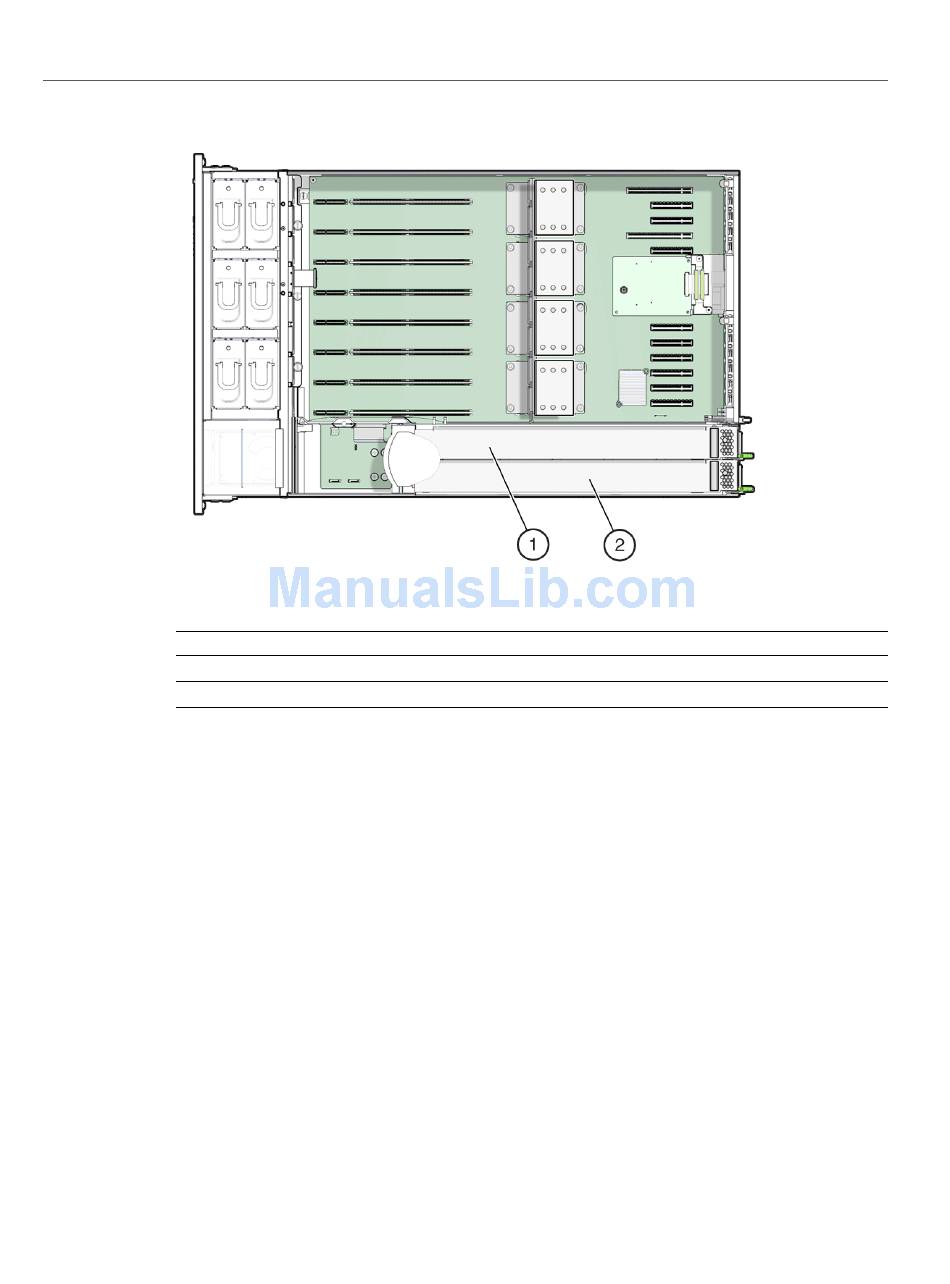

Callout Description
1 PS 1
2 PS 0
PCIe Slot Designations
The eleven PCIe slots are located inside the server at the back. As viewed from the front of the
server, the slots are divided into two groups, a group of six on the right of the SP card and a
group of five on the left of the SP card. The slots are designated from right to left. The six slots
on the right side are designated as PCI-1 to PCI-6. The five slots on the left are designated as
PCI-7 to PCI-11.
