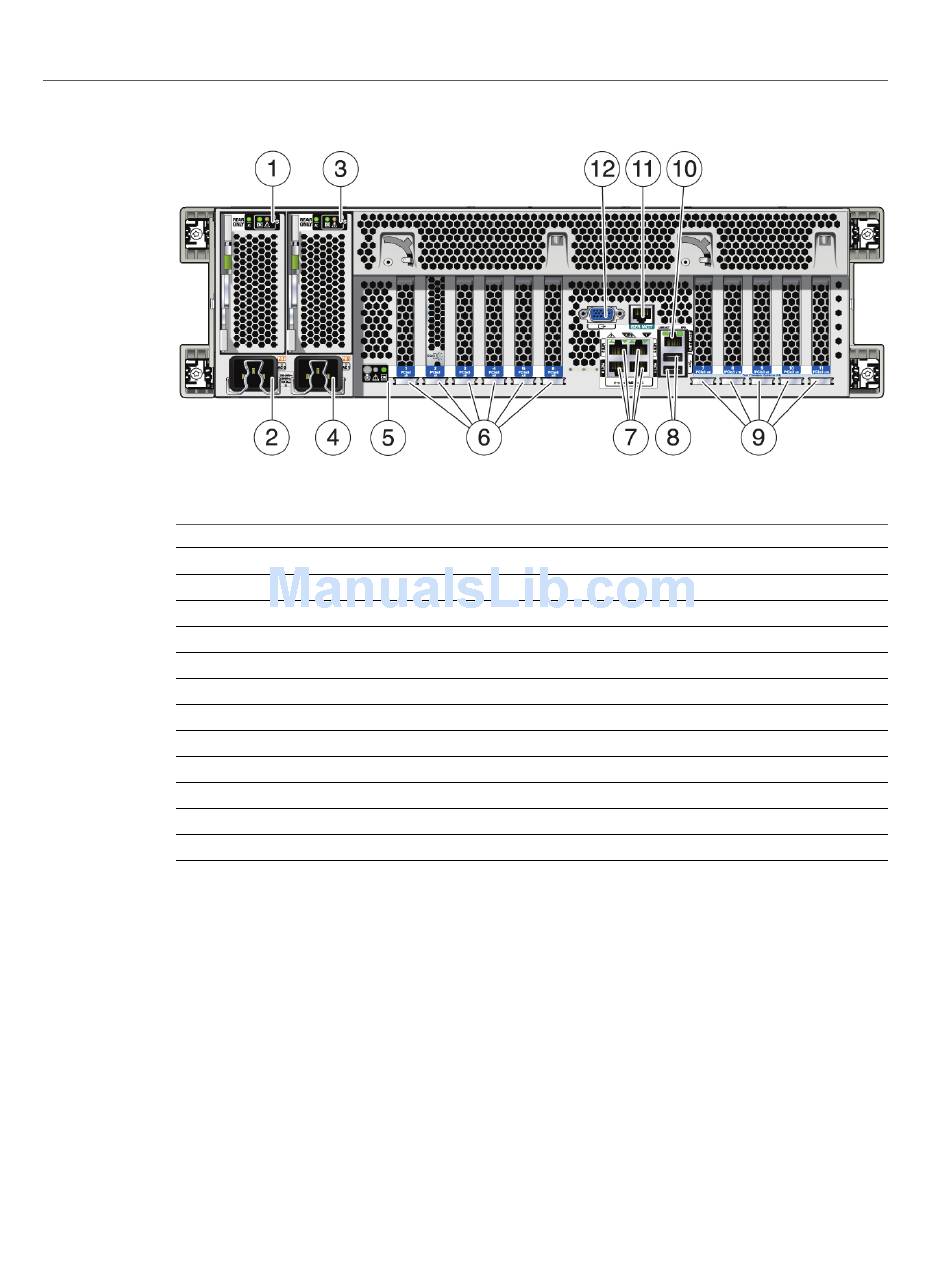

Callout
1
2
3
4
5
6
7
8
9
10
11
12

Server Subsystems Overview

This section provides information about the server subsystems:
"System Block Diagrams" on page 20
■
"Processor Subsystem" on page 22
■
"Memory Subsystem" on page 25
■
"Cooling Subsystem" on page 25
■
Description
Power supply unit (PSU) 0 indicator panel
PSU 0 AC inlet
PSU 1 indicator panel
PSU 1 AC inlet
System status indicator panel
PCIe card slots 1–6
Onboard RJ-45 network (NET) 10 GbE ports: NET0–NET3
USB 2.0 connectors (2)
PCIe card slots 7–11
Service processor (SP) RJ-45 network management (NET MGT) port
Service processor (SP) RJ-45 serial management (SER MGT) port
DB-15 video connector
Server Subsystems Overview
Oracle Server X5-4 Overview 19
