Server Back Panel Features - Oracle X5-4 Service Manual

External Components and Features
Callout
1
2
3
4
5
6
7
8
9
10
11
12–17

Server Back Panel Features

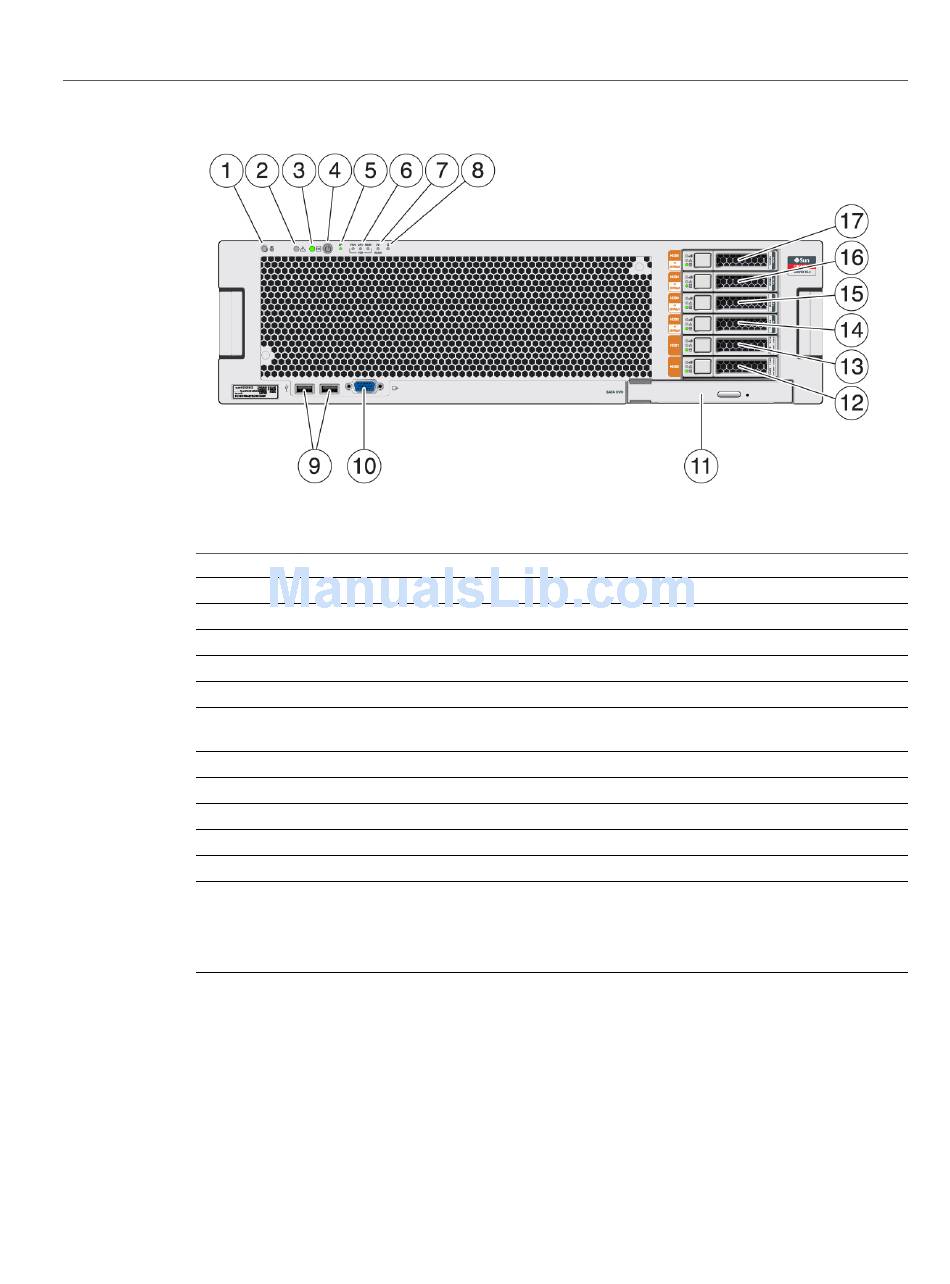

The following illustration shows the server back panel and describes its features.
18 Oracle Server X5-4 Service Manual • December 2015
Description
Locator LED/button: white
Service Action Required indicator: amber
System OK indicator: green
Power button
SP OK indicator: green
Service Action Required indicators (3) for fan module (FAN), Processor (CPU) and Memory:
amber
Power Supply (PS) Fault (Service Action Required) indicator: amber
Over Temperature Warning indicator: amber
USB 2.0 connectors (2)
DB-15 video connector
SATA DVD drive (optional)
Storage drive slots 0–5 (from bottom to top).
Slots 0 and 1 support only SAS drives (mechanical or SSD).
Slots 2–5 support both SAS and NVMe drives.
