b.
(Optional) Release and reposition the CMA to access to the back of the
server.
See
"Release the CMA" on page
c.

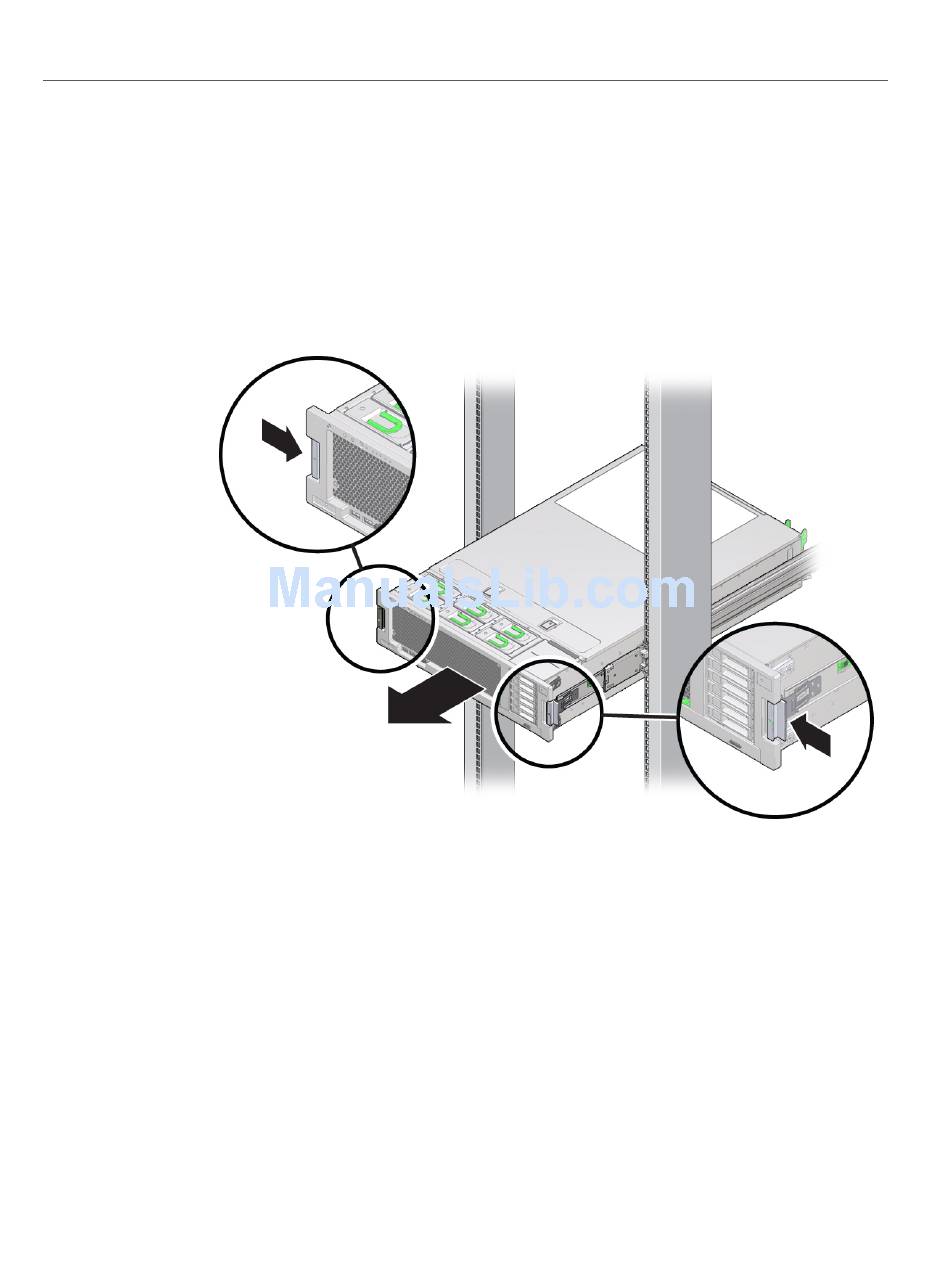

At the front of the server, release the slide rails by pushing the two green
latches inward.
d.
Slowly pull the server forward until both slide rails lock at the fully extended
maintenance position.
The locking action is accompanied by an audible click. The server is now in the
maintenance position and ready for service.
5.
(Optional) Remove the server entirely from the rack.
See
"(Optional) Remove the Server from the Rack" on page
6.
Set up an ESD-safe service location.
98.
99.
Preparing to Service the Server
Prepare the Server for Cold Service
97
