Replace a Faulty DIMM
Use this procedure to replace a faulty DIMM.

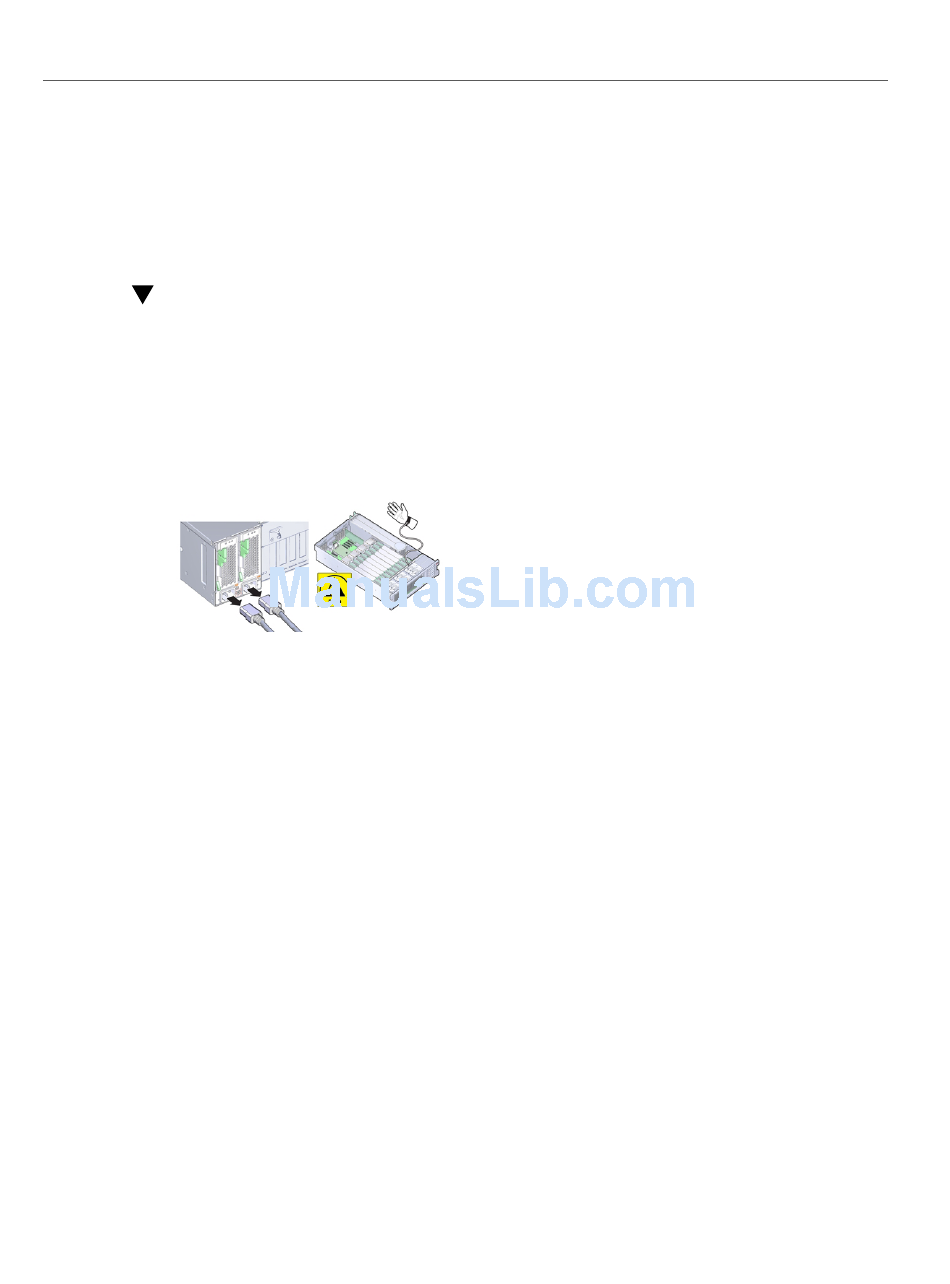

When servicing the components in this section, unplug the AC power cords and use ESD
protection.
For serviceability considerations, see
Before You Begin ■
For DIMM designation information, see
■
For reference information, see
■
1. Identify the MR card containing the faulty DIMM.
See "Locate a Failed Memory Riser Card, DIMM, or CPU" on page
2. Remove the MR card.
See "Remove a Memory Riser Card" on page
3. Identify the faulty DIMM.
See "Identify a Faulty DIMM" on page
4. Remove the faulty DIMM.
See "Remove a DIMM" on page
Install the replacement DIMM.
5.
See "Install a DIMM" on page
