Verify Operation of Slide-Rails and CMA

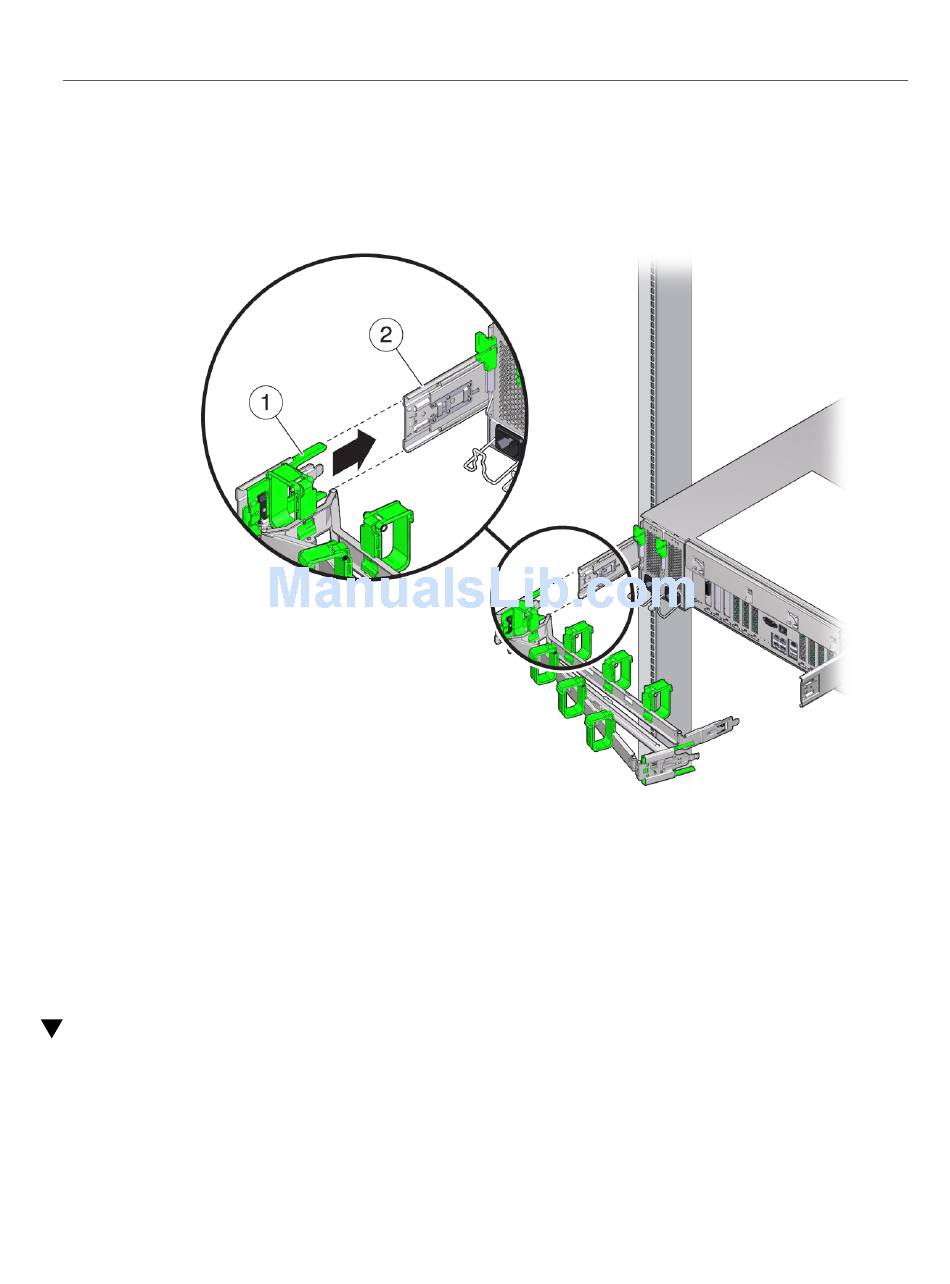

3. Insert the left CMA slide-rail connector [1] into the left slide-rail assembly [2]
until the connector locks into place with an audible click.
4. Install and route cables to your server.
5. If required, re-attach the cable hook and loop straps to the CMA, and press them
into place to secure the cables.
For best results, place three evenly spaced cable straps on the rear-facing side of the CMA and
three cable straps on the side of the CMA nearest the server.
Verify Operation of Slide-Rails and CMA
Use the following procedure to ensure that the slide-rails and CMA are operating correctly.
