Troubleshooting Hardware Faults Using Oracle ILOM

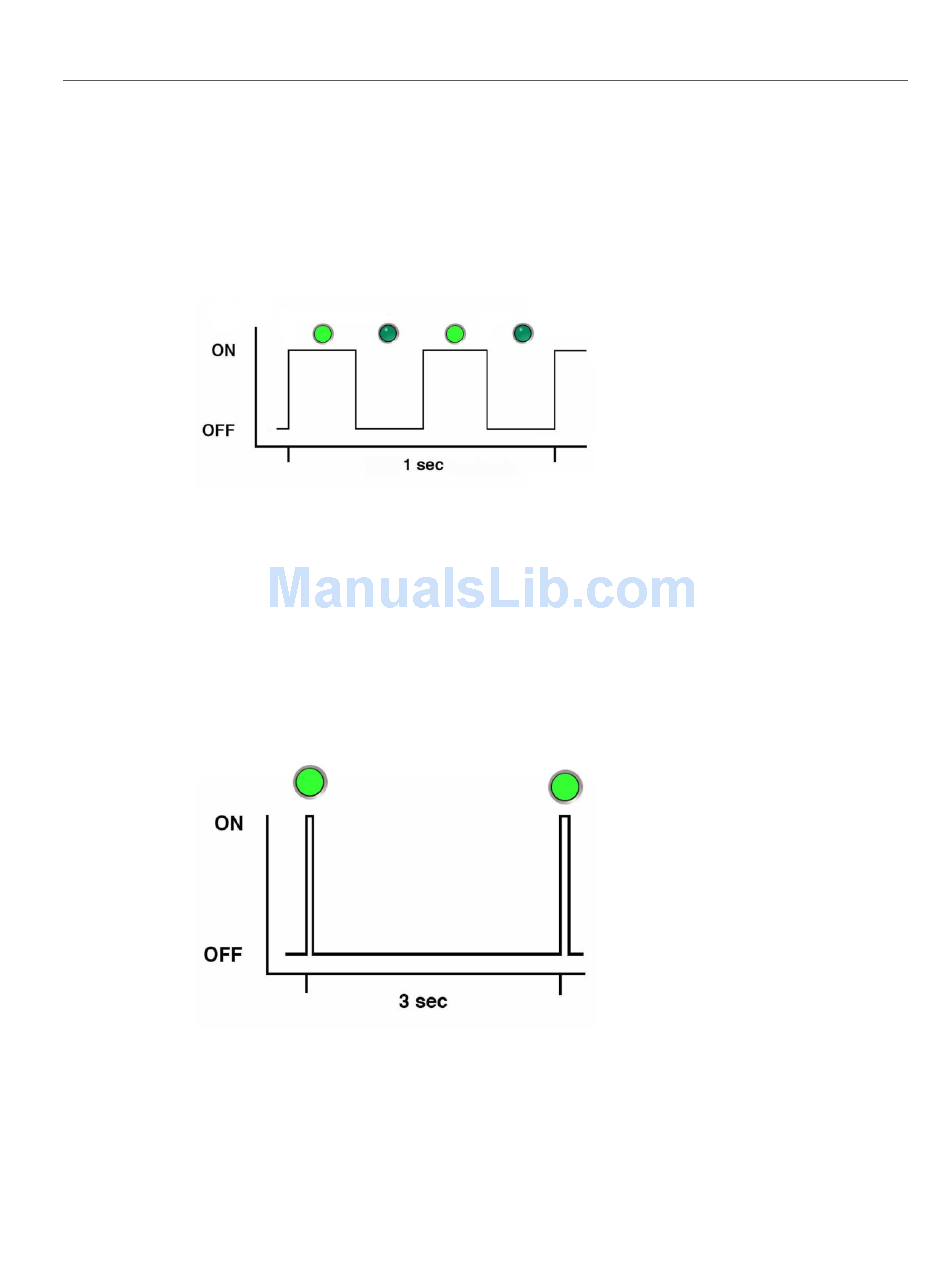

Fast Blink Rate
For the fast blink rate, the indicator repeatedly blinks twice (on, off, on) during a one second
interval (2 Hz). The fast blink rate indicates activity or data transfer.
Single (Standby) Blink Rate
For the single blink rate, the indicator repeatedly flashes once at the beginning of a three second
interval. This indicates a component or system in standby mode. For example, the single blink
rate occurs when a server is in standby power mode or a when hot spare device is waiting to be
used (also used with amber indicators to indicate a predicted fault).
